Details

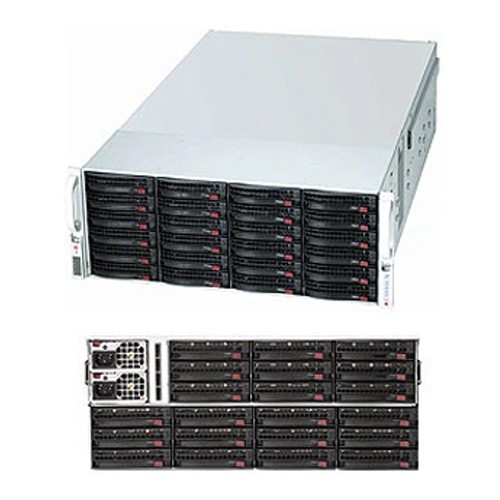

Supermicro 4U SuperChassis CSE-847E16-RJBOD1
|
Product SKU
| |
|---|---|
| CSE-847E16-RJBOD1 | • SuperChassis 847E16-RJBOD1 |
|
Form Factor
| |
|---|---|
| • 4U Storage Chassis support up to 45x HDD | |
|
Dimensions
| |
|---|---|
| Height | • 7" (178 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 27.5" (699 mm) |
| Gross Weight | • 95 lbs (43.09 kg) |
| Available Color | • Black |
|
Drive Bays
| • 45 x 3.5" hot-swap HDD bays for JBOD solution |
|---|
|
Front Panel
| Buttons | • Power On/Off button • System Reset Button |
LEDs |
• 2 Network Activity LEDs • Fan Fail/System Over Heat LED • HDD activity LED • Power Status LED |
|---|
|
System Cooling
| |
|---|---|
| Fans | • 7 x 8cm hot-swap redundant PWM cooling fan(s) |
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 1100/1400W Redundant single output power supply, gold level w/PMbus |
|
| Power Efficiency | • 92% |
| Total Output Power and Input |
• 1100W with Input 100 - 140Vac |
| AC Input Frequency |
• 50-60Hz |
| Dimensions (L x W x H) |
• 336 x 76 x 40 mm |
| Output Type | • Backplanes (gold finger) |
| +12V | • Max: 92A / Min: 0.5A (100Vac - 140Vac) |
| +5Vsb | • Max: 4A / Min: 0A |
| Power Distributor | • PDB-PT847-8824 |
| Certification | • Gold Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
