Details
|
Product SKU
| |
|---|---|

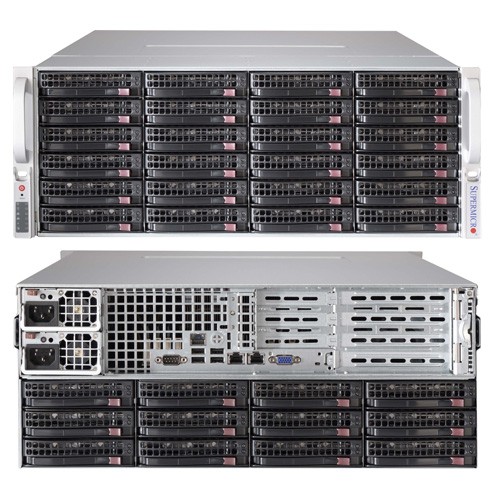

| CSE-847A-R1K28WB | • SuperChassis 847A-R1K28WB |
|
Form Factor
| |
|---|---|
| • 4U chassis for motherboard support size of Proprietary 12.3" x 13" , E-ATX | |
|
Processor Support
| |
|---|---|
| • Dual and Single Intel® Xeon® and AMD processors | |
|
Dimensions
| |
|---|---|
| Height | • 7" (178 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 27.5" (699 mm) |
| Gross Weight | • 91 lbs (41.28 kg) |
| Available Color | • Black |
|
Expansion Slots
| • 4 full-height & full-length expansion slot(s) • 3 low-profile expansion slot(s) |
|---|
|
Drive Bays
| • 36 x 3.5" hot-swap SAS/SATA drive bay with SES2 and Mini-i-Pass (SFF 8087) connectivity |
|---|
|
Backplane
| • 12-port 2U SAS 6Gbps direct-attached backplane, support up to 12x 3.5-inch SAS2/SATA3 HDD/SSD • 24-port 4U SAS 6Gbps direct-attached backplane, support up to 24x 3.5-inch SAS2/SATA3 HDD/SSD |
|---|
|
Front Panel
| Buttons | • Power On/Off button • System Reset Button |
LEDs |
• 2 Network Activity LEDs • Fan Fail/System Over Heat LED • HDD activity LED • Power Status LED • Power Fail LED |
|---|
|
Motherboard (for CSE- 847A-R1K28WB)
| |
|---|---|
• X9SRW-3F |
|
|
System Cooling
| |
|---|---|
| Fans | • 7 x 8cm (7000 RPM) hot-swap PWM cooling fan(s) |
|
System Monitoring
| |
|---|---|
• Chassis intrusion switch |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus |
|
| Power Efficiency | • 95% |
| Total Output Power and Input |
• 1000W with Input 100 - 140Vac |
| AC Input Frequency |
• 50-60Hz |
| Dimensions (L x W x H) |
• 336 x 76 x 40 mm |
| Output Type | • Backplanes (gold finger) |
| +12V | • Max: 83A / Min: 0.5A (100Vac - 140Vac) |
| +5Vsb | • Max: 4A / Min: 0A |
| Power Distributor | • PDB-PT847-8824 |
| Certification | • Platinum Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
