Details

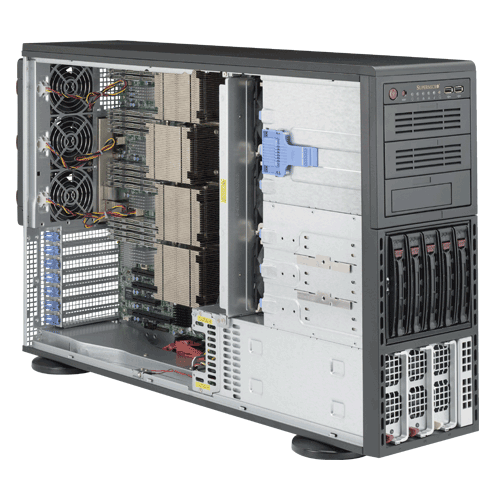

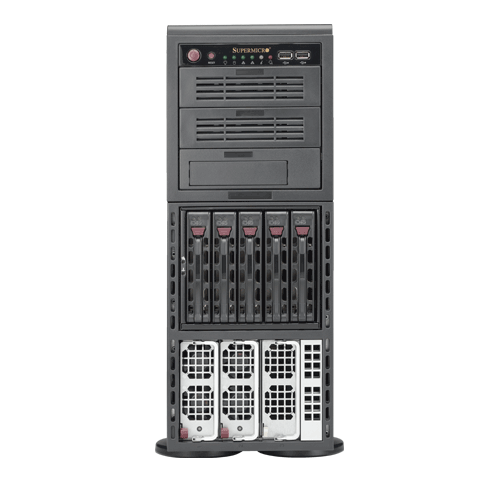

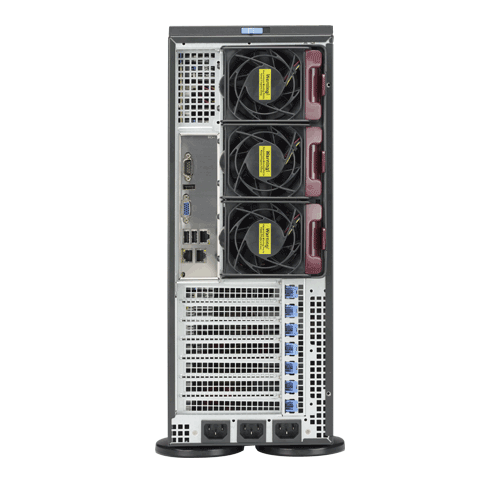

Super X10QBL-4CT Server Motherboard and CSE-748TQ-R1K43B 4U Rackmountable/Tower Chassis.
|
Product SKU
| |
|---|---|
| SYS-8048B-C0R4FT | • SuperServer 8048B-C0R4FT (Black) |
|
Motherboard
| |
|---|---|
| Super X10QBL-4CT | |
|
Processor/Cache
| |
|---|---|
| CPU | • Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP) |
| Cache | • Up to 60 MB |
| System Bus | • QPI up to 9.6 GT/s |
|
System Memory
| |
|---|---|
| Memory Capacity | • 32x 288-pin DDR4 DIMM slots • Supports up to 4TB DDR4 ECC 3DS LRDIMM in 32 DIMM slots |
| Memory Type |
• 1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs |
| DIMM Sizes | • 128GB, 64GB, 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| |
|---|---|
| Chipset | • Intel® C602J chipset |
| SAS | • SAS2 (6Gbps) via LSI® 3008 controller |
| SATA | • SATA2 (3Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Intel® X540 Dual Port 10GBase-T |
| Graphics | • ASPEED 2400 |
|
Input/Output (per node)
| |
|---|---|
| SAS | • 8x SAS2 ports (6Gbps) |
| LAN | • 2x RJ45 10GBase-T ports |
| USB | • 3x USB 2.0 rear ports |
| Serial Port / Header | • 2x Fast UART 16550 ports: 1 rear and 1 header |
| DOM | • 2x DOM (Disk on Module) power connectors |
|
System Bios
| |
|---|---|
| Bios Type | • 128MB SPI Flash EEPROM with AMI® BIOS |
| Bios Features | • Plug and Play (PnP)
|
|
Chassis
| |
|---|---|
| Form Factor | • 4U Rackmountable / Tower |
| Model | • CSE-748TQ-R1K43B |
|
Dimension and Weight
| |
|---|---|
| Height | • 18.2" (462mm) |
| Width | • 7.0" (178mm) |
| Depth | • 28.4" (721mm) |
| Gross Weight | • 86.0 lbs (39.0 kg) |
| Available Color | • Black |
|
Drive Bays
| |
|---|---|
| Hot-Swap | • 5x 3.5" Hot-swap Drive Bays |
|
Expansion Slots
| |
|---|---|
| PCI-Express |
• 2x PCI-E 3.0 x16 Full-heigh slot |
|
Backplane
| |
|---|---|
|
• SAS/SATA HDD Backplane |
|
|
System Cooling
| |
|---|---|
| Fans |
• 3x 9cm Heavy Duty fans with speed control Cooling Fans |
| Shrouds | • 1x Air Shroud (MCP-310-74806-0B) |
|
Power Supply
| |
|---|---|
| Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 | |
| AC Voltage | • 100-240 V, 50-60 Hz, 15 Amp max |
| +12V | • 100 Amp/115 Vac |
| With Power Distributor |
• +5V: 30 Amp |
| Certification | • Platinum Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V |
| FAN | • 4-pin fan headers with tachometer status monitoring |
| Temperature | • Monitoring for CPU and system environment • Thermal Control for 9x fan connectors |
| Other Features | • Chassis intrusion detection |
|
Operating Environment/Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec | • Operating Temperature:
10°C to 35°C (50°F to 95°F) |
