Supermicro 4U Rackmountable Tower SYS-7046A-HR+F

More Views

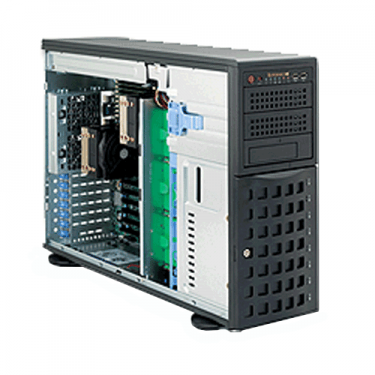

  • Supermicro 4U Rackmountable Tower SYS-7046A-HR+F

Supermicro 4U Rackmountable Tower SYS-7046A-HR+F | SuperServer

Call for price.
SKU:SYS-7046A-HR+F

Quick Overview:

Key Features:
• Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
• 288GB** DDR3 1333/ 1066/ 800MHz ECC Registered DIMM / 48GB
  Unbuffered DIMM
• 2 (x16) PCI-E 2.0, 4 (x8) PCI-E 2.0 (one in x 16 slot), 1(x4) PCI-E slot
• Intel® 82576 Dual-port Gigabit Ethernet Controller
• 8x 3.5" Hot-swap Drives Trays 6x SATA Hard Drives Supported
• 1400W Redundant Power Supplies
• Tower or Rackmount
• Integrated IPMI 2.0 with KVM and Dedicated LAN


Details

Superworkstation SYS-7046A-HR+F Rackmountable/Tower

Supermicro 7046A-HR+F 4U Rackmountable/Tower with 1400W Redundant Power Supplies Gold CertifiedIntel® 5520 (Tylersburg) chipset support 8x Hot-swap Drive Bays and Supports
up to 6x SATA Hard Drives using Supermicro Super X8DAH+-F Server Motherboard and CSE-745TQ-R1400B 4U Rackmountable Tower Chassis.
Product SKU
SYS-7046A-HR+F • SuperServer 7046A-HR+F (Black)
Motherboard
        Super X8DAH+-F
Processor/Cache
CPU • Dual 1366-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Intel® Xeon®Processor 5600 Series (Westmere)
• Intel® Xeon®Processor 5500 Series (Nehalem-EP)
QPI • up to 6.4 GT/s
System Memory
Memory Capacity • 18x 240-pin DIMM slots
• Supports up to 288GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
• Supports up to 48GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
• Memory Mirroring supported
Memory Type

• 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
Note This board does not support LRDIMM memory.
On-Board Devices
Chipset • Intel® 5520 (Tylersburg) chipset
• ICH10R +2x IOH-36D
SATA • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1
• RAID 0, 1, 5, 10 support
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC
Network Controller

• Intel® 82576 Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT 3 support for fast, scaleable, and reliable networking
• VMDq support for better performance of virtualization
• 1x Realtek RTL8201N PHY (dedicated IPMI)
Audio • Realtek ALC883 7.1 HD audio
Graphic • Matrox G200eW
Super I/O • Winbond 83827HF chip
Expansion SLot
PCI-Express • 2 (x16) PCI-E 2.0 slots
• 4 (x8) PCI-E 2.0 slots (1 in x16 slot)
• 1 (x4) PCI-E slot
Input/Output
Serial ATA

• 6 Serial ATA ports
• 6 SATA hard drives supported
IDE

• Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy

• 1 Floppy controller; 1.44 MB
LAN

• 2 RJ45 LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB

• 6 USB rear ports
• 2 USB on-board
• 2 USB internal headers (4 ports)
• Total 12 USB 2.0 Compliant
Audio

• Realtek ALC883 7.1 HD audio
VGA

• 1x VGA port
Keyboard/Mouse

• PS/2 keyboard and mouse ports
Serial Port/Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header (Option)
IEEE 1394a

• 2 IEEE 1394a ports (1x header)




Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit (CSE-PT26)
Model • CSE-745TQ-R1400B
Dimension and Weight
Height • 17.2" (437mm)
Width • 7.0" (178mm)
Depth • 25.5" (648mm)
Gross Weight • 63 lbs (28.6kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power Fail LED
Ports • 2x USB Ports
Drive Bays
Hot-swap

• 8x Hot-swap Drive Bays
• Supports up to 6x SATA Hard Drives
Peripheral Bay(s) • 3x 5.25" Peripheral Drive Bay
SAS/SATA Backplane


• SAS / SATA Backplane w/ Enclosure Management
System Cooling
Fans

• 3x 5000 RPM Hot-Swappable Cooling Fans
• 2x 5000 RPM Hot-Swappable Rear Exhaust Fan
Power Supply
  1400W high-efficiency (1+1) redundant power supply with PMBus
AC Input • 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz
• 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz
DC Output • 1100W: +12V/92A; +5Vsb/4A
• 1400W: +12V/116A; +5Vsb/4A
With Distributor • +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp
Certification • Gold Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator
FAN • Total of eight fan headers supporting up to 8 fans
• Eight 4-pin fan headers
• 8x fans with tachometer status monitoring
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control (4-pin fan only)
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for 8x fan connectors
• PECI
Other Features • Chassis intrusion detection
• Chassis intrusion header
System Bios
Bios Type • 32Mb SPI Flash EEPROM with AMI® BIOS
Bios Features

• Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)br>
