Supermicro 4U Rackmountable Tower SYS-7045B-TR+ | SuperServer

More Views

  • Supermicro 4U Rackmountable Tower SYS-7045B-TR+ | SuperServer

Supermicro 4U Rackmountable Tower SYS-7045B-TR+ | SuperServer

Call for price.
SKU:SYS-7045B-TR+

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 /
   1066 / 1333 MHz FSB
• Up to 64GB 667/533MHz DDR2 ECC FB-DIMM (Fully
   Buffered DIMM)
• 2 (x8) & 1 (x4) PCI-Express, 2x 64-bit 133MHz PCI-X,
   1x 64-bit 100MHz PCI-X
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet
   Controller
• 8x 3.5" Hot-swap Drive Bays
• 800W Redundant Power Supply
• Tower or Rackmount


Details

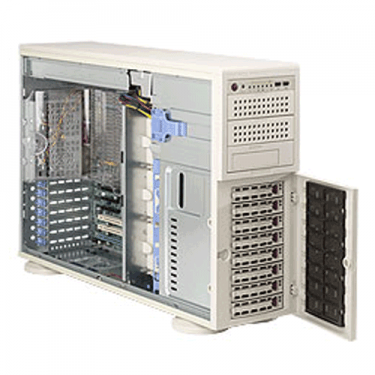

Superworkstation SYS-7045B-TR+ / SYS-7045B-TR+B Rackmountable/Tower

Supermicro SYS-7045B-TR+ / SYS-7045B-TR+B 4U Rackmountable/Tower with 800W Redundant PowerSupply, Intel® 5000P (Blackford) chipset, 8x Hot-swap Drive Bays, Supports
up to 6x SATA Hard Drives using Supermicro Super X7DBE+ Server Motherboard and SC745TQ-R800 4U Rackmountable Tower Chassis.
Product SKU
SYS-7045B-TR+ • SuperServer 7045B-TR+ (Beige)
SYS-7045B-TR+B • SuperServer 7045B-TR+B (Black)
Motherboard
        Super X7DBE+
Processor/Cache
CPU

• Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz

Note: Motherboard PCB revision 2.0 or above is required to support Xeon® 5100 (Woodcrest) processors
System Bus • 1333 / 1066 / 667 MHz system bus
OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Sixteen 240-pin DIMM slots
• Supports up to 64 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
Memory Type

• 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 512 MB, 1GB, 2GB, 4GB
Memory Voltage • 1.8 V only
• 1.5V(AMB)
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® 5000P (Blackford) chipset
• MCH + PXH + ESB2
SATA

• Intel ESB2 SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• 200-pin IPMI slot (SIMLP)
• (Optional: AOC-SIMLP-B(+))
• (Optional: AOC-SIMLP-3(+)) with 3rd LAN support
Network Controllers

• Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics

• ATI ES1000 controller with 16 MB of video memory
Super I/O

• Winbond 83627HG chip
Expansion SLot
PCI-Express • 2 (x8) PCI-E slots
• 1 (x4) PCI-E (using x8) slot
PCI-X • 2x 64-bit 133MHz PCI-X (3.3V) slots
• 1x 64-bit 100MHz PCI-X (3.3V) slot
Input/Output
Serial ATA

• Six Serial ATA ports
• 1 (x4) PCI-E (using x8) slot
IDE

• Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
• Compact Flash (40-pin connector, IDE 1, single channel) slot
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100

LAN

• 2x RJ45 LAN ports
USB

• 2x USB rear ports
• 3x USB internal headers
• Total 5 USB 2.0 Compliant / 1.1 Compliant
VGA

• 1x VGA Port
Keyboard/Mouse

• PS/2 keyboard and mouse ports
Serial Port/Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header
Parallel Port

• 1 ECP / EEP parallel port












Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit (CSE-PT26)
Model • SC745TQ-R800
Dimension and Weight
Height • 17.2" (437mm)
Width • 7.0" (178mm)
Depth • 25.5" (648mm)
Gross Weight • 63 lbs (28.6kg)
Available Color • Beige / Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power Fail LED
Ports • 2x USB Ports
Drive Bays
Hot-swap

• 8x Hot-swap Drive Bays
• Supports up to 6x SATA Hard Drives
Peripheral Bay(s)
[90oRotatable]		 • 3x 5.25" Peripheral Drive Bay
SATA Backplane


• SATA Backplane w/ Enclosure Management
System Cooling
Fans

• 3x 5000 RPM Hot-Swappable Cooling Fans
• 2x 5000 RPM Hot-Swappable Rear Exhaust Fan
Shroud • 1x Air Shroud
Power Supply and Distributor
  800W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 10-4 Amp
+5V standby • 4.0 Amp
+12V • 66.0 Amp
With Power
Distributor		 • +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +3.3V, +5V, ±12V, +1.2V
• 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN • Total of four 3-pin and four 4-pin fan headers supporting up to 8 fans
• 8x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x fan connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
LED • CPU / System Overheat LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• PCI 2.2
• ACPI 1.0
• USB Keyboard support
• Hardware BIOS Virus protection
Operating Environment / Compliance
RoHS • RoHS Compliant 6/6, Pb Free
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
