Supermicro 4U Rackmountable Tower SYS-7045A-T | SuperServer

More Views

  • Supermicro 4U Rackmountable Tower SYS-7045A-T | SuperServer

Supermicro 4U Rackmountable Tower SYS-7045A-T | SuperServer

Call for price.
SKU:SYS-7045A-T

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 /
   1066 / 1333 MHz FSB
• Up to 32GB 667/533MHz DDR2 ECC FB-DIMM (Fully
   Buffered DIMM)
• 1 (x16) & 1 (x4 in x16) PCI-Express, 2x 64-bit 133/100MHz
   PCI-X, 1x 64-bit 100MHz PCI-X, 1x 32-bit PCI 33MHz
• Intel® (ESB2/Gilgal) 82563 Dual-port Gigabit Ethernet
   Controller
• 6x 3.5" hot-swap SATA Drive Bays
• 645W Low-Noise Power Supply
• Tower or Rackmount
• PWM Fan Speed Control


Details

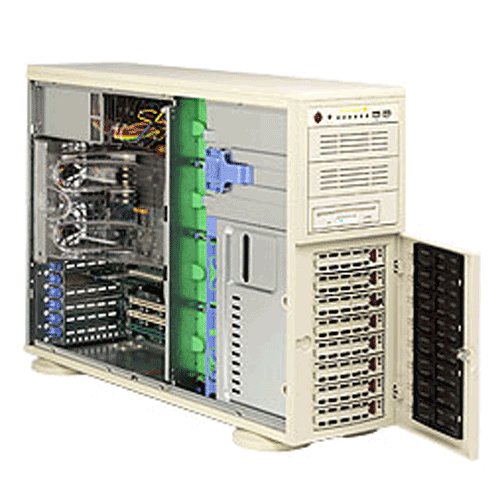

Superworkstation SYS-7045A-T / SYS-7045A-TB Rackmountable/Tower

Supermicro SYS-7045A-T / SYS-7045A-TB 4U Rackmountable/Tower with 645W Low-Noise High Efficiency Power Supply, Intel® 5000X (GreenCreek) chipset, 6x SATA Hot-swap Drives
using Supermicro Super X7DAE Server Motherboard and SC743TQ-645 4U Rackmountable Tower Chassis.
Product SKU
SYS-7045A-T • SuperServer 7045A-T (Beige)
SYS-7045A-TB • SuperServer 7045A-TB (Black)
Motherboard
        Super X7DAE
Processor/Cache
CPU

• Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5300 sequence (Clovertown processor) up to 3.0 GHz
• Dual-Core Intel® Xeon®Processor 5100/5000 sequence (Woodcrest/Dempsey processor) up to 3.73 GHz

Note: Motherboard PCB revision 2.0 or above is required to support Xeon® 5100 (Woodcrest) processors
System Bus • 1333 / 1066 / 667 MHz system bus
OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 240-pin DIMM slots
• Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
Memory Type

• 667 / 533MHz FB-DIMM (Fully Buffered DIMM) DDR2 ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 512 MB, 1GB, 2GB, 4GB
Memory Voltage • 1.8 V only
• 1.5V(AMB)
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® 5000X (GreenCreek) chipset
• MCH + PXH-V + ESB2
SATA

• Intel ESB2 SATAII Controller
• RAID 0, 1, 5, 10 support
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• 200-pin IPMI slot (SIMLP)
• (Optional: AOC-SIMLP-B)
• (Optional: AOC-SIMLP-3) with 3rd LAN support
Network Controllers

• Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking
Super I/O

• Winbond 83627DHG chip
Clock Generator • CK410B chip
Expansion SLot
PCI-Express • 1 (x16) PCI-E slot
• 1 (x4) PCI-E (using x16) slot
PCI-X • 2x 64-bit 133/100MHz PCI-X (3.3V) slots
• 1x 64-bit 100MHz PCI-X (3.3V) slot
PCI • 1x 32-bit 33MHz PCI (5V) slot
Input/Output
Serial ATA

• Six Serial ATA ports
• Six SATA hard drives supported
IDE

• Single EIDE channel supports up to two UDMA IDE devices(IDE-M, IDE-S) including CF card
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
• Compact Flash (40-pin connector, IDE 1, single channel) slot
LAN

• 2x RJ45 LAN ports
USB

• 4x USB rear ports
• 1x USB internal header
• 6 total USB ports, 2.0 Compliant / 1.1 Compliant
Audio

• AC97 Audio
Keyboard/Mouse

• PS/2 keyboard and mouse ports
Serial Port/Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header
Parallel Port

• 1 ECP / EEP parallel port














Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit (CSE-PT26)
Model • SC743S1-645
Dimension and Weight
Height • Tower: 17.2" (437mm) / Rackmount: 7.0" (178mm)
Width • Towre: 7.0" (178mm) / Rackmount: 17.2" (437mm)
Depth • 25.5" (648mm)
Gross Weight • 63 lbs (28.6kg)
Available Color • Beige / Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
Ports • 2x USB Ports
Drive Bays
Hot-swap

• 6x SATA Hot-swap Drives
Peripheral Bay(s)
[90oRotatable]		 • 3x 5.25" Peripheral Drive Bays
SATA Backplane


• SC743 SATA Backplane w/ Enclosure Management
System Cooling
Fans

• 4x 5000 RPM Hot-swappable PWM Cooling Fans
• 1x 4000 RPM Hot-Swappable Rear Exhaust PWM Fan
• 1x Air Shroud
Power Supply
  645W Low-Noise AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ]
AC Voltage • 100 - 240V, 50 - 60Hz, 11 - 5Amp
DC Output • 5V + 3.3V ≤ 160W
+5V • 30.0 Amp
+5V standby • 4.0 Amp
+12V • 46.0 Amp
-12V • 0.6 Amp
+3.3V • 30 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• CPU Core 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN • Total of eight 4-pin fans
• 8x fans with status monitoring
• Status monitor for speed control
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
LED • CPU / System Overheat LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• PCI 2.2
• ACPI 1.0
• PCI-X 1.0
• USB Keyboard support
• Hardware BIOS Virus protection
Operating Environment / Compliance
RoHS • RoHS Compliant 6/6, Pb Free
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
