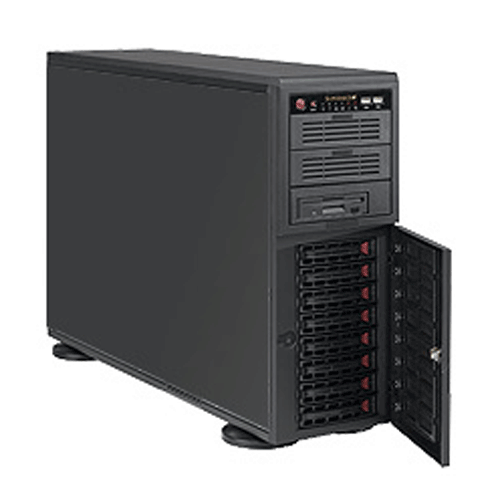

Supermicro 4U Rackmountable Tower SYS-7045A-CTB | SuperServer

More Views

  • Supermicro 4U Rackmountable Tower SYS-7045A-CTB | SuperServer

Supermicro 4U Rackmountable Tower SYS-7045A-CTB | SuperServer

Call for price.
SKU:SYS-7045A-CTB

Quick Overview:

Key Features:
• Whisper Quiet Workstation (28dB) with High-end Graphics Support
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 1333 /
   1066 MHz FSB
• Up to 48GB 667/533MHZ DDR2 ECC Register SDRAM
• 1 (x16) PCI-E , 1 (x4) PCI-E (using x16 slot), 2x PCI-X
   133/100MHz, 2x PCI 33MHz slots
• Intel® Dual 82573V/L Gigabit Ethernet Controller
• 6x 3.5" Hot-swap SATA Drive Bays
• 865W Low-Noise High Efficiency Power Supply
• Tower or Rackmount
• PWM Fan Speed Control


Details

Superworkstation SYS-7045A-CTB Rackmountable/Tower

SupermicroSYS-7045A-CTB 4U Rackmountable/Tower with 865W Low-Noise High Efficiency Power Supply,Intel® 5100 (San Clemente) chipset, 6x SATA Hot-swap Drives using
Supermicro Super X7DCA-i Server Motherboard and SC743TQ-865-SQ 4U Rackmountable Tower Chassis.
Product SKU
SYS-7045A-CTB • SuperServer 7045A-CTB (Black)
Motherboard
        Super X7DCA-i
Processor/Cache
CPU • Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100 sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz
System Bus • 1333 / 1066 MHz system bus
OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Six 240-pin DIMM slots
• Supports up to 48GB 667/533MHz DDR2 ECC Register memory
• Memory must be populated in pairs
Memory Type

• 667/533MHz Register DDR2 ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 512 MB, 1GB, 2GB, 4GB , 8GB**
Memory Voltage • 1.8 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset

• Intel® 5100 (San Clemente) chipset
• Intel® ICH9R + PXH-V
SATA

• Intel ICH9R SB SATAII Controller
• RAID 0, 1, 5, 10 support (Windows only)
• RAID 0, 1, 10 support (Linux)
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• 200-pin IPMI slot (SIMLP)
• (Optional: AOC-SIMLP-B)
• (Optional: AOC-SIMLP-3) with 3rd LAN support

Note: KVM-over-LAN not supported - there is no DVO signal to the IPMI slot
Network Controllers

• Intel® Dual 82573V/L Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking
Audio

• High Definition 7.1 Channel Audio
Super I/O

• Winbond 83627DHG chip
Clock Generator • CK505 chip
Expansion SLot
PCI-Express • 1 (x16) PCI-E slot
• 1 (x4) PCI-E (using x16) slot
PCI-X • 2x 64-bit 133/100MHz PCI-X (3.3V) slots
PCI • 2x 32-bit 33MHz PCI (5V) slots
Input/Output
Serial ATA

• Six Serial ATA ports
• Six SATA hard drives supported
IDE

• Single EIDE channel supports up to two UDMA IDE devices(IDE-M, IDE-S) including CF card
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
LAN

• 2x RJ45 LAN ports
USB

• 4x USB rear ports
• 6x USB internal header
• 10 total USB ports, 2.0 Compliant
Audio

• High Definition 7.1 Channel Audio
• Line-in / Line-out / Microphone Ports
Keyboard/Mouse

• PS/2 keyboard and mouse ports
Serial Port/Header

• 1 Fast UART 16550 serial port
• 1 Hheader
Parallel Port

• 1 ECP / EEP parallel port


































Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit (CSE-PT26)
Model • SC743TQ-865-SQ
Dimension and Weight
Height • 17.2" (437mm)
Width • 7.0" (178mm)
Depth • 25.5" (648mm)
Gross Weight • 63 lbs (28.6kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
Ports • 2x USB Ports
Drive Bays
Hot-swap

• 6x SATA Hot-swap Drives
• 2x Spare Trays
Peripheral Bay(s)
[90oRotatable]		 • 3x 5.25" Peripheral Drive Bays
SATA Backplane


• SC743 SATA Backplane w/ Enclosure Management
System Cooling
Fans

• 2x 8cm Hot-swappable PWM Cooling Fans
• 1x 9cm Hot-Swappable Rear Exhaust PWM Fan
• 2x Active heatsink w/ heatpipe
Power Supply
  865W AC power supply (cooling-redundant) w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 12-6 Amp
+5V standby • 6.5 Amp
+12V • 70 Amp
+5V • 30 Amp
+3.3V • 30 Amp
-12V • 1 Amp
Certification • Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• CPU Core 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN • Eight 4-pin fans
• 8x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x fan connectors
• PSU I2C temperature sensing logic
• PECI
• Thermal Monitor 2 (TM2) support
LED • CPU / System Overheat LED
• Suspend-state indicator LED
• +5V Standby alert LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
• SDDC Support
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• ACPI 1.0 (limited)
• USB Keyboard support
• Hardware BIOS Virus protection
Operating Environment / Compliance
RoHS • RoHS Compliant 6/6, Pb Free
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
