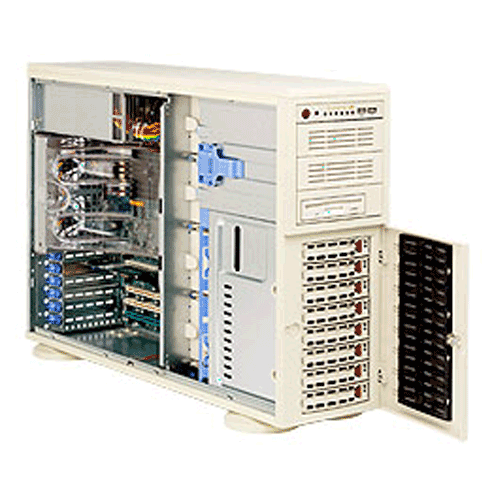

Supermicro Super X6DHT-G Server Motherboard and SC743T-650 4U Rackmountable Tower Chassis.
|
Product SKU
| |
|---|---|
| SYS-7044H-32R | • SuperServer 7044H-32R (Beige) |
| SYS-7044H-32RB | • SuperServer 7044H-32RB (Black) |
|
Motherboard
| |
|---|---|
| Super X6DH3-G2 | |
|
Processor/Cache
| |
|---|---|
| CPU | • Dual 604-pin FC-mPGA4 Sockets |
| System Bus | • 800 MHz system bus |
| OS Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
|
System Memory
| |
|---|---|
| Memory Capacity | • Eight 240-pin DIMM slots • Supports up to 16 GB DDR2 400MHz memory • Dual channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
| Memory Type |
• DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 2GB |
| Memory Voltage | • 1.8V only |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 Single Device Data Correction (SDDC) • Memory Sparing / Mirroring |
|
On-Board Devices
| |
|---|---|
| Chipset | • Intel® E7520 chipset |
| SAS | • Adaptec AIC9410: Adaptec 8-port SAS Controller |
| SATA | • 6300ESB 2-port SATA Controller |
| SAS ZCR | • RAID 0, 1, 5, 10, and JBOD support |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Dual Intel® 82541PI Single-Port Gigabit Controller |
| Graphics | • ATI Rage XL SVGA PCI video controller with 8MB of video memory |
| Super I/O | • Winbond 83627HG chip |
|
Input/Output
| |
|---|---|
| IDE | • Dual EIDE channels support up to four UDMA IDE devices |
| Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB |
| LAN | • 2x RJ45 LAN port |
| USB | • 2x USB rear ports |
| VGA | • 1x VGA Port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Port/Header | • 2 Fast UART 16550 serial ports |
| Parallel Port | • 1 ECP/EEP parallel port |
|
System Bios
| |
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 4U Rackmountable / Tower • Optional Rackmount Kit (CSE-PT26) |
| Model | • SC743T-R760 |
|
Dimension and Weight
| |
|---|---|
| Height | • Tower: 17.2" (437mm) / Rackmount: 7.0" (178mm) |
| Width | • Tower: 7.0" (178mm) / Rackmount: 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 69.5 lbs (31.5kg) |
| Available Color | • Beige / Black |
|
Front Panel
| |
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • Power Fail LED |
| Ports | • 2x USB Ports |
|
Expansion Slots
| |
|---|---|
| PCI-Express |
• 2 (x8) slots |
| PCI-X | • 1x 64-bit 133MHz PCI-X (3.3V) slot • 2x 64-bit 100MHz PCI-X (3.3V) slots |
| PCI | • 1x PCI slot |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 8x 3.5" SAS/SATA Hot-swap Drive Bays |
| Peripheral Bay(s) [90oRotatable] |
• 2x 5.25" Peripheral Drive Bay • 1x 5.25" Bay For Floppy Drive |
|
SAS Backplane
| |
|---|---|
|
• SAS Hard Drive Backplane |
|
|
System Cooling
| |
|---|---|
| Fans |
• 4x 5000 RPM Hot-Swappable Cooling Fans |
| Shroud | • 1x Air Shroud for 1U Chassis |
|
Power Supply
| |
|---|---|
| 760W Triple-Redundant AC power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V ] | |
| AC Voltage | • 100 - 240V, 50-60Hz, 14 Amp Max |
| DC Output | • 5V + 3.3V ≤ 200W |
| +5V | • 36.0 Amp |
| +5V standby | • 3.5 Amp |
| +12V | • 50.0 Amp (combined) |
| -12V | • 1.0 Amp |
| +3.3V | • 36.0 Amp |
|
PC Health Monitoring
| |
|---|---|
| CPU |
• Monitors for CPU Cores, CPU0, CPU1, +3.3V, +5V, ±12V |
| FAN | • Total of four 4-pin fan headers and four 3-pin fan headers • 8x fans with tachometer status monitoring • Low noise fan speed control |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor 2 (TM2) support |
| Other Features | • Chassis intrusion detection
|
