Details

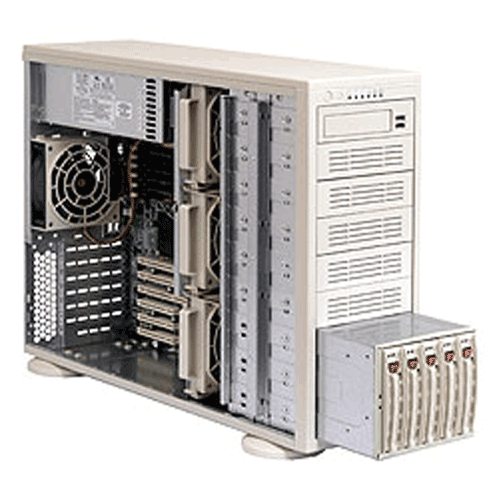

Supermicro Super X6DA8-G2 Server Motherboard and SC942i-R760 Rackmountable Tower Chassis.
|
Product SKU
| |
|---|---|
| SYS-7044A-82R | • SuperServer 7044A-82R (Beige) |
| SYS-7044A-82RB | • SuperServer 7044A-82RB (Black) |
|
Motherboard
| |
|---|---|
| Super X6DA8-G2 | |
|
Processor/Cache
| |
|---|---|
| CPU | • Dual 604-pin FC-mPGA4 Sockets |
| System Bus | • 800 MHz system bus |
|
System Memory
| |
|---|---|
| Memory Capacity | • Eight 240-pin DIMM slots • Supports up to 16 GB DDR2 400MHz memory • Dual channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
| Memory Type |
• DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB |
| Memory Voltage | • 1.8V only |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 Single Device Data Correction (SDDC) |
|
On-Board Devices
| |
|---|---|
| Chipset | • Intel® E7525 chipset |
| SCSI | • Adaptec AIC-7902 Controller |
| RAID | • Support for Zero-Channel RAID |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Intel® 82546GB Dual Port Gigabit Controller |
| Audio | • AC'97 audio CODEC with high quality 6-channel sound |
| Super I/O | • Winbond 83627HF chip |
|
Expansion Slot
| |
|---|---|
| PCI-Express | • 1 (x16) slot • 1 (x4) using (x16 slot) |
| PCI-X | • 1x 64-bit 133MHz PCI-X (3.3V) slot |
| PCI | • 1x 32-bit 33MHz PCI (5V) slot |
|
Input/Output
| |
|---|---|
| IDE | • Dual EIDE channels support up to four UDMA IDE devices |
| Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
| LAN | • 2x RJ45 LAN ports |
| USB | • 4x USB rear ports |
| Audio | • 1x Line In / Line Out / Microphone ports |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Port | • 2 Fast UART 16550 serial ports |
| Parallel Port | • 1 ECP/EEP parallel port
|
|
Chassis
| |
|---|---|
| Form Factor | • 4U Rackmountable / Tower • Optional Rackmount Kit (CSE-PT26) |
| Model | • SC942i-R760 |
|
Dimension and Weight
| |
|---|---|
| Height | • Tower: 17.2" (437mm) / Rackmount: 7.0" (178mm) |
| Width | • Tower: 7.0" (178mm) / Rackmount: 17.2" (437mm) |
| Depth | • 23.8" (605mm) |
| Gross Weight | • 66 lbs (29.9kg) |
| Available Color | • Beige / Black |
|
Front Panel
| |
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • Power Fail LED |
| Ports | • 2x USB Ports (2.0 ready) |
|
Drive Bays
| |
|---|---|
| Peripheral Bay(s) | • 8x 5.25" Peripheral Drive Bay • 1x 5.25" Bay For Floppy Drive |
|
SCSI Backplane
| |
|---|---|
|
• 5 x 3.5" SCSI Backplane w/ SAF-TE |
|
|
System Cooling
| |
|---|---|
| Fans |
• 3x 120mm Hot-swappable Fans |
|
Power Supply
| |
|---|---|
| 760W Triple-redundant AC power supply w/ PFC [ 24-pin, (4-pin, 8-pin) = 12V ] | |
| AC Voltage | • 100 - 240V, 50/60Hz, 14 Amp |
| DC Output | • 5V + 3.3V ≤ 200W |
| +5V | • 36.0 Amp |
| +5V standby | • 3.5 Amp |
| +12V1 | • 18.0 Amp |
| +12V2 | • 18.0 Amp |
| +12V3 | • 19.0 Amp |
| +12V4 | • 19.0 Amp |
| -12V | • 1.0 Amp |
| +3.3V | • 36.0 Amp |
|
System Bios
| |
|---|---|
| Bios Type |
• 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.1 • ACPI 1.0 • Fan Speed Control |
|
PC Health Monitoring
| |
|---|---|
| CPU |
• Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby |
| FAN | • Total of eight 4-pin fan headers • 8x fans with status monitoring • Low noise fan speed control • Pulse Width Modulated (PWM) fan connector |
| Temperature | • Monitoring for CPU, chassis, environment • CPU thermal trip support • Thermal Monitor 2 support |
| LED | • CPU Overheat LED • System Overheat LED • Suspend-state indicator LED |
| Other Features | • Chassis intrusion detection |
