Details
|
Product SKU
| |
|---|---|

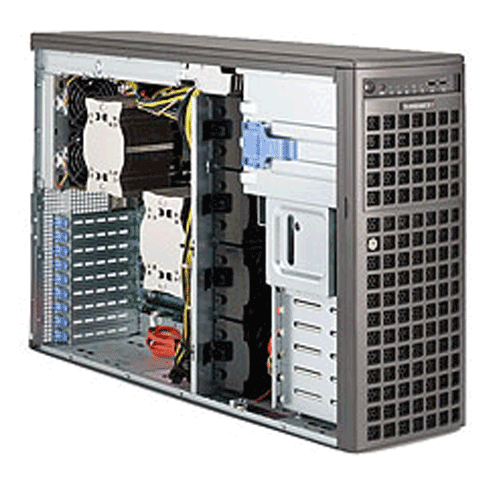

| SuperWorkstation | • SYS-7047AX-TRF (Black) |
|
Motherboard
| |
|---|---|
| • Super X9DAX-iF | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600
and E5-2600 v2 family†
(up to 150W TDP) • Dual Socket R (LGA 2011) |
| Cache | • Up to 20MB |
| System Bus | • QPI up to 8 GT/s |
| Note | † BIOS version 3.0 or above is required |
|
System Memory
| |
|---|---|
| Memory Capacity | • 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) |
| Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection |
• Corrects single-bit errors |
|
On-Board Devices
| Chipset | • Intel® C602 Chipset |
|---|---|
| SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Controllers | • Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Audio | • RealTek ALC889 7.1 High Definition Audio with S/PDIF header |
| Graphics |
• Matrox G200eW |
|
Input/Output
| SATA | • 2x SATA 3.0 ports (6Gbps) • 8x SATA 2.0 ports (3Gbps) |
LAN | • 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 2x USB 3.0 (2 rear) • 6x USB 2.0 (2 front + 4 rear) |
|---|---|
| Audio | • Line-in / Line-out / Microphone Ports |
| Video | • 1x VGA port |
| Serial Port/Header | • 2x Fast UART 16550 ports |
| IEEE 1394a | • 2x Headers |
|
Expansion Slots
| PCI-Express | • 2 PCI-E 3.0 x16 slots • 3 PCI-E 3.0 x8 slots • 1 UIO PCI-E 3.0 x8 (for SMC UIO) or • 1 PCI-E 2.0 x4 (in x8) slot |
|---|
|
System BIOS
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI® BIOS | BIOS Features | • Plug and Play (PnP) • APM 1.2 • DMI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 •UEFI |
|---|
|
Chassis
| |
|---|---|
| Form Factor | • 4U Rackmountable/Tower • Optional Rackmount Kit |
| Model | • CSE-747TG-R1K28B-SQ |
|
Dimension and Weight
| |
|---|---|
| Width | • 7.0" (178mm) |
| Height | • 18.2" (462mm) |
| Depth | • 26.5" (673mm) |
| Gross Weight | • 71 lbs (32.2 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
| Ports | • 2x front USB 2.0 Ports |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 8x 3.5" Hot-swap SATA Drive Trays |
| Peripheral Bay(s) [90o Rotatable] |
• 2x 5.25" Peripheral Drive Bay • 1x 5.25" Bay for Floppy Drive |
|
SAS/SATA Backplane
| |
|---|---|
|
• SAS / SATA Hard Drive Backplane w/AMI MG9072 |
|
|
System Cooling
| |
|---|---|
| Fans | • 2x Exhaust Fans and 4x Internal Fans |
| Heatsink |
• 2x Optional Active heatsink with optimal fan speed control (SNK-P2050AP4) |
|
Power Supply
| |
|---|---|
| 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 | |
| AC Input | • 1000W Output @ 100-140V, 8-12A, 50-60Hz • 1280W Output @ 180-240V, 6-8A, 50-60Hz |
| DC Output |
• 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A |
| Certification | • Platinum Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages |
| FAN | • Total of three fan headers supporting up to 8 fans |
| Temperature |
• Monitoring for CPU and chassis environment |
| Other Features | • Chassis intrusion detection |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
