Details
|
Product SKU
| |
|---|---|

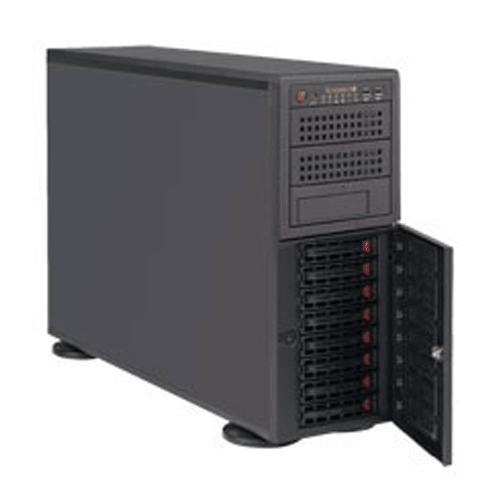

| SYS-7047R-72RF | • SuperServer 7047R-72RF (Black) |
|
Motherboard
| |
|---|---|
| • Super X9DRH-7F | |
| Processor/Cache
|
|
|---|---|
| CPU | • Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| Note | † BIOS version 3.0 or above is required |
|
System Memory
| |
|---|---|
| Memory Capacity | • 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection |
• Corrects single-bit errors |
|
On-Board Devices
| Chipset | • Intel® C602 Chipset |
|---|---|
| SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| SAS | • SAS2 from Broadcom 2208 |
| Network Controllers | • Intel® i350 Dual Port Gigabit Ethernet |
| Video | • G200 (Nuvoton WPCM450 BMC with graphic controller) |
| Super I/O |
• Nuvoton W83527 |
|
Input/Output
| SATA | • 2x SATA 3.0 ports (6Gbps) • 8x SATA 2.0 ports (3Gbps) |
SAS | • 8x SAS2 ports (6Gbps) | LAN | • 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
|---|---|
| USB | • 2x Front USB 2.0 + 4x Rear USB 2.0 ports • MB: 4x rear + 2x via header + 1x Type A |
| Video | • 1x VGA port |
| Serial Port/Header | • 2x Fast UART 16550 ports |
|
Expansion Slots
| PCI-Express | • 1 PCI-E 3.0 x16 slot • 6 PCI-E 3.0 x8 slots |
|---|
|
System BIOS
| BIOS Type | • 64Mb SPI Flash EEPROM with AMI® BIOS | BIOS Features | • Plug and Play (PnP) • APM 1.2 • DMI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
|---|
|
Chassis
| |
|---|---|
| Form Factor | • 4U Rackmountable / Tower • Optional Rackmount Kit |
| Model | • CSE-745TQ-R920B |
|
Dimension and Weight
| |
|---|---|
| Height | • 17.2" (437mm) |
| Width | • 7" (178mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 58 lbs (26.3kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | •
Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power Fail LED |
| Ports | • 2x USB Ports |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 8x 3.5" Hot-swap SAS2/SATA Drive Trays |
| Peripheral Bay(s) [90o Rotatable] |
• 2x 5.25" Peripheral Drive Bays • 1x 5.25" Bay that fits 3.5" bay devices |
|
SAS / SATA Backplane
| |
|---|---|
|
• SAS / SATA Hard Drive Backplane w/AMI MG9072 |
|
|
System Cooling
| |
|---|---|
| Fans |
• 3x 5000 RPM Hot-swap PWM Cooling Fans |
|
Power Supply with Power Distributor
| |
|---|---|
| 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output |
• 4 Amp @ +5V standby • 75 Amp @ +12V |
| Certification | • Platinum Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU |
• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages |
| Fan | • Total of eight fan headers supporting up to 8 fans |
| Temperature | • Monitoring for CPU and chassis environment |
| LED | • CPU / System Overheat LED |
| Other Feature | • Chassis intrusion detection |
|
Operating Environment
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
