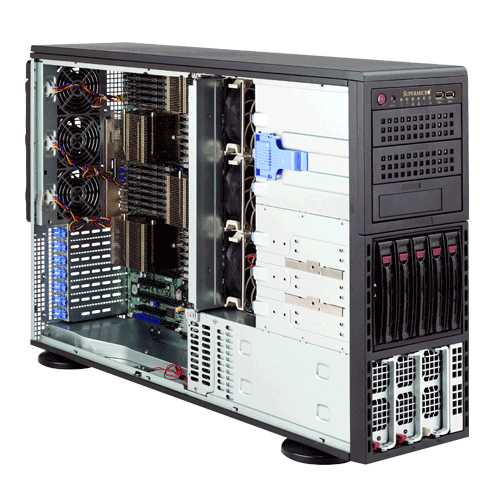

Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AS-4042G-6RF

More Views

Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AS-4042G-6RF

Description

Details

Supermicro 4U Rackmountable Tower A+ AMD Opteron Server AS-4042G-6RF

Product SKU
AS-4042G-6RF	• A+ Server 4042G-6RF (Black)

Motherboard
	• Super H8QG6-F

Processor/Chipset
CPU	• Quad 1944-pin Socket G34 • Supports up to four 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors • HT3.0 Link support
Chipset	• AMD SR5690/SR5670/SP5100 Chipset

System Memory
Memory Capacity	• 32 DIMM sockets • Supports up to 1TB Registered ECC or 256GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 32 DIMMs • Quad channel memory bus • For Dual or Quad CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type	• Registered ECC or unb. ECC / non-ECC DDR3 1600/1333/1066 MHz SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage	• 1.35V or 1.5V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
SAS	• LSI 2008 SAS2 RAID 0, 1, 10, 5 (option) • (Optional) AOC-SAS2-RAID5-KEY: RAID 5 Support
SATA	• AMD SP5100 (RAID 0, 1, 10)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • Winbond® WPCM450 BMC
Network Controllers	• Intel® 82576 controller, Dual-Port Gigabit Ethernet • 10/100/1000BASE-T support
Super I/O	• Winbond® W83527 chip
VGA	• Matrox G200 16MB DDR2 graphics

Input/Output
SAS	• 8x 6Gbps SAS/SATA ports
SATA	• 6x SATA2.0 (3Gb/s) Ports
LAN	• 2 RJ45 LAN ports • 1 RJ45 Dedicated LAN supports IPMI
USB	• 7x USB 2.0 ports • 2x Rear, 4x internal header, and 1x type A
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Ports	• 1x Fast UART 16550 serial port • 1x serial port header
VGA	• 1 VGA port

System BIOS
BIOS Type	• 8Mb Flash EEPROM with AMI® BIOS • SST 49LF080A BIOS Chip
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 2.0 • USB Keyboard Support • SMBIOS 2.3

Chassis
Form Factor	• Tower / 4U Rackmountable
Model	• SC748TQ-R1400B

Dimension and Weight
Height	• 7.0" (178mm)
Width	• 17.8" (452mm)
Depth	• 28.4" (721mm)
Gross Weight	• 87 lbs (39.5 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power Fail LED
Ports	• 2x USB Ports

Drive Bays
Hot-swap	• 5x 3.5" Hot-swap SAS/SATA Drive Bays • SAS or enterprise SATA HDD only recommended
Peripheral Bay(s)	• 2x 5.25" Peripheral Drive Bay • 1x 5.25" Bay For Floppy Drive

Expansion Slots
PCI-Express	• 2x PCI-e 2.0 x16 slots • 1x PCI-e 2.0 x8 slot • 1x UIO or 1x PCI-e 2.0 x8 slot

SAS / SATA Backplane
	• SAS / SATA Hard Drive Backplane with SES2

System Cooling
Fans	• 3x 8200 RPM Hot-Swappable Cooling Fans • 3x 8200 RPM Hot-Swappable Rear Exhaust Fan
Shroud	• 1x Air Shroud

Power Supply
	Redundant 1400W high-efficiency power supply with PMBus
AC Input	• 1200W: 100 - 140V, 50 - 60Hz, 10.5 - 14.7 Amp • 1400W: 180 - 240V, 50 - 60Hz, 7.2 - 9.5 Amp
DC Output +5V standby	• 6 Amp
DC Output +12V	• 100 Amp @ 100-140V • 117 Amp @ 180-240V
With Power Distributor	• +5V: 30 Amp • +3.3V: 25 Amp • -12V: 0.6 Amp
Certification	• 80Plus Gold Certified

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT • CPU 4-Phase-switching voltage reulator
FAN	• Total up to 9-fan status tachometer monitoring • Up to nine 3-pin fan headers • Status monitor for speed control • Support 3-pin fans with fan-speed control
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip Support • PC Temperature Sensing Logic
LED	• CPU / System Overheat LED • Suspend-State Indicator LED • +5V Standby Alert LED
Other Features	• Chassis Intrusion Detection • Chassis Intrusion Header

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 30°C (50°F to 86°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
