Details
|
Product SKU
| |
|---|---|

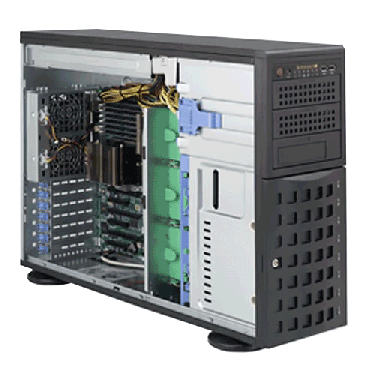

| AS-4022G-6F | • A+ Server 4022G-6F (Black) |
|
Motherboard
| |
|---|---|
| • Super H8DG6-F | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Dual 1944-pin Socket G34 • Supports up to two 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors • HT3.0 Link support |
| Chipset | • AMD chipset SR5690 / SP5100 |
|
System Memory
| |
|---|---|
| Memory Capacity | • Sixteen DIMM sockets • Support up to 512GB Registered ECC or 128GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 16 DIMMs • Quad channel memory bus • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | • DDR3 1600/1333/1066 MHz Registered ECC Unbuffered ECC/non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | • 1.35V or 1.5V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| SAS/SATA RAID | • AMD SP5100 (RAID 0, 1, 10) • LSI 2008 SAS2 (RAID 0, 1, 10, 5) • (Optional) AOC-SAS2-RAID5-KEY: RAID 5 Support |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • Winbond® WPCM450 BMC |
|---|---|
| Network Controllers | • Intel® 82576 controller, Dual-Port Gigabit Ethernet • 10/100/1000BASE-T support |
| VGA | • Matrox G200eW 16MB DDR2 |
| Super I/O |
• Winbond 83527 chip |
|
Expansion Slots
| PCI-Express | • 3/1/2 PCI-E 2.0 x16/x8/x4 (in x8) |
|---|
|
Input/Output
| LAN | • 2x RJ45 ports and 1x RJ45 Dedicated LAN supports IPMI |
|---|---|
| USB | • 8x USB 2.0 ports |
| VGA | • 1x VGA port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
|
System BIOS
| |
|---|---|
| BIOS Type | • 16Mb Flash EEPROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • Tower / 4U Rackmountable • Optional Rackmount kit: (CSE-PT26) |
| Model | • SC745TQ-920B |
|
Dimension and Weight
| |
|---|---|
| Height | • 17.2" (437mm) |
| Width | • 7.0" (178mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 58 lbs (26.3kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off Button |
| LEDs |
• Power status |
| Ports | • 2x USB |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 8x 3.5" SAS / SATA Hot-swap drive bays SAS or enterprise SATA HDD only recommended |
|
SAS / SATA Hard Drive Backplane
| |
|---|---|
• SAS/SATA backplane w/ Enclosure Management |
|
|
System Cooling
| |
|---|---|
| Fans | • 5x 80x38mm 4-pin PWM Fans |
|
Power Supply with Power Distributor
| |
|---|---|
| 920W high-efficiency (94+%) power supply with PMBus | |
| AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output |
• 4 Amp @ +5V standby • 75 Amp @ +12V |
| With Power Distributor |
• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
| Certification | • 80Plus Platinum Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, ±12V, HyperTransport Link voltage, memory voltage, VBAT, Chipset voltage |
| FAN | • Total up to 8-fan status tachometer monitoring • Status monitor for speed control • Stauts monitor for on/off control • Low noise fan speed control |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal Control for 8x Fan Connectors • I2C Temperature Sensing Logic |
| LED | • CPU / System Overheat LED • Suspend-State Indicator LED • +5V Standby Alert LED • UID/Remote LED |
| Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 30°C (50°F to 86°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
