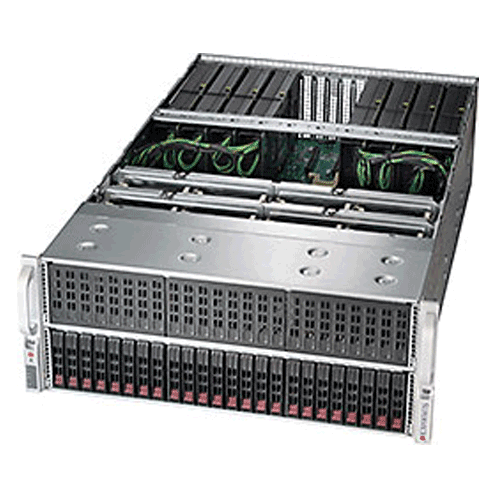

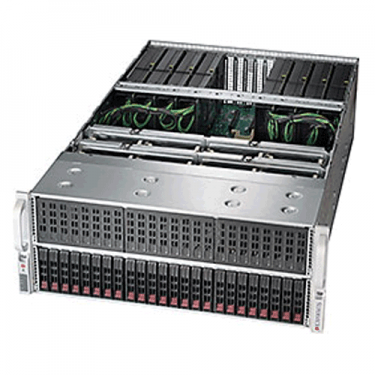

Supermicro 4U Rackmountable SuperServer SYS-4027GR-TRT

More Views

Supermicro 4U Rackmountable SuperServer SYS-4027GR-TRT

Description

Details

Supermicro SuperServer SYS-4027GR-TRT

Product SKU
SYS-4027GR-TRT	• SuperServer 4027GR-TRT (Black)

Motherboard
	• Super X9DRG-OTF-CPU

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 150W TDP **) • Dual Socket R (LGA 2011)
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s
Note	† BIOS version 3.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support
GPU/Xeon Phi Support	• K80, up to 150W CPU at 30°C • K40 (Atlas), up to 150W CPU at 30°C • K10/K20/K20X/K1/K2 (Kepler), up to 150W CPU at 30°C • Xeon Phi, up to 150W CPU at 30°C

System Memory
Memory Capacity	• 24x 240-pin DDR3 DIMM slots • Up to 1.5TB DDR3 ECC LRDIMM • Up to 768GB DDR3 ECC RDIMM • Up to 192GB DDR3 ECC/non-ECC UDIMM
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs • Support ECC and non-ECC UDIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 chipset
AHCI SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1
SCU SATA	• SATA 2.0 3Gbps with RAID 0, 1, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Controllers	• Intel® X540 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBase-T , 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• Matrox G200 (Nuvoton WPCM450 BMC)
Super I/O	• Nuvoton W83527HG

Input/Output
AHCI SATA	• 2x SATA 3.0 ports (6Gbps) • 4x SATA 2.0 ports (3Gbps)
SCU SATA	• 4x SATA 2.0 ports (3Gbps)
LAN	• 2x RJ45 10GBase-T ports • 1x dedicated LAN port for IPMI
USB	• 10x USB 2.0 ports total (4x rear + 4x via header + 2x Type A)
Serial Port/Header	• 1x Fast UART 16550 ports: 1 header

Chassis
Form Factor	• 4U Rackmountable • Rackmount Kit (MCP-290-00057-0N)
Model	• CSE-418GTS-R3200B

Dimension and Weight
Height	• ##7.0" (178mm)
Width	• ##17.2" (437mm)
Depth	• ##29" (737mm)
Gross Weight	• 135 lbs (61.2 kg)
Available Colors	• Black

Drive Bays
Hot-swap	• 24x 2.5" Hard drive bays

Expansion Slots
PCI-Express	• 8x PCI-E 3.0 x16 (double-width) slots • 2x PCI-E 3.0 x8 (in x16) slot • 1x PCI-E 2.0 x4 (in x16) slot

Backplane
	• SAS/SATA HDD Backplane

System Cooling
Fans	• 8x 92mm RPM Hot-Swappable Cooling Fans
Shrouds	• 1x Air Shroud (MCP-310-84806-0B) • 1x Air Shroud (MCP-310-84807-0B)

Power Supply
	1600W 1U Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1600W
Dimension (W x H x L)	• 73.5 x 40 x 265 mm
Input	• 100-127Vac / 12.9A Max / 50-60Hz • 200-240Vac / 9.5A Max / 50-60Hz
+12V	• Max: 82A / Min: 0.1A (100-127Vac) • Max: 132A / Min: 0.1A (200-240Vac)
12V SB	• Max: 2A / Min: 0.2A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Platinum Level

System BIOS
BIOS Type	• 16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
