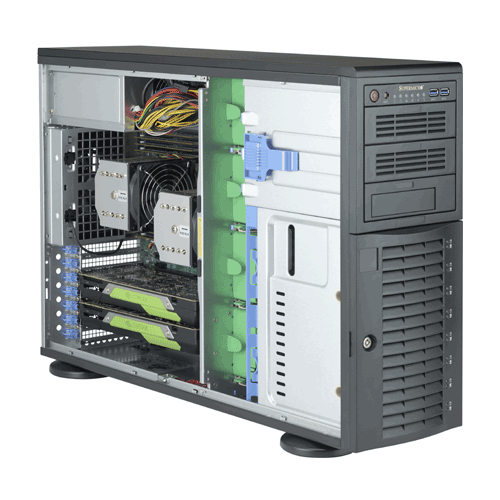

Supermicro 4U Rackmount SuperWorkstation SYS-7049A-T - Angle

More Views

Supermicro 4U Rackmount SuperWorkstation SYS-7049A-T | Intel Xeon Scalable Processors

Call for price.

SKU:SYS-7049A-T

Quick Overview:

Key Features:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
• Up to 2TB ECC 3DS LRDIMM
• 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default)
• 2x 1GbE LAN ports
• 2 Super quiet PWM chassis fans (support up to 4 fans)
1 Super quiet rear fan with optimal fan speed control
• 1200W High-efficiency Power Supply Platinum Level Certified

Description

Details

Supermicro SuperWorkstation SYS-7049A-T

Product SKU
SuperWorkstation	• SYS-7049A-T (Black)

Motherboard
	Super X11DAi-N

Processor/Cache
CPU	• Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors,3 UPI up to 10.4GT/s • Support CPU TDP 70-205W
Cores	• Up to 28 Cores with Intel® HT Technology

System Memory
Memory Capacity	• 16 DIMM slots • Up to 2TB ECC 3DS LRDIMM, up to 2TB ECC 3DS RDIMM, DDR4 up to 2666MHz
Memory Type	• 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes	• RDIMM: 64GB • LRDIMM: 64GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C621 chipset
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers	• Dual LAN with GbE from C621
IPMI	• ASPEED AST2500
Audio	• RealTek ALC888 7.1 High Definition Audio with S/PDIF header

Input/Output
SATA	• 10 SATA3 (6Gbps) ports
NVMe	• 2 NVMe support with optional cables
LAN	• 2 RJ45 Gigabit Ethernet LAN ports
USB	• 6 USB 3.0 ports (4 rear, 2 front) • 2 USB 3.1 ports (rear)
Audio	• 7.1 HD Audio with optical S/PDIF
Video	• 1 VGA Port
Serial Port/ Header	• 1 COM port (header)
DOM	• 2 SuperDOM (Disk on Module) ports
TPM	• 1 TPM 2.0 Header

System Bios
BIOS Type	• UEFI 128M

Management
Software	• Intel® Node Manager • IPMI 2.0 • SSM, SPM, SUM • SuperDoctor® 5 • Watchdog

PC Health Monitoring
CPU	• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator
FAN	• Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors

Chassis
Form Factore	• 4U Rackmount/Tower • Optional Rackmount Kit
Model	• CSE-743TS-1200BP-SQ

Dimension and Weight
Height	• 17.8" (452mm)
Width	• 7.0" (178mm)
Depth	• 25.5" (648mm)
Gross Weight	• 71 lbs (32.2 kg)
Available Colors	• Black

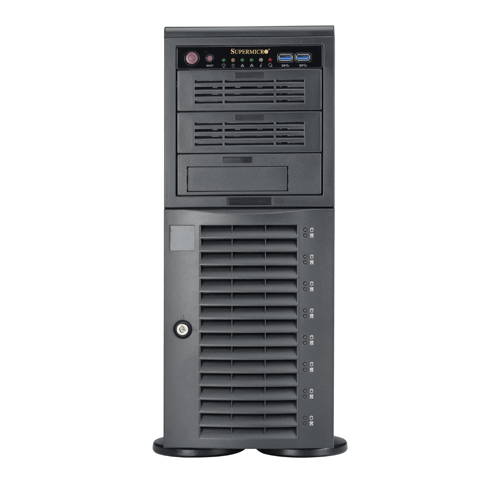

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • Network activity LEDs • System Overheat / Fan Fail LED
Ports	• 2 front USB 3.0 Ports

Expansion Slots
PCI-Express	• 4 PCI-E 3.0 x16 slots • 2 PCI-E 3.0 x8 slots
M.2	• M.2 Interface: PCI-E 3.0 x4 • Form Factor: 2260, 2280, 22110 • Key: M-Key

Drive Bays
Hot-swap	• 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default)
Peripheral Bays [90o Rotatable]	• 3x 5.25" drive bays

Backplane
	• Supports 8 SATA3 or 8 SAS3 HDD

System Cooling
Fans	• 2 Super quiet PWM chassis fans (support up to 4 fans) • 1 Super quiet rear fan with optimal fan speed control

Power Supply
	1200W high-efficiency power supply w/ PMBus
AC Input	• 1000W: 100-114.9 V, 50-60 Hz, 12 Amp • 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output 1000W max 1200W max	• +3.3V / +5V / +12V / -12V / +5VSB • 20A / 20A / 83A / 0.3A / 3A • 20A / 20A / 99A / 0.3A / 3A
Certification	• Platinum Certified

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
