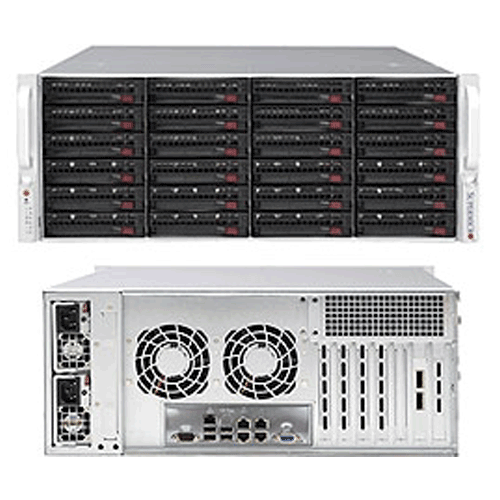

Supermicro 4U Rackmount SuperStorage SSG-6049P-E1CR24L | Intel Xeon Scalable Processors

Call for price.

SKU:SSG-6049P-E1CR24L

Quick Overview:

Key Features:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,
Dual UPI up to 10.4GT/s
• Up to 2TB ECC 3DS LRDIMM
• 24 Hot-swap 3.5" SAS3/SATA3 drive bays
• 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
• 3 Hot-swap 8cm redundant PWM cooling fans,
2 hot-swap 8cm rear exhaust PWM fans PWM fans
• 1200W Redundant Power Supplies Titanium Level (96%)

Description

Details

Supermicro SuperStorage SSG-6049P-E1CR24L

Product SKU
SSG-6049P-E1CR24L	• SuperServer 6049P-E1CR24L (Black)

Motherboard
	Super X11DPH-T

Processor/Cache
CPU	• Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors,3 UPI up to 10.4GT/s • Support CPU TDP 70-205W
Cores	• Up to 28 Cores with Intel® HT Technology

System Memory
Memory Capacity	• 16 DIMM slots • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	• 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

On-Board Devices
Chipset	• Intel® C624 chipset
SAS	• SAS3 (12Gbps) via Broadcom 3008 AOC • Broadcom 3008 controller
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers	• Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	• ASPEED AST2500 BMC

Input/Output
LAN	• 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 4 USB 3.0 ports (rear) • 1 Type A
VGA	• 1 VGA port
Serial Port/ Header	• 1 Fast UART 16550 port / 1 Header

System Bios
BIOS Type	• 256Mb AMI UEFI

Management
Software	• Intel® Node Manager • IPMI 2.0 • NMI • SPM, SUM • SuperDoctor® 5 • Watchdog

PC Health Monitoring
CPU	• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator
FAN	• Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors

Chassis
Form Factore	• 4U Rackmount
Model	• CSE-846BE1C-R1K23B

Dimension and Weight
Height	• 17.2" (437mm)
Width	• 7" (178mm)
Depth	• 26.5" (673mm)
Gross Weight	• 55 lbs (24.9 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • Network activity LEDs • System Overheat LED • Power fail LED

Expansion Slots
PCI-Express	• 3 PCI-E 3.0 x16 slot • 4 PCI-E 3.0 x8 slots • Slot 2 & 3 occupied by controller and JBOD Expansion Port

Drive Bays
Hot-swap	• 24 Hot-swap 3.5" SAS3/SATA3 drive bays
Optional	• 2 Optional Onboard NVMe M.2

Backplane
	• SAS3/SATA3 single expander per backplane

System Cooling
Fans	• 3 Hot-swap 8cm redundant PWM cooling fans • 2 Hot-swap 8cm rear exhaust PWM fans • Redundant cooling

Power Supply
	1200W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1200W
Dimension (W x H x L)	• 76 x 40 x 336 mm
Input	• 100-127Vac / 15-12A / 50-60Hz • 200-240Vac / 8.5-7A / 50-60Hz • 200-240Vdc / 8.5-7A (for CCC only)
+12V	• Max: 83A / Min: 0A (100-127Vac) • Max: 100A / Min: 0A (200-240Vac) • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb	• Max: 4A / Min: 0A
Output Type	• 19 Pairs Gold Finger Connector
Certification	• Titanium Level

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
