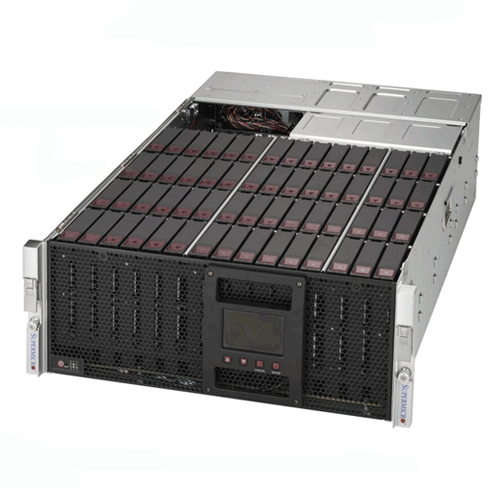

Supermicro 4U Rackmount SuperStorage SSG-6048R-E1CR60L

Call for price.

SKU:SSG-6048R-E1CR60L

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 3TB† ECC 3DS LRDIMM; 24x DIMM slots
• 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
• 5x 8cm hot-swap redundant PWM fans PWM fans
• 2000W Redundant Power Supplies Titanium Level (96%) Certified
• Front 3.5" LCD display

Description

Details

Supermicro SuperStorage SSG-6048R-E1CR60L (Complete System Only)

Product SKU
SSG-6048R-E1CR60L	• SuperServer 6048R-E1CR60L (Black)

Motherboard
	• Super X10DSC+

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
	† BIOS version 2.0 or above is required
Note	• Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization

System Memory
Memory Capacity	• 24x 288-pin DDR4 DIMM slots • Up to 3TB† ECC 3DS LRDIMM, 768 ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SAS	• Broadcom 3008 SAS3 IT mode
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• SIOM support for flexible networking options
Graphics	• ASPEED AST2400 BMC

Input/Output
USB	• 3 USB 3.0 ports (2 rear + 1 Type A)
VGA	• 1 VGA port
Serial Port/Header	• 1 Fast UART 16550 port / 1 Header

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-946STS-R2K05P

Dimension and Weight
Width	• 17.2" (437mm)
Height	•7" (178mm)
Depth	• 30.2" (767mm) • With Cable Management Arm Installed: 35.2" (895mm)
Gross Weight	• 118 lbs (53.5 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • 2 Network activity LEDs • System Overheat LED • Power fail LED
LCD	• 3.5" TFT LCD panel • Full-Color display with 320x480 pixels • Real-time system status from IPMI • Easy read graphical User Interface

Expansion Slots
PCI-Express	• 2 PCI-E 3.0 x16 slots • 1 PCI-E 3.0 x8 slots

Drive Bays
Hot-swap	• 60x 3.5" Hot-swap SAS3/SATA3 drive bays • 2x 2.5" rear Hot-swap SATA drive bays
Optional	• 6 NVMe bays (optional)

Backplane
	• SAS3/SATA3 single expander per backplane

System Cooling
Fans	• 2x 80mm hot-swap rear exhaust cooling fans • Redundant cooling

Power Supply
	2000W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1800W/1980W/2000W
Dimension (W x H x L)	• 73.5 x 40 x 265 mm
Input	• 100-120Vac / 12.5-9.5A / 50-60Hz • 200-220Vac / 10-9.5A / 50-60Hz • 220-230Vac / 10-9.8A / 50-60Hz • 230-240Vac / 10-9.8A / 50-60Hz • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V	• Max: 83.3A / Min: 0A (100-120Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 166.7A / Min: 0A (230-240Vac) • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Titanium Level

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
