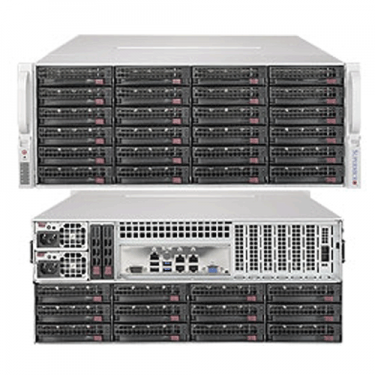

Supermicro 4U Rackmount SuperStorage SSG-6048R-E1CR36H

Call for price.

SKU:SSG-6048R-E1CR36H

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 2TB† ECC 3DS LRDIMM; 16x DIMM slots
• 36x 3.5" Hot-swap drive bays (24 front + 12 rear):
   32x 3.5" Hot-swap SAS3/SATA3 drive bays and
   4x NVMe hybrid drive bays (SAS3/SATA3/NVMe*);
   2x 2.5" optional Hot-swap SATA drive bays (rear);
   4x 2.5" internal fixed drive bays
• SAS3 via Broadcom 3108 AOC (HW RAID)
• 7x 80mm middle cooling fans
• 1280W Redundant Power Supplies Platinum Level (94%)

Description

Details

Supermicro SuperStorage SSG-6048R-E1CR36H

Product SKU
SSG-6048R-E1CR36H	• SuperServer 6048R-E1CR36H (Black)

Motherboard
	• Super X10DRH-iT

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
	† BIOS version 2.0 or above is required
Note	Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SAS	• SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID 0,1,5,6,10,50,60
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® X540 Dual Port 10GbE • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output
LAN	• 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (rear) • 1 Type A
VGA	• 1 VGA port
Serial Port/Header	• 1 Fast UART 16550 port / 1 Header

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-847BE1C-R1K28LPB

Dimension and Weight
Width	• 17.2" (437mm)
Height	•7" (178mm)
Depth	• 27.5" (699mm)
Gross Weight	• 65.5 lbs (29.7 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • 2 Network activity LEDs • System Overheat LED • Power fail LED

Expansion Slots
PCI-Express	• 1 PCI-E 3.0 x16 slot • 6 PCI-E 3.0 x8 slots • Slot 1 & 2 occupied by controller and JBOD Expansion Port

Drive Bays
Hot-swap	• 36x 3.5" Hot-swap SAS3/SATA3 drive bays • Double-sided: 24 front + 12 rear drive bays
Optional	• 2x 2.5" Hot-swap SATA drive bays (rear) • Fixed internal Drive Bracket supports 1x 3.5 or 2x 2.5" devices

Backplane
	• SAS3/SATA3 single expander per backplane

System Cooling
Fans	• 7x 80mm middle cooling fans • Redundant cooling

Power Supply with Digital Switching Control & PMBus 1.2
	1280W High-Efficiency (95%+) power supply
AC Input	• 1000W Output @ 100-140V, 12-8A, 50-60Hz • 1280W Output @ 180-240V, 8-6A, 50-60Hz
DC Output	• 1000W Output @ 100-140V, 12-8A, 50-60Hz ##1280W Output @ 180-240V, 8-6A, 50-60Hz DC Output ##1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A
Certification	• Platinum Certified

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
