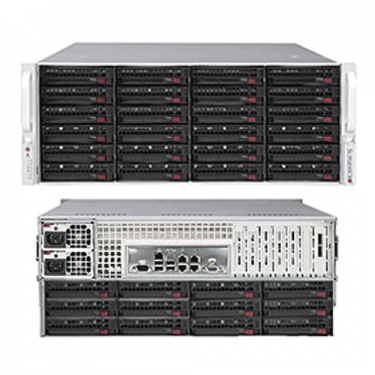

Supermicro 4U Rackmount SuperStorage SSG-6047R-E1CR36L

Call for price.

SKU:SSG-6047R-E1CR36L

Quick Overview:

Key Features:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor
• Up to 1TB ECC DDR3; 16x DIMM slots
• 36x 3.5" Hot-swap SAS3/SATA3 HDD Bays (24 front + 12 rear)
• Dual JBOD expansion ports
• 7x 8cm high-performance PWM fans
• 1280W Redundant Power Supplies Platinum Level (95%)

Description

Details

Supermicro SuperStorage SSG-6047R-E1CR36L

Product SKU
SSG-6047R-E1CR36L	• SuperServer 6047R-E1CR36L (Black)

Motherboard
	• Super X9DRD-EF

Processor/Cache
CPU	• Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP)
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s
Note	† BIOS version 3.0 or above is required

System Memory
Memory Capacity	• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602J Chipset
SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS	• SAS3 via Broadcom 3008 Add-on Card in IT Mode
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Controllers	• Intel® i350 Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Videos	• Matrox G200eW

Input/Output
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
JBOD	• 2x JBOD Expansion Ports
USB	• 9x USB 2.0 ports total (4 rear + 4 via header + 1 Type A)
VGA	• 1x VGA port
Serial Port/Header	• 1x Fast UART 16550 port / 1 Header
DOM	• 1x SATADOM support

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-847BE1C-R1K28LPB

Dimension and Weight
Width	• 17.2" (437mm)
Height	• 7" (178mm)
Depth	• 27.5" (699mm)
Gross Weight	• 104 lbs (47.2 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED

Expansion Slots
PCI-Express	• 6x PCI-E 3.0 x8 slots (Low-profile, Half-length) Slot 1 & 2 occupied by HBA and JBOD Expansion Port

Expansion Slots

PCI-Express

• 6x PCI-E 3.0 x8 slots (Low-profile, Half-length)

Slot 1 & 2 occupied by HBA and JBOD Expansion Port

Drive Bays
Hot-swap	• 36x 3.5" Hot-swap SAS3/SATA3 drive bays Double-sided: 24 front + 12 rear drive bays
Optional	• Optional rear 2x 2.5" Hot-swap drive bays, 4x 2.5" Internal drive bays

Backplane
	• SAS3/SATA3 single expander per backplane

System Cooling
Fans	• 7x 8cm high-performance PWM fans
Shrouds	• 1x Air Shroud

Power Supply with Digital Switching Control & PMBus 1.2
	1280W High-Efficiency (95%+) power supply
AC Input	• 1000W Output @ 100-140V, 12-8A, 50-60Hz • 1280W Output @ 180-240V, 8-6A, 50-60Hz
DC Output	• 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A
Certification	• Platinum Certified

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
