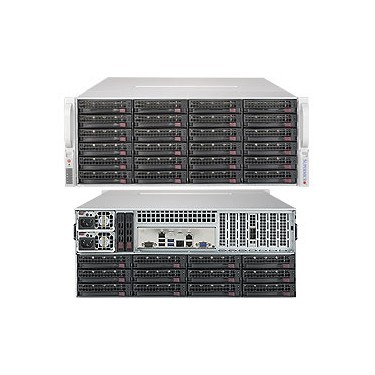

Supermicro 4U Rackmount SuperStorage SSG-5049P-E1CTR36L | Intel Xeon Scalable Processors

Call for price.

SKU:SSG-5049P-E1CTR36L

Quick Overview:

Key Features:
• Single socket P (LGA 3647) supports Intel® Xeon®
   Scalable Processors
• Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz;
   8 DIMM slots
• 36 Hot-swap 3.5" SAS/SATA drive bays with SES3
   (24 front + 12 rear); 4 Internal fixed 2.5" drive bays
   2 Hot-swap 2.5" NVMe/SATA (rear, optional)
• SAS3 via Broadcom 3008 controller
• 7 High-performance 8cm PWM fans
• 1200W Redundant Power Supplies Titanium Level (96%)

Description

Details

Supermicro SuperStorage SSG-5049P-E1CTR36L

Product SKU
SSG-5049P-E1CTR36L	• SuperServer 5049P-E1CTR36L (Black)

Motherboard
	Super X11SPH-nCTF

Processor/Cache
CPU	• Single Socket P (LGA 3647) • Intel® Xeon® Scalable Processors • Support CPU TDP 70-205W
Cores	• Up to 28 Cores with Intel® HT Technology

System Memory
Memory Capacity	• 8 DIMM slots • Up to 1TB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	• 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset	• Intel® C622 chipset
SATA	• SATA3 (6Gbps) via C622 controller • RAID 0, 1, 5, 10 support
SAS	• SAS3 (12Gbps) via Broadcom 3008 • SW RAID 0, 1, 10
Network Controllers	• Dual LAN with 10GBase-T with Intel® X722 + X557
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	• ASPEED AST2500 BMC

Input/Output
LAN	• 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (rear) • 2x USB 2.0 ports (rear)
VGA	• 1x VGA port
Serial Port/Header	• 2 COM Ports (1 rear, 1 header)

System Bios
BIOS Type	• AMI UEFI

Management
Software	• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SuperDoctor® 5 • Watch Dog

PC Health Monitoring
CPU	• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator
FAN	• Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-847BTS-R1K23LPBP

Dimension and Weight
Height	• 17.2" (437mm)
Width	• 7" (178mm)
Depth	• 27.5" (699mm)
Gross Weight	• 102.5 lbs (46.4 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • Network activity LEDs • System Overheat LED • Power fail LED

Expansion Slots
PCI-Express	• 1 PCI-E 3.0 x16 • 1 PCI-E 3.0 x8 • 1 PCI-E 3.0 x8 • 1 PCI-E 2.0 x4 (in x8)

Drive Bays
Hot-Swap	• 36 Hot-swap 3.5" SAS/SATA drive bays (24 front + 12 rear drive bays)
Fixed	• 4 Internal fixed 2.5" drive bays
Optional	• 2 Hot-swap 2.5" NVMe/SATA drive bays (rear)
M.2	• Interface: PCIe 3.0 x4 • Form Factor: 2280

Backplane
	• SAS3 / SATA3 single expander per backplane

System Cooling
Fans	• 7 High-performance 80mm cooling fans

Power Supply
	1200W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1200W
Dimension (W x H x L)	• 76 x 40 x 336 mm
Input	• 100-127Vac / 15-12A / 50-60Hz • 200-240Vac / 8.5-7A / 50-60Hz • 200-240Vdc / 8.5-7A (for CCC only)
+12V	• Max: 83A / Min: 0A (100-127Vac) • Max: 100A / Min: 0A (200-240Vac) • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb	• Max: 4A / Min: 0A
Output Type	• 19 Pairs Gold Finger Connector
Certification	• Titanium Level

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
