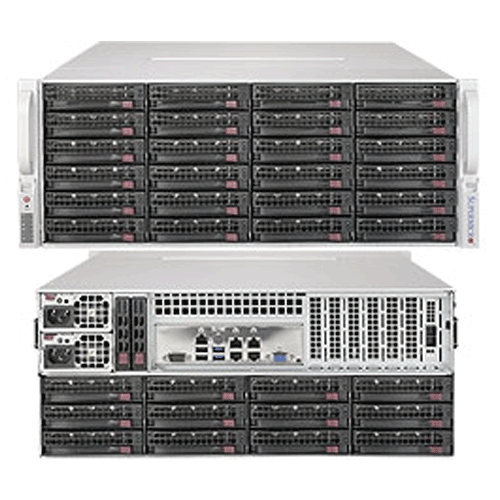

Supermicro 4U Rackmount Superstorage SSG-5048R-E1CR36L

Call for price.

SKU:SSG-5048R-E1CR36L

Quick Overview:

Key Features:
• Single socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 1TB† ECC 3DS L; 8x DIMM slots
• 36x 3.5" Hot-swap SAS3 HDD Bays (24 front + 12 rear);
Opt. 2x 2.5" Hot-swap HDD bays (rear)
• Dual JBOD expansion ports
• 7x 80mm middle cooling fans
• 1280W Redundant Power Supplies Platinum Level (94%)

Description

Details

Supermicro Superstorage SSG-5048R-E1CR36L

Product SKU
SSG-5048R-E1CR36L	• SuperServer 5048R-E1CR36L (Black)

Motherboard
	• Super X10SRH-CLN4F

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **) • Single Socket R3 (LGA 2011)
Core/Cache	• Up to 22 Cores† / Up to 55MB† Cache
	† BIOS version 2.0 or above is required
Note	Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory
Memory Capacity	• 8x 288-pin DDR4 DIMM slots • Up to 1TB ECC 3DS LRDIMM • Up to 512GB ECC LRDIMM • Up to 256GB ECC RDIMM
Memory Type	• 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes	• 3DS LRDIMM: 128GB • LRDIMM: 64GB, 32GB • RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C612 chipset
SAS	• SAS3 (12Gbps) via Broadcom 3008 IR mode • SW RAID 0, 1, 10 (* Max 14x HDD support)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® i350-AM4 Quad Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output
LAN	• 4x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (rear) • 2x USB 2.0 ports (rear)
VGA	• 1x VGA port
Serial Port/Header	• 1x Fast UART 16550 port / 1 Header

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-847BE1C-R1K28LPB

Dimension and Weight
Width	• 17.2" (437mm)
Height	• 7" (178mm)
Depth	• 27.5" (699mm)
Gross Weight	• 65.5 lbs (29.7 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED

Expansion Slots
PCI-Express	• 1x PCI-E 3.0 x4 (in x8) slot • 1x PCI-E 3.0 x8 (in x16) slot • 2x PCI-E 3.0 x8 slots • 1x PCI-E 2.0 x2 (in x4) slot • 1x PCI-E 2.0 x4 (in x8) slot

Drive Bays
Hot-swap	• 36x 3.5" Hot-swap SAS3 HDD bays • Double-sided: 24 front + 12 rear HDD Bays
Fixed	• Optional Internal Drive Bracket suppports 2x 2.5" devices

Backplane
	• SAS3 / SATA3 single expander per backplane

System Cooling
Fans	• 7x 80mm middle cooling fans • Redundant cooling

Power Supply with Digital Switching Control & PMBus 1.2
	1280W High-Efficiency (95%+) power supply
AC Input	• 1000W Output @ 100-140V, 12-8A, 50-60Hz • 1280W Output @ 180-240V, 8-6A, 50-60Hz
DC Output	• 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A
Certification	• Platinum Certified

System BIOS
BIOS System	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
