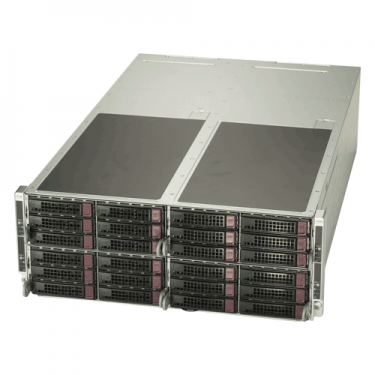

  • Supermicro 4U Rackmount SuperServer SYS-F629P3-RC1B - Angle

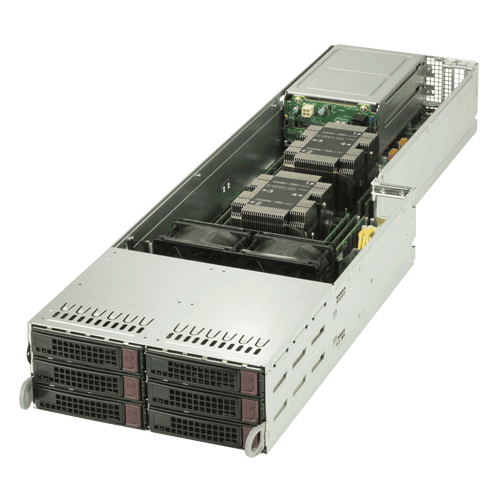

  • Supermicro 4U Rackmount SuperServer SYS-F629P3-RC1B - Node

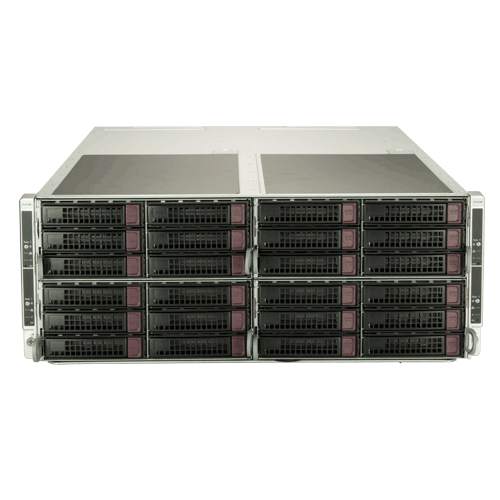

  • Supermicro 4U Rackmount SuperServer SYS-F629P3-RC1B - Front

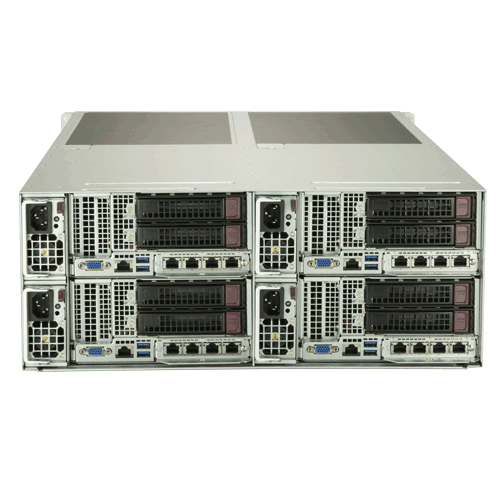

  • Supermicro 4U Rackmount SuperServer SYS-F629P3-RC1B - Rear

Supermicro 4U Rackmount SuperServer SYS-F629P3-RC1B | Intel Xeon Scalable Processors

Call for price.
SKU:SYS-F629P3-RC1B

Quick Overview:

Key Features:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
• Up to 1.5TB ECC 3DS LRDIMM
• 8 Hot-swap 3.5" SAS3/SATA3 or
   6 Hot-swap 3.5" SAS3/SATA3
   + 2 optional NVMe U.2
• 1 VGA, 2 USB 3.0 ports
• 2x 8cm 14k RPM middle fans
• 1200W Redundant Power Supplies Titanium Level (96% Efficiency)


Details

Supermicro SuperServer SYS-F629P3-RC1B

Product SKU
SYS-F629P3-RC1B • SuperServer F629P3-RC1B (Black)
Motherboard
     Super X11DPFR-SN
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-165W with IVR
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 12 DIMM slots
• Up to 1.5TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SAS • SAS3 (12Gbps) via Broadcom 3108
• HW RAID
Network Controllers • Flexible networking via SIOM
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics

• ASPEED AST2500 BMC
Input/Output (per node)
SAS • 8 SAS3 (12Gbps) ports
NVMe • 2 NVMe U.2 option
LAN • SIOM flexible Network card
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
VGA • 1 VGA port
System Bios
BIOS Type • 128Mb SPI Flash EEPROM with AMI BIOS
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SuperDoctor® 5
• Watch Dog
Power
Configuration		 • ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature



 • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factore • 4U Rackmount
Model • CSE-F424AS2-R1K23BP
Dimension and Weight
Width • 17.63" (448mm)
Height • 6.96" (177mm)
Depth • 29" (737mm)
Gross Weight • 200 lbs (90.71 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button
LEDs • Power status LED
• Hard drive activity LED
• Network activity LEDs
• Information LED (UID, Fan failure, Overheat)
Expansion Slots (per node)
PCI-Express

• 1 PCI-E 3.0 x16 (Low-profile)
• 1 PCI-E 3.0 x16 (SIOM)
Drive Bays (per node)
Hot-swap

• 8 Hot-swap 3.5" SAS3/SATA3 or
   6 Hot-swap 3.5" SAS3/SATA3
   + 2 optional NVMe U.2
M.2

• M.2 Support
Backplane


• 1 SAS/SATA backplane
System Cooling (per node)
Fans

• 2x 8cm 14 RPM middle fans
Power Supply (76mm Width)
  1200W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1200W
Dimension
(W x H x L)		 • 76 x 40 x 336 mm
Input • 100-127Vac / 15-12A / 50-60Hz
• 200-240Vac / 8.5-7A / 50-60Hz
• 200-240Vdc / 8.5-7A (for CCC only)
+12V • Max: 83A / Min: 0A (100-127Vac)
• Max: 100A / Min: 0A (200-240Vac)
• Max: 100A / Min: 0A (200-240Vdc)
5VSB • Max: 4A / Min: 0A
Output Type • 19 Pairs Gold Finger Connector
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
