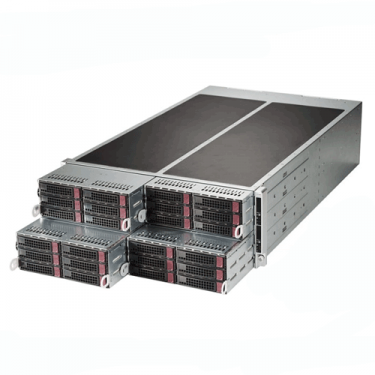

Supermicro 4U Rackmount SuperServer SYS-F628R3-RC1BPT+

Call for price.

SKU:SYS-F628R3-RC1BPT+

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 2TB† ECC 3DS LRDIMM; 16x DIMM slots
• 8x 3.5" Hot-swap SAS/SATA via Broadcom 3108 or
6x 3.5" Hot-swap SAS/SATA + 2x optional NVMe
• 2x 80mm 11k RPM middle fans
• 1280W Redundant Power Supplies Platinum Level (95%)

Description

Details

Supermicro SuperServer SYS-F628R3-RC1BPT+

Product SKU
SYS-F628R3-RC1BPT+	• SuperServer F628R3-RC1BPT+ (Black)

Motherboard
	• Super X10DRFR-NT

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011)
Cores/Cache	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
System Bus	• Up to 22 Cores† / Up to 55MB† Cache
	† BIOS version 2.0 or above is required
Note	Please contact Will JayaTechnical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SAS	• SAS 3.0 (12Gbps) via Broadcom 3108 • HW RAID 0, 1, 5, 6, 10, 50, 60
SATA	• SATA 3.0 (6Gbps) w/ RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® X540 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output (per node)
SAS	• 8 SAS3 (12Gbps) ports
LAN	• 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports
VGA	• 1 VGA port

Management
Software	• SuperDoctor® 5 • Watch Dog • NMI • IPMI 2.0 • SUM and SSM
Power Configuration	• ACPI / APM Power Management • Power-on mode for AC power recovery

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-F424AS-R1K28BP

Dimension and Weight
Width	• 17.63" (448mm)
Height	• 6.96" (177mm)
Depth	• 29" (737mm)
Gross Weight	• 150 lbs (68.04 kg)
Available Colors	• Black

Front Panel
Buttons	• Buttons Power On/Off button • UID button
LEDs	• Power status LED • Hard drive activity LED • 2 Network activity LEDs • Information LED (UID, Fan failure, Overheat)

Expansion Slots (per node)
PCI-Express	• 1 PCI-E 3.0 x16 (LP) + 1 Micro LP • MicroLP Adapter Matrix (Networking options)

Drive Bays (per node)
Hot-swap	• (6+2) 3.5" Hot-swap SAS3 HDD trays • 8 SAS3 or 6x SAS3 + 2 NVMe (optional) Note: NVMe support requires 2 CPUs installed

Backplane
	• 1 SAS/SATA backplane • 1 SAS/SATA/NVMe hybrid (2 slots)

System Cooling (per node)
Fans	• 2x 8cm 11k RPM middle fans

Power Supply
	1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input	• 1000W Output @ 100-140V, 8-12A, 50-60Hz • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output	• 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A
Certificaiton	• Platinum Certified

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
