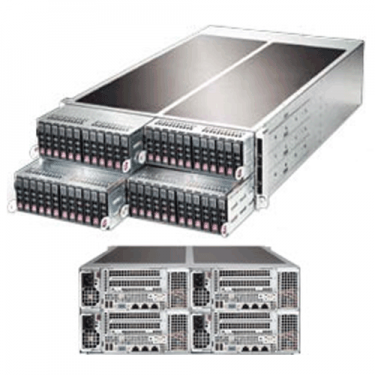

Supermicro 4U Rackmount SuperServer SYS-F627R2-RT+

Call for price.

SKU:SYS-F627R2-RT+

Quick Overview:

Key Features:
• 4 Hot-plug System Nodes in 4U
• Dual socket R (LGA 2011) supports Intel® Xeon® processor
• 2x PCI-E 3.0 x8 (LP, for 2x AOC in the rear side) + 1x Micro LP
• 8x 2.5" Hot-swap SAS/SATA +
4x 2.5" Hot-swap SATA HDD Bays
• SAS2 support via Broadcom 2208
• 2x heavy duty internal fans
• 1280W Redundant Power Supplies Platinum Level (95%)

Description

Details

Supermicro SuperServer SYS-F627R2-RT+

Product SKU
SYS-F627R2-RT+	• SuperServer F627R2-RT+ (Black)

Motherboard
	• Super X9DRFR

Processor/Cache
CPU	• Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 135W TDP *)
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s
	† BIOS version 3.0 or above is required
Notes	Please contact your Will Jaya sales representative for additional details

System Memory (per node)
Memory Capacity	• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 Chipset
AHCI SATA	• SATA2 (3Gbps) with RAID 0, 1, 5, 10 • SATA3 (6Gbps) with RAID 0, 1
SCU SATA	• SATA2 (3Gbps) with RAID 0, 1, 10
SAS	• SAS2 via Broadcom 2208 • HW RAID 0, 1, 5, 6, 10, 50, 60 support
IPMI	• Support for Intelligent Platform Management Interface v.2. • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Controllers	• Support for Intelligent Platform Management Interface v.2.0 • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• Matrox G200eW

Input/Output (per node)
AHCI SATA	• 2x SATA3 (6Gbps) ports • 2x SATA2 (3Gbps) ports
SAS	• 8x SAS2 (6Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 2.0 ports
VGA	• 1x VGA port
Serial Port/Header	• 1x Fast UART 16550 port

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-F424BC-R1K28BP

Dimension and Weight
Width	• 17.63" (448mm)
Height	• 6.96" (177mm)
Depth	• 29" (737mm)
Gross Weight	• 150 lbs (68.04 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED

Expansion Slots (per node)
PCI-Express	• 2x PCI-E 3.0 x8 (LP, for 2x AOC in the rear side) + 1 Micro LP • MicroLP Adapter Matrix (Networking options)

Drive Bays (per node)
Hot-swap	• 8x 2.5" Hot-swap SAS/SATA HDD Bays + 4x 2.5" Hot-swap SATA HDD Bays

Backplane
	• 1x SAS2 / SATA backplane

System Cooling (per node)
Fans	• 2x 8cm 11k RPM middle fans

Power Supply
	1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input	• 1000W Output @ 100-140V, 8-12A, 50-60Hz • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output	• 1000W: +12V/83A; +5Vsb/4A • 1000W: +12V/83A; +5Vsb/4A ##1280W: +12V/106.7A, +5Vsb/4A
Certification	• Platinum Certified

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
