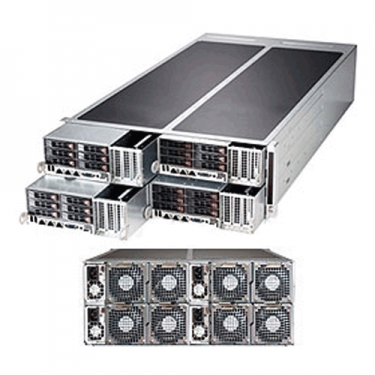

Supermicro 4U Rackmount SuperServer SYS-F627G2-FT+

Call for price.

SKU:SYS-F627G2-FT+

Quick Overview:

Key Features:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor
• Up to 1TB ECC DDR3; 16x DIMM slots
• 3x PCI-E 3.0 x16 slots (support 3x Double-width GPU/Xeon
Phi cards), 2x PCI-E 3.0 x8 slots
• Front I/O: 2 GbE LAN, 2 USB 2.0, and 1 VGA connector
• 6x 2.5" Hot-swap SATA HDDs
• 1620W Redundant Power Supplies Platinum Level (94%+)

Description

Details

Supermicro SuperServer SYS-F627G2-FT+

Product SKU
SYS-F627G2-FT+	• SuperServer F627G2-FT+ (Black)

Motherboard
	• Super X9DRFF-iG+

Processor/Cache
CPU	• Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP)
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s
Note	† BIOS version 3.0 or above is required
GPU/Xeon Phi Support	• 3x Double-width GPU/Xeon Phi per node (total of 12x GPU/Xeon Phi cards in 4U) • Supports Intel Xeon Phi • Supports NVIDIA K80, K10/K20/K20X (Kepler), K1/K2, and M2090/M2075

System Memory (per node)
Memory Capacity	• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 Chipset
AHCI SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Controllers	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics	• Matrox G200eW

Input/Output (per node)
AHCI SATA	• 2x SATA 3.0 ports (6Gbps) • 4x SATA 2.0 ports (3Gbps)
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 2.0 ports
VGA	• 1x VGA port
Serial Port/Header	• 1x Fast UART 16550 port

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-F424BG-R1K62BP

Dimension and Weight
Width	• 17.63" (448mm)
Height	• 6.96" (177mm)
Depth	• 35" (889mm)
Gross Weight	• 150 lbs (68.04 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • UID button
LEDs	• Power status LED • Power status LED ##System Overheat / Power Fail LED • UID LED

Expansion Slots (per node)
PCI-Express	• 3x PCI-E 3.0 x16 slots (support 3x Double-width GPU/Xeon Phi) • 2x PCI-E 3.0 x8 slots

Drive Bays (per node)
Hot-swap	• 6x 2.5" Hot-swap SATA HDD bays

System Cooling
Fans	• 8x 8cm heavy duty fans with air shroud and PWM fan speed control

Power Supply
	1620W high-efficiency redundant power supply w/ PMBus
AC Input	• 1000W Output @ 100-120V, 12-10A, 50-60Hz • 1200W Output @ 120-140V, 12-10A, 50-60Hz • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output	• 1000W: +12V/84A; +5Vsb/4A • 1200W: +12V/100A; +5Vsb/4A • 1620W: +12V/150A; +5Vsb/4A
Certification	• 150A; +5Vsb/4A Certification Platinum Level Certified94%+ Platinum Certified

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
