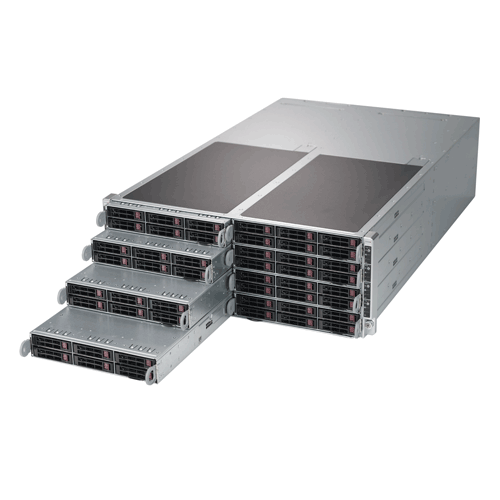

  • Supermicro 4U Rackmount SuperServer SYS-F619P2-RC1 - Angle

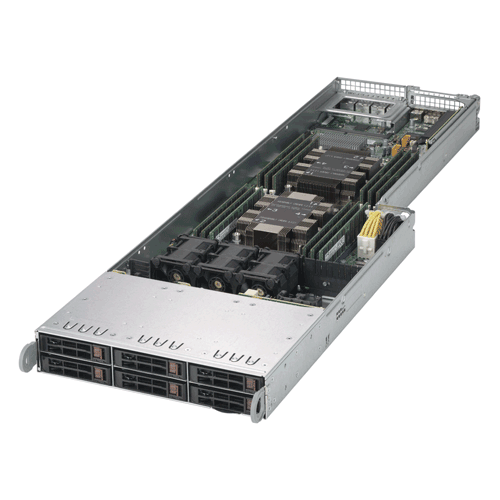

  • Supermicro 4U Rackmount SuperServer SYS-F619P2-RC1 - Node
  • Supermicro 4U Rackmount SuperServer SYS-F619P2-RC1 - Front
  • Supermicro 4U Rackmount SuperServer SYS-F619P2-RC1 - Rear

Supermicro 4U Rackmount SuperServer SYS-F619P2-RC1 | Intel Xeon Scalable Processor

Call for price.
SKU:SYS-F619P2-RC1

Quick Overview:

Key Features:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
• Up to 1.5TB ECC 3DS LRDIMM
• 6 Hot-swap 2.5" SAS3/SATA3 or
   2 Hot-swap 2.5" SAS3/SATA3
   + 4 optional NVMe U.2
• 1 VGA, 2 USB 3.0 ports
• 3x 4cm 20k RPM middle fans
• 2200W Redundant Power Supplies Titanium Level (96% Efficiency)


Details

Supermicro SuperServer SYS-F619P2-RC1

Product SKU
SYS-F619P2-RC1 • SuperServer F619P2-RC1 (Black)
Motherboard
     Super X11DPFR-SN
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-165W with IVR
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 12 DIMM slots
• Up to 1.5TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SAS • SAS3 (12Gbps) via Broadcom 3108
• HW RAID
Network Controllers • Flexible networking via SIOM
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics

• ASPEED AST2500 BMC
Input/Output (per node)
SAS • 6 SAS3 (12Gbps) ports
NVMe • 4 NVMe U.2 option
LAN • SIOM flexible Network card
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
VGA • 1 VGA port
System Bios
BIOS Type • 128Mb SPI Flash EEPROM with AMI BIOS
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SuperDoctor® 5
• Watch Dog
Power
Configuration		 • ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature







 • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factore • 4U Rackmount
Model • CSE-F418BC2-R2K20BP
Dimension and Weight
Width • 17.63" (448mm)
Height • 6.96" (177mm)
Depth • 29" (737mm)
Gross Weight • 200 lbs (90.71 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button
LEDs • Power status LED
• Hard drive activity LED
• Network activity LEDs
• Information LED (UID, Fan failure, Overheat)
Expansion Slots (per node)
PCI-Express

• 1 PCI-E 3.0 x16 (Low-profile)
• 1 PCI-E 3.0 x16 (SIOM)
Drive Bays (per node)
Hot-swap

• 6 Hot-swap 2.5" SAS3/SATA3 or 2 Hot-swap 2.5" SAS3/SATA3 + 4 optional NVMe U.2
M.2

• M.2 Support
Backplane


• 1 SAS/SATA backplane
System Cooling
Fans

• 3x 4cm 20k RPM middle fans
Power Supply
  2200W or 2000W Redundant Power Supplies with PMBus
Total Output Power
and Input		 • 1200W with Input 100-127Vac
• 1800W with Input 200-220Vac
• 1980W with Input 220-230Vac
• 2090W with Input 230-240Vac
• 2200W with Input 220-240Vac (for UL/cUL use only)
• 2090W with Input 230-240Vdc (for CCC only)
AC Input
Frequency		 • 50-60Hz
Dimension
(W x H x L)		 • 76 x 40 x 336 mm
+12V • Max: 100A / Min: 0A (100-127Vac)
• Max: 150A / Min: 0A (200-220Vac)
• Max: 165A / Min: 0A (220-230Vac)
• Max: 174.17A / Min: 0A (230-240Vac)
• Max: 183.3A / Min: 0A (220-240Vac)
5VSB • Max: 1A / Min: 0A
Output Type • Backplanes (gold finger)
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
