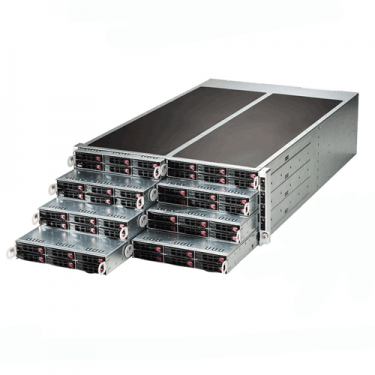

Supermicro 4U Rackmount SuperServer SYS-F618R2-RC0+

Call for price.

SKU:SYS-F618R2-RC0+

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 2TB† ECC 3DS LRDIMM; 16x DIMM slots
• 6x 2.5" Hot-swap SAS/SATA via Broadcom 3008 or
4x 2.5" Hot-swap SAS/SATA + 2x optional NVMe
• 3x heavy duty internal fans
• 2000W High efficiency (96%) Redundant PSU; Titanium Level

Description

Details

Supermicro SuperServer SYS-F618R2-RC0+

Product SKU
SYS-F618R2-RC0+	• SuperServer F618R2-RC0+ (Black)

Motherboard
	• Super X10DRFR-N

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
	† BIOS version 2.0 or above is required
Note	• Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SAS	• SAS3 (12Gbps) via Broadcom 3008 • HBA/SW RAID 0, 1 support
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® i350-AM2 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output (per node)
SAS	• 6 SAS3 (12Gbps) ports
LAN	• 2 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports
VGA	• 1 VGA port

Management
Software	• Intel® Node Manager • SuperDoctor® 5 • Watch Dog • NMI • IPMI 2.0 • SUM and SSM
Power Configuration	• ACPI / APM Power Management • Power-on mode for AC power recovery

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-F418BC-R2K04BP

Dimension and Weight
Width	• 17.63" (448mm)
Height	• 6.96" (177mm)
Depth	• 29" (737mm)
Gross Weight	• 200 lbs (90.71 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • UID button
LEDs	• Power status LED • Hard drive activity LED • 2 Network activity LEDs • Information LED (UID, Fan failure, Overheat)

Expansion Slots (per node)
PCI-Express	• 1 PCI-E 3.0 x16 Low-profile • 1 PCI-E 3.0 x8 (Micro LP) • MicroLP Adapter Matrix (Networking options)

Drive Bays (per node)
Hot-swap	• 6x 2.5" Hot-swap SAS/SATA drives • Optional NVMe support (Note: NVMe support requires 2 CPUs installed)

Backplane
	• 1x SAS/SATA backplane

System Cooling (per node)
Fans	• 3x 4cm 14k RPM middle fans

Power Supply (76mm Width)
	2000W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1800W/1980W/2000W
Dimension (W x H x L)	• 76 x 40 x 336 mm
Input	• 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V	• Max: 83.3A / Min: 0A (100-127 Vac) • Max: 150A / Min: 0A (200-220 Vac) • Max: 165A / Min: 0A (220-230 Vac) • Max: 166.7A / Min: 0A (230-240 Vac) • Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only)
+5Vsb	• Max: 1A / Min: 0A
Output Type	• 27 Pairs Gold Finger Connector
Certification	• Titanium Level

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
