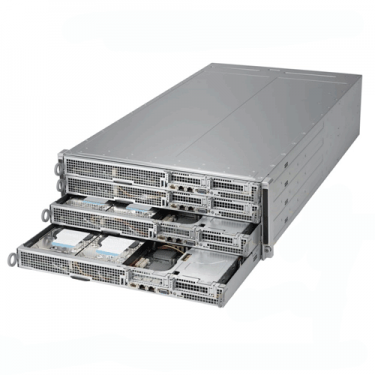

Supermicro 4U Rackmount SYS-F618H6-FT+ Angle

More Views

Supermicro 4U Rackmount SuperServer SYS-F618H6-FT+ | 4 Nodes

Call for price.

SKU:SYS-F618H6-FT+

Quick Overview:

Key Features:
• Hadoop, 4-Node Front I/O Each node supports:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600
   v4†/ v3 family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 2 PCI-E 3.0 x8 (LP) slots
• Dual GbE LAN via Intel® i350
• Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with
   dedicated LAN port
• 2 USB 3.0 ports, 1 VGA connector
• 8 Fixed 3.5" SAS3/SATA3 +
   4 Fixed 3.5" SATA Drive Bays
   Optional 2.5" drives mounted in PCI-E
• 2000W Redundant Power Supplies Titanium Level (96%)

Description

Details

SuperServer SYS-F618H6-FT+ FatTwin 4U Rackmount

Supermicro SYS-F618H6-FT+ FatTwin 4U Rackmount with 2000W Redundant Power Supplies,Intel® C612 chipset and using Supermicro Super X10DRFF-CG Motherboard and
CSE-F414IS3-R2K04BP 4U FatTwin Chassis.

Product SKU
SYS-F618H6-FT+	• SuperServer F618H6-FT+

Motherboard
	Super X10DRFF-CG

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011)
Cores / Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SAS	• SAS3 (12Gbps) via LSI 3008 • SW RAID 0, 1, 10 support
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controller	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output (per node)
SAS	• 8 SAS3 (12Gbps) ports
SATA	• 10 SATA3 (6Gbps) ports
LAN	• 2 RJ45 GbE ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports
VGA	• 1 VGA connector

Chassis
Form Factor	• 4U Rackmount / FatTwin
Model	• CSE-F414IS3-R2K04BP

Dimension and Weight
Height	• 6.96" (177mm)
Width	• 17.63" (448mm)
Depth	• 35" (889mm)
Gross Weight	• 240 lbs (108.86 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • UID button
LEDs	• Power status LED • 2 Network activity LEDs

Expansion Slots (per node)
PCI-Express	• 2 PCI-E 3.0 x8 Low-profile via riser card

Drive Bays (per node)
Fixed	• 8 Fixed 3.5" SAS3/SATA3 + 4 Fixed 3.5" SATA drive bays • Optional 2.5" drives mounted in PCI-E slot

System Cooling
Fans	• 8x 8cm heavy duty fans and PWM fan speed control

Power Supply (76mm Width)
	2000W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/2000W
Dimension (W x H x L)	• 76 x 40.4 x 336 mm
Input	• 100-127 Vac / 12-9.5 A / 50-60 Hz • 200-220 Vac / 10-9.5 A / 50-60 Hz • 220-230 Vac / 10-9.8 A / 50-60 Hz • 230-240 Vac / 10-9.8 A / 50-60 Hz • 200-240 Vac / 11.8-10 A / 50-60 Hz (UL/cUL only)
+12V	• Max: 83.3A & Min: 0A (100-127 Vac) • Max: 150A & Min: 0A (200-220 Vac) • Max: 165A & Min: 0A (220-230 Vac) • Max: 166.7A & Min: 0A (230-240 Vac) • Max: 166.7A & Min: 0A (200-240 Vac)(UL/cUL only)
+5Vsb	• Max: 1A / Min: 0A
Output Type	• 27 Pairs Gold Finger Connector
Certification	• Titanium Level

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment
Environmental Spec.	• Operating Temperature: 10° to 35°C (50° to 95°F) • Non-operating Temperature: -40° to 70°C (-40° to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)
