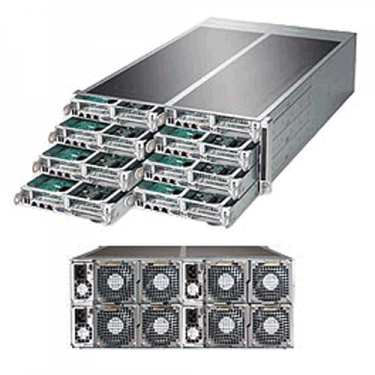

Supermicro 4U Rackmount SuperServer SYS-F617R3-FT+

More Views

  • Supermicro 4U Rackmount SuperServer SYS-F617R3-FT+

Supermicro 4U Rackmount SuperServer SYS-F617R3-FT+

Call for price.
SKU:SYS-F617R3-FT+

Quick Overview:

Key Features:
• 8 Hot-plug System Nodes in 4U
• Dual socket R (LGA 2011) supports Intel® Xeon® processor
• Up to 1TB ECC DDR3; 16x DIMM slots
• Expansion slot: 1 PCI-E 3.0 x16 (LP),
   1 PCI-E 3.0 x8 (LP) via riser card
• 2 Fixed 3.5" SATA HDD Bays
• 1620W Redundant Power Supplies Platinum Level (94%)


Details

Supermicro SuperServer SYS-F617R3-FT+

Product SKU
SYS-F617R3-FT+ • SuperServer F617R3-FT+ (Black)
Motherboard
  • Super X9DRFF-i+
Processor/Cache
CPU • Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 135W TDP *)
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
  † BIOS version 3.0 or above is required
Note Please contact your Will Jaya sales representative for additional details
System Memory (per node)
Memory Capacity • 16x 240-pin DDR3 DIMM slots
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage

• 1.5 V, 1.35 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C602 Chipset
AHCI SATA • SATA 3.0 6Gbps with RAID 0, 1
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC
Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics

• Matrox G200eW
Input/Output (per node)
AHCI SATA • 2x SATA 3.0 ports (6Gbps)
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 2.0 ports
VGA • 1x VGA port
Serial Port/Header




 • 1x Fast UART 16550 port
Chassis
Form Factor • 4U Rackmount
Model • CSE-F418IF-R1K62BP
Dimension and Weight
Width • 17.63" (448mm)
Height • 6.96" (177mm)
Depth • 29" (737mm)
Gross Weight • 200 lbs (90.71 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power status LED
• 2x Network activity LEDs
• System Overheat LED
• Power fail LED
Expansion Slots (per node)
PCI-Express

• 1 PCI-E 3.0 x16 (Low-profile)
• 1 PCI-E 3.0 x8 (Low-profile) via riser card
Drive Bays (per node)
Fixed

• 2x Fixed 3.5" SATA HDD trays
System Cooling
Fans

• 8x 8cm 11k RPM middle fans
Power Supply
  1620W high-efficiency redundant power supply w/ PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
 • 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/150A; +5Vsb/4A
Certification • Platinum Certified
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features • Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
