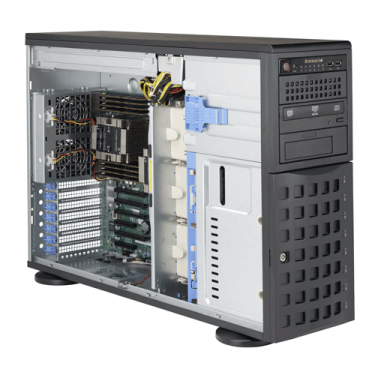

  • Supermicro 4U Rackmount SuperServer SYS-7049P-TRT - Angle

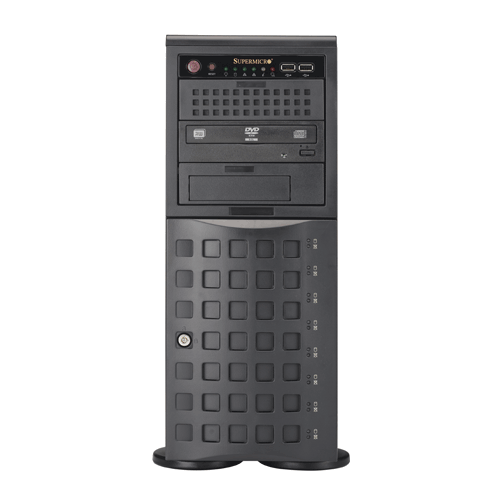

  • Supermicro 4U Rackmount SuperServer SYS-7049P-TRT - Front
  • Supermicro 4U Rackmount SuperServer SYS-7049P-TRT - Side
  • Supermicro 4U Rackmount SuperServer SYS-7049P-TRT - Rear

Supermicro 4U Rackmount SuperServer SYS-7049P-TRT | Intel Xeon Scalable Processors

Call for price.
SKU:SYS-7049P-TRT

Quick Overview:

Key Features:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,
   Dual UPI up to 10.4GT/s
• Up to 2TB ECC 3DS LRDIMM
• 8 Hot-swap 3.5" SATA3 drive bays; RAID 0, 1, 5, 10
• 2x 10GBase-T LAN ports with Intel X722
• 3x 80mm high-performance fans
   2x 80mm PWM Rear Chassis fans
• 1280W Redundant Power Supplies Platinum Level (94%)


Details

Supermicro SuperServer SYS-7049P-TRT

Product SKU
SYS-7049P-TRT • SuperServer 7049P-TRT (Black)
Motherboard
     Super X11DPi-NT
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors,3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 16 DIMM slots
• Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C622 chipset
SATA • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers • Intel® X722 10GBase-T Ethernet Controller
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics

• ASPEED AST2500 BMC
Input/Output
SATA • 8 SATA3 (6Gbps) ports
LAN • 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • Rear USB: 2 USB 3.0 + 2 USB 2.0
• Front USB: 2 USB 2.0
• USB Header: 1 Type A
Video • 1 VGA Port
Serial Port/ Header • 2 Fast UART 16550 serial
• 2 COM Ports (1 rear, 1 header)
DOM • 2 SuperDOM (Disk on Module) ports
System Bios
BIOS Type • AMI UEFI
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
Power
Configurations		 • ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factore • 4U Rackmount/Tower
• Optional Rackmount Kit
Model • CSE-745BAC-R1K28B2
Dimension and Weight
Height • 17.8" (452mm)
Width • 7.0" (178mm)
Depth • 25.5" (648mm)
Gross Weight • 73.5 lbs (33.6 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
• Power Fail LED
Ports • 2 USB Ports
Expansion Slots
PCI-Express

• 4 PCI-E 3.0 x16 slots
• 2 PCI-E 3.0 x8 slots
• Support total of 6 Full-height AOC
Drive Bays
Hot-swap

• 8 Hot-swap 3.5" SATA3 drive bays
Peripheral Bays  • 3 Peripheral 5.25" drive bays
SAS/SATA Backplane


•SAS / SATA Hard Drive Backplane w/AMI MG9072
System Cooling
Fans

• 3x 80mm high-performance fans
• 2x 80mm PWM Rear Chassis fans
Power Supply
  1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input • 1000W Output @ 100-140V, 8-12A, 50-60Hz
• 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output • 1000W: +12V/83A; +5Vsb/4A
• 1280W: +12V/106.7A, +5Vsb/4A
Certification • Platinum Certified
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec.













 • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
