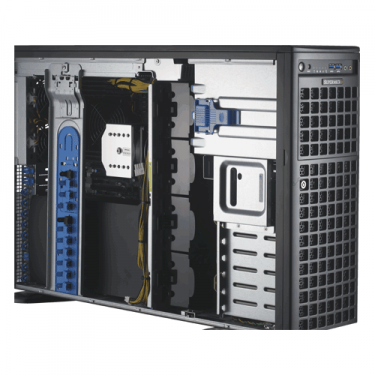

Supermicro 4U Rackmount SuperServer SYS-7049GP-TRT - Angle

More Views

Supermicro 4U Rackmount SuperServer SYS-7049GP-TRT | Intel Xeon Scalable Processors

Call for price.

SKU:SYS-7049GP-TRT

Quick Overview:

Key Features:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,
3 UPI up to 10.4GT/s
• Up to 2TB ECC 3DS LRDIMM
• 8 Hot-swap 3.5" drive bays
• 2x 10GBase-T LAN ports via Intel X550
• 4 Heavy duty fans, 4 exhaust fans, and 2 active heatsink with optimal
fan speed control
• 2200W Redundant Power Supplies Titanium Level (96%)

Description

Details

Supermicro SuperServer SYS-7049GP-TRT

Product SKU
SYS-7049GP-TRT	• SuperServer 7049GP-TRT (Black)

Motherboard
	Super X11DPG-QT

Processor/Cache
CPU	• Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors,3 UPI up to 10.4GT/s • Support CPU TDP 70-205W
Cores	• Up to 28 Cores with Intel® HT Technology
GPU Support	• Please contact Will Jaya support team

System Memory
Memory Capacity	• 16 DIMM slots • Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	• 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset	• Intel® C621 chipset
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers	• Intel® X550 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	• ASPEED AST2500 BMC

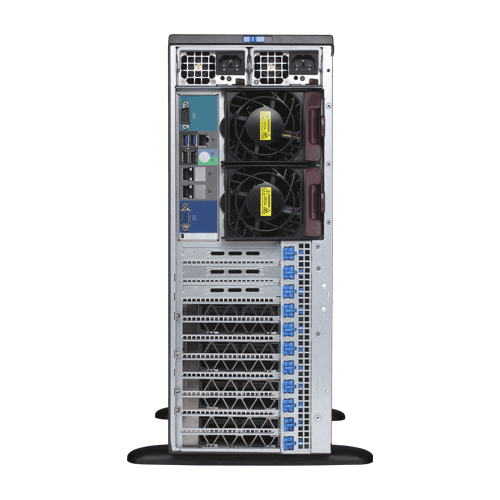

Input/Output
SATA	• 10 SATA3 (6Gbps) ports
LAN	• 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) • 4 USB 2.0 ports (2 rear, 2 via headers)
Video	• 1 VGA Connector
COM Port	• 2 COM ports (1 rear, 1 Header)

System Bios
BIOS Type	• AMI 32Mb SPI Flash ROM

Management
Software	• Intel® Node Manager • IPMI 2.0 • SSM, SPM, SUM • SuperDoctor® 5

PC Health Monitoring
CPU	• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator
FAN	• Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors

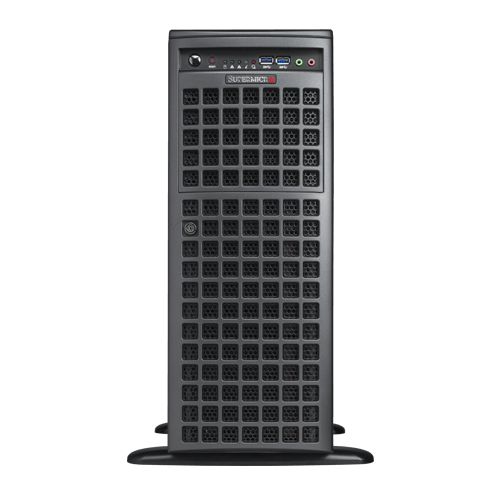

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • Network activity LEDs • System Overheat & Power Fail LED
Ports	• 2 Front USB 3.0 Ports

Chassis
Form Factore	• 4U Rackmount • Optional Rackmount Kit
Model	• CSE-747BTS-R2K20BP

Dimension and Weight
Height	• 18.2" (462mm)
Width	• 7.0" (178mm)
Depth	• 26.5" (673mm)
Gross Weight	• 62 lbs (28.1 kg)
Available Colors	• Dark Gray

Expansion Slots
PCI-Express	• 4 PCI-E 3.0 x16 (double-width) slots • 2 PCI-E 3.0 x16 (single-width) slots • 1 PCI-E 3.0 x4 (in x8 slot)
M.2	• M.2 Interface: PCI-E 3.0 x4 • Form Factor: 2280, 22110

Drive Bays
Hot-swap	• 8 Hot-swap 3.5" drive bays

System Cooling
Fans	• 4 Heavy duty fans • 2 Rear exhaust fans • 2 Optional Rear fans (required for Passive GPUs)
Heatsink	• 2 Active heatsink with optimal fan speed control

Power Supply
	2200W or 2000W Redundant Power Supplies with PMBus
Total Output Power and Input	• 1200W with Input 100-127Vac • 1800W with Input 200-220Vac • 1980W with Input 220-230Vac • 2090W with Input 230-240Vac • 2200W with Input 220-240Vac (for UL/cUL use only) • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency	• 50-60Hz
Dimension (W x H x L)	• 76 x 40 x 336 mm
+12V	• Max: 100A / Min: 0A (100-127Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 174.17A / Min: 0A (230-240Vac) • Max: 183.3A / Min: 0A (220-240Vac)
5VSB	• Max: 1A / Min: 0A
Output Type	• Backplanes (gold finger)
Certification	• Titanium Level

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
