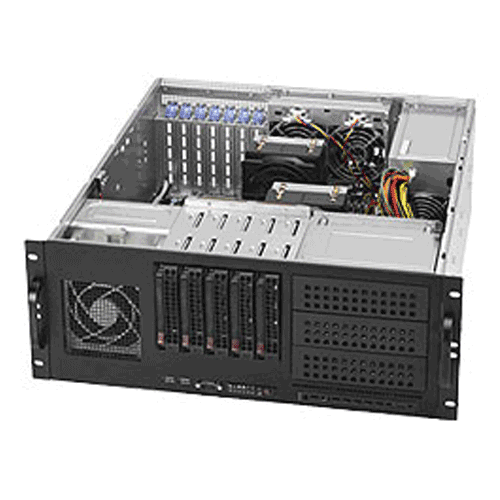

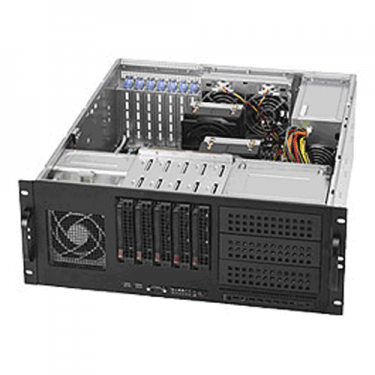

Supermicro 4U Rackmount SuperServer SYS-6046T-TUF

Call for price.

SKU:SYS-6046T-TUF

Quick Overview:

Key Features:
• Embedded IPC Optimized
• Intel® 5520 (Tylersburg) Chipset
• 5x Hot-swap 3.5" SATA HDD;
   3x 5.25" Peripheral bays;
   opt. Slim DVD drive
• Supports up to 192 GB of memory
• 4 (x8) PCI-E 2.0, 1 (x4) PCI-E 2.0
   and 1 (x4) PCI-E slot
• 865W High-efficiency Power Supply

Description

Details

Supermicro SuperServer SYS-6046T-TUF

Product SKU
SYS-6046T-TUF	• SuperServer 6046T-TUF (Black)

Motherboard
	• Super X8DTE-F

Processor/Cache
CPU	• Dual 1366-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Intel® Xeon®Processor 5600 Series (Westmere) • Intel® Xeon®Processor 5500 Series (Nehalem-EP)
QPI	• up to 6.4 GT/s

System Memory
Memory Capacity	• 12x 240-pin DIMM slots • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory • Memory Mirroring supported
Memory Type	• 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage	• 1.5 V / 1.35V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® 5520 (Tylersburg) chipset • ICH10R + IOH-36D
SATA	• Intel ICH10R SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support (Windows) • RAID 0, 1, 10 support (Linux)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Controllers	• 2x Intel® 82574L Gigabit Ethernet Controllers • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• Matrox G200eW 16 MB DDR2
Super I/O	• Winbond 83827HF chip

Expansion Slots
PCI-Express	• 4 (x8) PCI-E 2.0 slots • 1 (x4) PCI-E 2.0 slot • 1 (x4) PCI-E slot

Input/Output
Serial ATA	• Six Serial ATA ports • Six SATA hard drives supported
Floppy	• 1 Floppy controller; 1.44 MB
LAN	• 2x RJ45 LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 4x USB rear ports • 2x USB on-board (TypeA) • 4x USB internal headers • Total 8 USB 2.0 Compliant
VGA	• 1x VGA Port
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Port/Header	• 1 Fast UART 16550 serial port • 1 Fast UART 16550 serial header (Option)

System BIOS
BIOS Type	• 32Mb SPI Flash EEPROM with AMI® BIOS • Legacy BIOS by default
BIOS Features	• Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-842TQ-865B

Dimension and Weight
Height	• 7.0" (178mm)
Width	• 17.2" (437mm)
Depth	• 20.5" (521mm)
Gross Weight	• 35 lbs (15.9 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power Fail LED
Ports	• 2x USB ports, 1x COM port

Drive Bays
Hot-swap	• 5x 3.5" (8x 2.5" optional kits; SATA Hot-swap Drive Bays) • Enterprise SATA HDD only recommended
Peripheral Bay(s)	• 3x 5.25" Peripheral Drive Bays • 1x Slim DVD-ROM (optional) Drive Bay

SAS / SATA Backplane
	• SAS / SATA Hard Drive Backplane

System Cooling
Fans (Tool-less)	• 1x Front Intake 9cm PWM cooling fan • 2x Rear 8cm PWM cooling fans

Power Supply
	865W AC power supply (cooling-redundant) w/ PFC
AC Voltage	• ##100 - 240V, 50-60Hz, 12-6 Amp
+5V standby	• ##6.5 Amp
+12V	• ##70 Amp
+5V	• ##30 Amp
+3.3V	• ##30 Amp
-12V	• ##1 Amp
Certification	• 80Plus Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator
FAN	• Total of eight fan headers supporting up to 8 fans • Eight 4-pin fan headers • 8x fans with tachometer status monitoring • Support 3-pin fans (w/o speed control) • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI
Other Features	• Chassis intrusion detection • Chassis intrusion header

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
