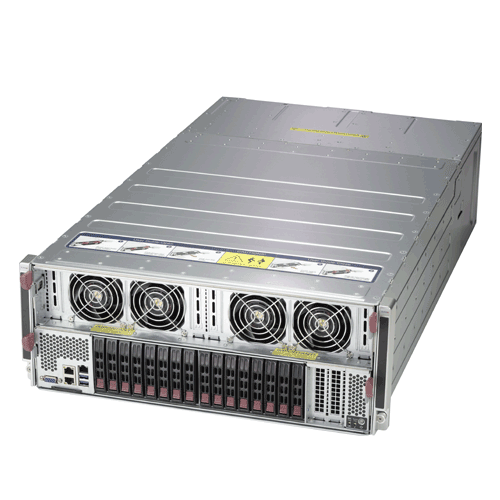

Supermicro 4U Rackmount SuperServer SYS-4029GP-TVRT - Angle

More Views

  • Supermicro 4U Rackmount SuperServer SYS-4029GP-TVRT - Top

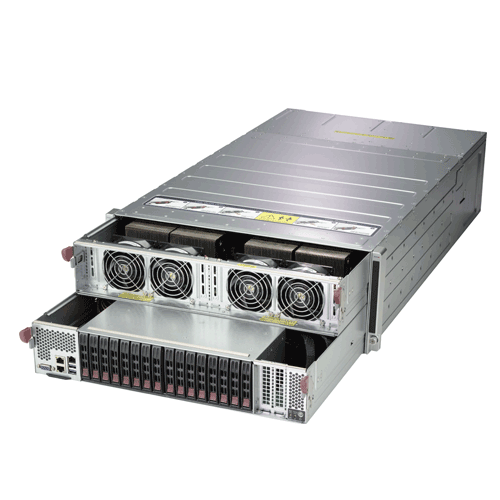

  • Supermicro 4U Rackmount SuperServer SYS-4029GP-TVRT - Angle

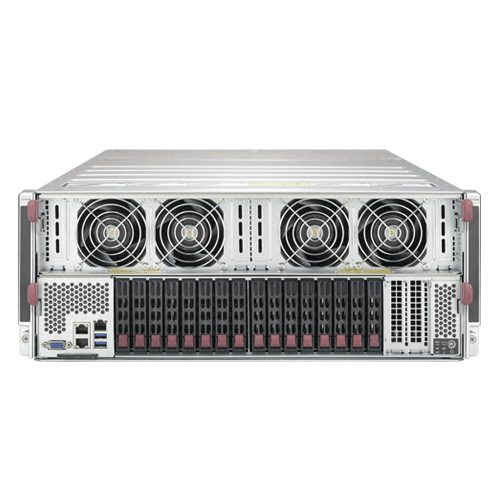

  • Supermicro 4U Rackmount SuperServer SYS-4029GP-TVRT - Front

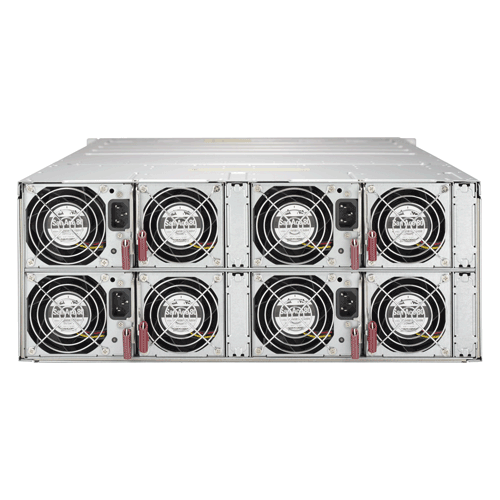

  • Supermicro 4U Rackmount SuperServer SYS-4029GP-TVRT - Rear

Supermicro 4U Rackmount SuperServer SYS-4029GP-TVRT | Intel Xeon Scalable Processors

Call for price.
SKU:SYS-4029GP-TVRT

Quick Overview:

Key Features:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
• Up to 3TB ECC 3DS LRDIMM
• 16 Hot-swap 2.5" SAS/SATA drives; Supports 8 NVMe drives
• Support 8 Tesla V100 with 300GB/s NVLINK
• 8x 92mm cooling fans
• 2200W Redundant (2+2) Power Supplies; Titanium Level (96%+)


Details

Supermicro SuperServer SYS-4029GP-TVRT

Product SKU
SYS-4029GP-TVRT • SuperServer 4029GP-TVRT (Black)
Motherboard
     Super X11DGO-T
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
GPU Support • NVIDIA Tesla V100 SXM2 GPU
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers • Dual Port 10GBase-T from Intel X540 Ethernet Controller
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics

• ASPEED AST2500 BMC
Input/Output
SATA • 8 SATA3 (6Gbps) ports
LAN • 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (front)
Video • 1 VGA Connector
COM Port • 1 COM port (header)
System Bios
BIOS Type • AMI 32Mb SPI Flash ROM
BIOS Features • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• Watch Dog
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec.




 • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
Chassis
Form Factore • 4U Rackmount
• Rackmount Kit (MCP-290-00057-0N)
Model • CSE-R422BG-1
Dimension and Weight
Height • 7.0" (178mm)
Width • 17.6" (447mm)
Depth • 31.7" (805mm)
Gross Weight • 135 lbs (61.2 kg)
Available Colors • Black
Drive Bays
Hot-swap

• 16 Hot-swap 2.5" SAS/SATA drive bays
Expansion Slots
PCI-Express

• 4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA) slots
• 2 PCI-E 3.0 x16 (LP, CPU tray) slots or up to 8x 2.5" NVMe Storage Devices
M.2 • M.2 Interface: 2 PCI-E 3.0 x4
• Form Factor: 2260, 2280, 22110
Backplane


• 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5" SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
System Cooling
Fans

• 8x 92mm Cooling Fans
• 4x 80mm Cooling Fans
Power Supply
  2200W Redundant Titanium Level Power Supplies with PMBus
Total Output Power • 1200W/1800W/1980W/2090W/2200W (UL/cUL only)
Dimension
(W x H x L)		 • 106.5 x 82.4 x 203.5 mm
Input • 1200W: 100-127 Vac / 14-11 A / 50-60 Hz
• 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
• 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz
• 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz
• 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only)
• 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only)
• 2090W: 230-240 Vdc / 10-9.8 A (CCC only)
+12V • Max: 100A / Min: 0A (1200W)
• Max: 150A / Min: 0A (1800W)
• Max: 165A / Min: 0A (1980W)
• Max: 174.17A / Min: 0A (2090W)
• Max: 183.3A / Min: 0A (2200W)
• Max: 174.17A / Min: 0A (2090W)
12VSB • Max: 2A / Min: 0A
Output Type • Gold Finger (connector on M/P)
Certification • Titanium Level
