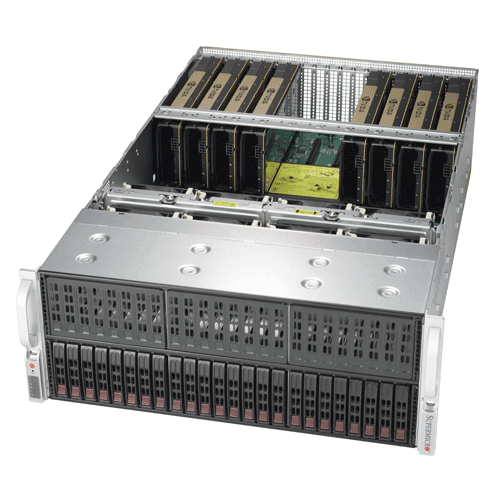

Supermicro 4U Rackmount SuperServer SYS-4029GP-TRT - Angle

More Views

Supermicro 4U Rackmount SuperServer SYS-4029GP-TRT | Intel Xeon Scalable Processors

Call for price.

SKU:SYS-4029GP-TRT

Quick Overview:

Key Features:
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,
   3 UPI up to 10.4GT/s
• Up to 3TB ECC 3DS LRDIMM
• Up to 24 Hot-swap 2.5" drive bays;
   10x 2.5" drives supported natively,
   1x M.2 port
• 8 PCI-E 3.0 x16 slots (support up to 8 double width GPU),
• 8 Hot-swap 92mm RPM cooling fans
• 2000W (2+2) Redundant Power Supplies Titanium Level (96%+)

Description

Details

Supermicro SuperServer SYS-4029GP-TRT

Product SKU
SYS-4029GP-TRT	•SuperServer 4029GP-TRT (Black)

Motherboard
	Super X11DPG-OT-CPU

Processor/Cache
CPU	• Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors,3 UPI up to 10.4GT/s • Support CPU TDP 70-205W
Cores	• Up to 28 Cores with Intel® HT Technology
GPU Support	• Please contact Will Jaya support team

System Memory
Memory Capacity	• 24 DIMM slots • Up to 3TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type	• 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset	• Intel® C622 chipset
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers	• Dual Port 10GbE from C622
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	• ASPEED AST2500 BMC

Input/Output
SATA	• 10 SATA3 (6Gbps) ports
LAN	• 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 4 USB 3.0 ports (rear)
Video	• 1 VGA Connector
COM Port	• 1 COM port (rear)

System Bios
BIOS Type	• AMI 32Mb SPI Flash ROM

Management
Software	• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • SSM, SPM, SUM • SuperDoctor® 5 • Watchdog

PC Health Monitoring
CPU	• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator
FAN	• Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors

Chassis
Form Factore	• 4U Rackmount • Rackmount Kit (MCP-290-00057-0N)
Model	• CSE-418GTS-R4000B

Dimension and Weight
Height	• 7.0" (178mm)
Width	• 17.2" (437mm)
Depth	• 29" (737mm)
Gross Weight	• 100 lbs (45.3 kg)
Available Colors	• Black

Drive Bays
Hot-swap	• Up to 24x 2.5" SAS/SATA drive bays • 8x 2.5" SAS/SATA supported natively • 2x 2.5" NVMe supported natively
M.2	• 1 M.2 NVMe (2260/2280/22110)

Expansion Slots
PCI-Express	• 8 PCI-E 3.0 x16 (double-width) slots • 2 PCI-E 3.0 x8 slots • 1 PCI-E 2.0 x4 slot

System Cooling
Fans	• 8 Hot-swap 92mm cooling fans
Shrouds	• 1 Air Shroud (MCP-310-41808-0B)

Power Supply
	2000W Redundant Power Supplies with PMBus
Total Output Power	• 1000W/1800W/1980W/2000W
Dimension (W x H x L)	• 73.5 x 40 x 265 mm
Input	• 100-120Vac / 12.5-9.5A / 50-60Hz • 200-220Vac / 10-9.5A / 50-60Hz • 220-230Vac / 10-9.8A / 50-60Hz • 230-240Vac / 10-9.8A / 50-60Hz • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V	• Max: 83.3A / Min: 0A (100-120Vac) • Max: 150A / Min: 0A (200-220Vac) • Max: 165A / Min: 0A (220-230Vac) • Max: 166.7A / Min: 0A (230-240Vac) • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12VSB	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Titanium Level

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
