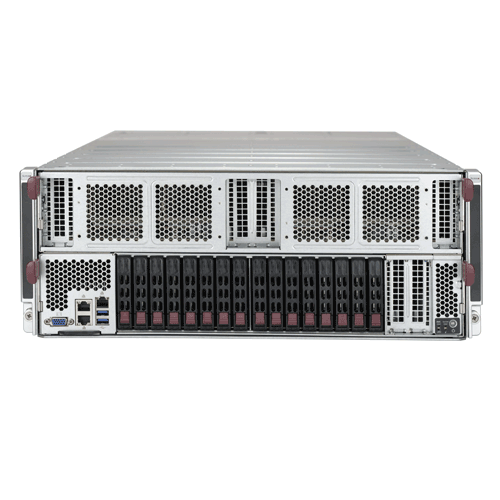

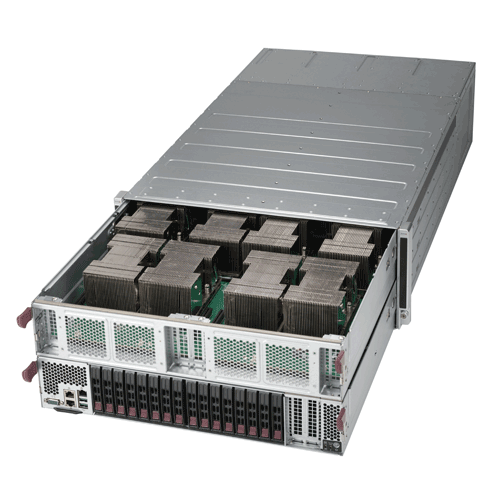

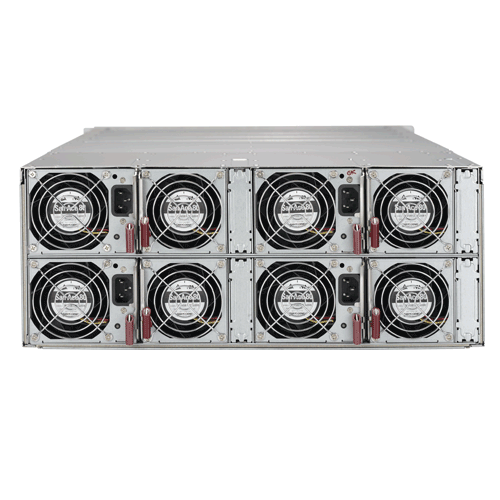

Supermicro 4U Rackmount SuperServer SYS-4028GR-TXRT

Call for price.

SKU:SYS-4028GR-TXRT

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 3TB† ECC 3DS LRDIMM; 24x DIMM slots
• Dual 10GBase-T LAN with Intel® X540
• 16 Hot-swap 2.5" SATA/SAS drives; Supports 8 NVMe drives
• 8x 92mm cooling fans
• 2200W Redundant (2+2) Power Supplies; Titanium Level (96%+)

Description

Details

Supermicro SuperServer SYS-4028GR-TXRT

Product SKU
SYS-4028GR-TXRT	• SuperServer 4028GR-TXRT (Black)

Motherboard
	• Super X10DGO-T

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
	† BIOS version 2.0 or above is required
Notes	Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
GPU	• 8 NVIDIA® Tesla® P100 SXM2 • NVIDIA® NVLINK™ up to 80GB/s

System Memory
Memory Capacity	• 24x 288-pin DDR4 DIMM slots • Up to 3TB† ECC 3DS LRDIMM, 2TB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Dual Port 10GbE with Intel X540 Ethernet Controller • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	• ASPEED AST2400 BMC

Input/Output
SATA	• 10 SATA3 (6Gbps) ports
LAN	• 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports
Video	• 1 VGA Connector
Serial Port	• 1 Serial header

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI

Chassis
Form Factor	• 4U Rackmountable • Rackmount Kit (MCP-290-31401-0N)
Model	• CSE-R422BG-2

Dimension and Weight
Height	• 7.0" (178mm)
Width	• 17.6" (447mm)
Depth	• 31.7" (805mm)
Gross Weight	• 135 lbs (61.2 kg)
Available Colors	• Black

Drive Bays
Hot-swap	• 16 Hot-swap 2.5" SATA/SAS drive bays

Expansion Slots
PCI-Express	• 4 PCI-E 3.0 x16 (low-profile) slots • 2 PCI-E 3.0 x8 slots
M.2	• M.2 Interface: PCI-E 3.0 x4 • Form Factor: 2260, 2280, 22110

System Cooling
Fans	• 8x 92mm Cooling Fans
Shrouds	• 1 Air Shroud (MCP-310-41808-0B)

Power Supply
	2200W Redundant Titanium Level Power Supplies with PMBus
Total Output Power	• 1200W/1800W/1980W/2090W/2200W (UL/cUL only)
Dimension (W x H x L)	• 106.5 x 82.4 x 203.5 mm
Input	• 1200W: 100-127 Vac / 14-11 A / 50-60 Hz • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz • 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz • 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz • 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only) • 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only) • 2090W: 230-240 Vdc / 10-9.8 A (CCC only)
+12V	• Max: 100A / Min: 0A (1200W) • Max: 150A / Min: 0A (1800W) • Max: 165A / Min: 0A (1980W) • Max: 174.17A / Min: 0A (2090W) • Max: 183.3A / Min: 0A (2200W) • Max: 174.17A / Min: 0A (2090W)
12Vsb	• Max: 2A / Min: 0A
Output Type	• Gold Finger (connector on M/P)
Certification	• Titanium Level

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
