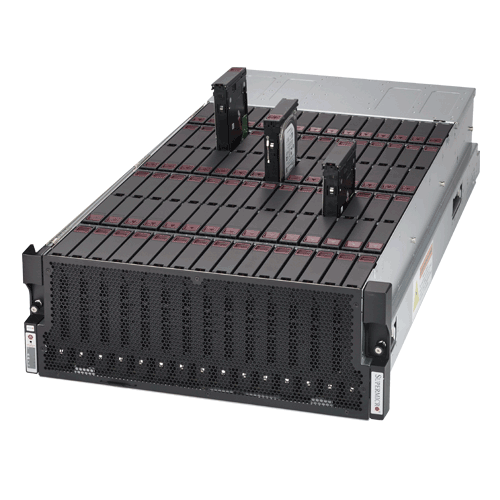

Supermicro 4U Rackmount SuperStorage SSG-6048R-E1CR90L - Angle

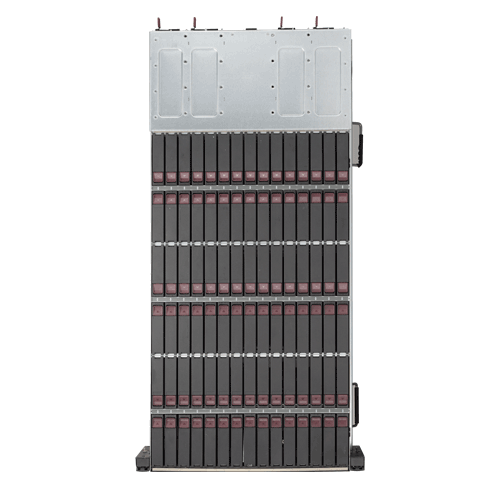

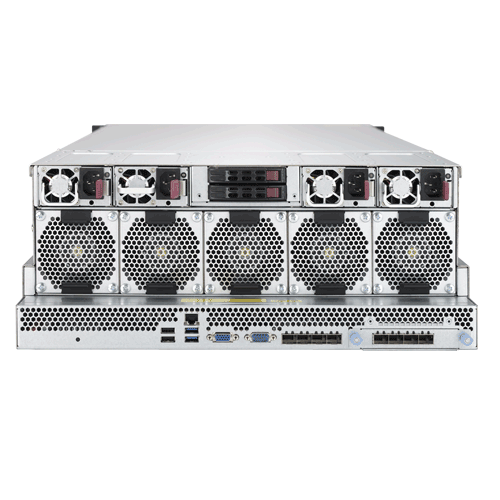

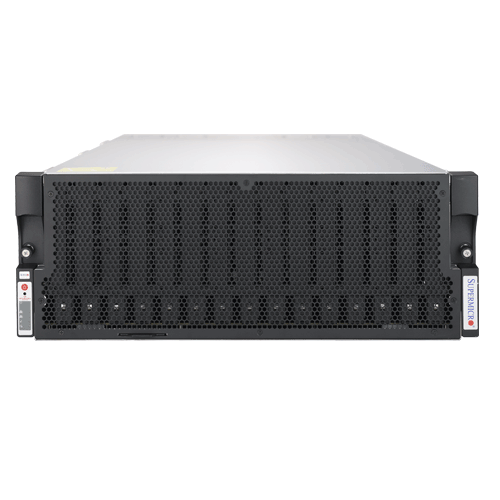

More Views

Supermicro 4U Rackmount SuperServer SSG-6048R-E1CR90L

Call for price.

SKU:SSG-6048R-E1CR90L

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
   family; QPI up to 9.6GT/s
• Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x
   DIMM slots
• SIOM card for multiple IO options
• Dual 10GBase-T LAN w/ Intel®X540
• 90x 3.5" Hot-swap SAS3/SATA3 drive bays; 2x 2.5" rear Hot-swap SATA
   drive bays
• 2 Onboard LSI 3008 SAS3 controllers
• Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
• 5x 8cm hot-swap redundant PWM fans
• 4x 1000W Redundant Power Supplies Titanium Level (96%) Certified

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and 45 HDDs). Please contact your Supermicro sales rep for special requirements.

Description

Details

Superworkstation SSG-6048R-E1CR90L

Supermicro SSG-6048R-E1CR90L 4U Rackmount SuperServer with 4x 1000W Redundant Power Supplies Titanium Level, Intel® C612 Chipset support 90x 3.5" Hot-swap SAS3/SATA3
drive bay and 2x 2.5" rear Hot-swap SATA drive bays using Supermicro Super X10DSC-TP4S Server Motherboard and CSE-946E1C-R3KB 4U Rackmount Chassis.

Product SKU
SSG-6048R-E1CR90L	• SuperServer 6048R-E1CR90L (Black)

Motherboard
	Super X10DSC-TP4S

Processor/Cache
CPU	• Dual Socket R3 (LGA 2011) • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
Note	• † BIOS version 2.0 or above is required
	* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 8x 288-pin DDR4 DIMM slots • Up to 1TB† ECC 3DS LRDIMM, 256GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 Chipset
SAS	• 2 Onboard LSI 3008 SAS3 controllers
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controller	• Quad LAN with Intel® XL710 10G SFP+ • SIOM card for multiple IO options
Graphics	• ASPEED AST2400 BMC

Input/Output (per node)
LAN	• 4 10G SFP+ LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear) • 4 USB 2.0 ports (2 rear + 2 via headers)
VGA	• 1x VGA port
Serial Port/Header	• 1 Fast UART 16550 port / 1 Header

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-946E1C-R3KB

Dimension and Weight
Height	• 7" (178mm)
Width	• 17.6" (447mm)
Depth	• 35.66" (906mm)
Gross Weight	• 235 lbs (106.6 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • Unit Identification (UID) button
LEDs	• Power LED • Hard drive activity LED • Network activity LEDs • System information LED • Power fail LED

Drive Bays (per node)
Hot-swap	• 90x 3.5" Hot-swap SAS3/SATA3 drive bays • 2x 2.5" rear Hot-swap SATA drive bays

Backplane
	• ckplane SAS3/SATA3 single expander per backplane

System Cooling
Fans	• 5x 8cm hot-swap redundant PWM cooling fans

Power Supply
	1000W Redundant Power Supplies with PMBus
Total Output Power	• 800W/1000W
Dimension (W x H x L)	• 73.5 x 40 x 185 mm
Input	• 100-127Vac / 9.8 - 7A / 50-60Hz • 200-240Vac / 7 - 5A / 50-60Hz
+12V	• Max: 66.7A / Min: 0A (100-127Vac) • Max: 83A / Min: 0A (200-240Vac)
12Vsb	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Titanium Level

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
