Details

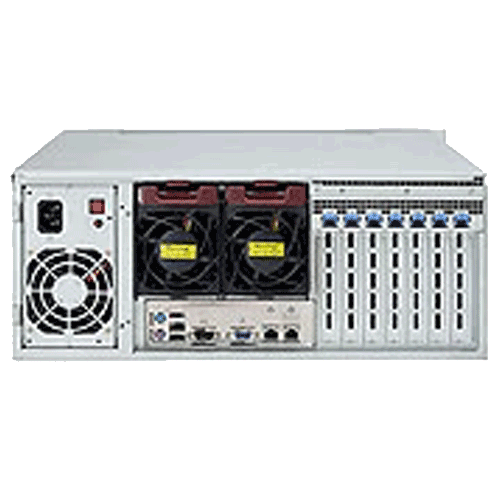

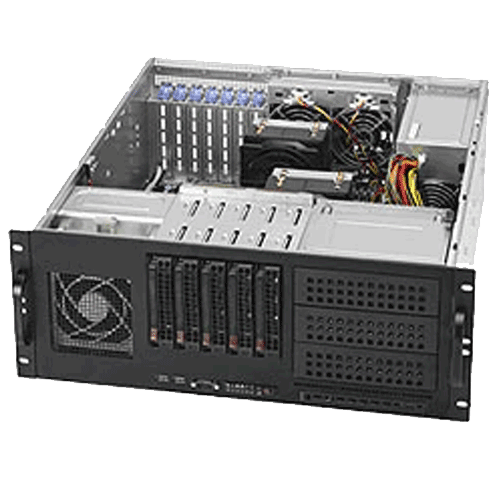

Supermicro 4U Rackmount Embedded Chassis CSE-842TQ-865B
|
Product SKU
| |
|---|---|
| CSE-842TQ-865B | • SuperChassis 842TQ-865B |
|
Form Factor
| |
|---|---|
| • 4U rackmount chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX/ATX/MicroATX | |
| Processor Support
|
|
|---|---|
| • Dual and Single Intel® and AMD processors | |
|
Dimension
| |
|---|---|
| Height | • 7" (178 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 20.5" (521 mm) |
| Gross Weight | • 25 lbs (11.34 kg) |
| Colot |
• Black |
|
Expansion Slots
| • 7 full-height & full-length expansion slot(s) |
|---|
|
Drive Bays
| • 5 x 3.5" hot-swap SAS/SATA |
|---|
|
Back Plane
| • 5-port 4U SC842 rackmount chassis SAS backplane (w/ enclosure management), support up to 5x 3.5-inch SAS/SATA HDD |
|---|
|
Peripheral Drives
| |
|---|---|
| • 3 x standard 5.25" drive bay | |
|
System Cooling
| |
|---|---|
| Fans | • 1 x 9cm hot-swap cooling fan(s) |
|
System Monitoring
| |
|---|---|
• Chassis intrusion switch |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
