Details
|
Product SKU
| |
|---|---|

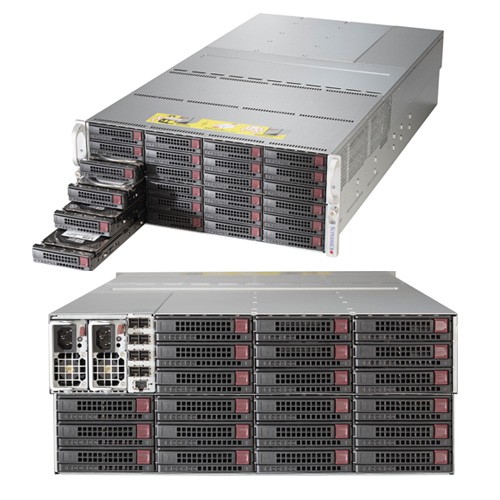

| CSE-847DE1C-R2K04JBOD | • SuperChassis 847DE1C-R2K04JBOD |
|
Form Factor
| |
|---|---|
| • 4U Double-Density SAS3 JBOD storage chassis | |
|
Dimensions
| |
|---|---|
| Height | • 7" (178 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 35" (889 mm) |
| Gross Weight | • 118 lbs (53.52 kg) |
| Available Color | • Black |
|
Drive Bays
| • 90 x 3.5" hot-swap SAS/SATA drive bay with SES3 • 90x 3.5" HDDs in 45x Hot-swap drive bays (2x HDD per bay) SAS or enterprise SATA HDD only recommended |
|---|
|
Backplane
| • 48-port SC847D SAS3 12Gbps front expander board (cascade type configuration) • 48-port 4U SC847D SAS2/SAS3 system/JBOD front midplane, support up to 48x 3.5-inch SAS2/SAS3/SATA3 HDD • 42-port 4U SC847D SAS2/SAS3 JBOD rear midplane, support up to 42x 3.5-inch SAS2/SAS3/SATA3 HDD |
|---|
|
Front Panel
| Buttons | • Power On/Off button • System Reset Button • Unit Identification (UID) button |
LEDs
|
• 1 Network Activity LEDs |
|---|
|
System Cooling
| |
|---|---|
| Fans | • 7 x 92mm hot-swap fan(s) |
|
System Monitoring
| |
|---|---|
• IPMI |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 2000W Titanium Redundant Power Supply W/PMbus |
|
| Power Efficiency | • 96% |
| Total Output Power and Input |
• 1000W with Input 100 - 127Vac |
| AC Input Frequency |
• 50-60Hz |
| Dimensions (L x W x H) |
• 336 x 76 x 40 mm |
| Output Type | • Backplanes (gold finger) |
| +12V | • Max: 83.3A (100Vac - 127Vac) |
| +5Vsb | • Max: 1A / Min: 0A |
| Power Distributor | • PDB-PT847-B3824 |
| Certification | • Titanium Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
