Details
|
Product SKU
| |
|---|---|

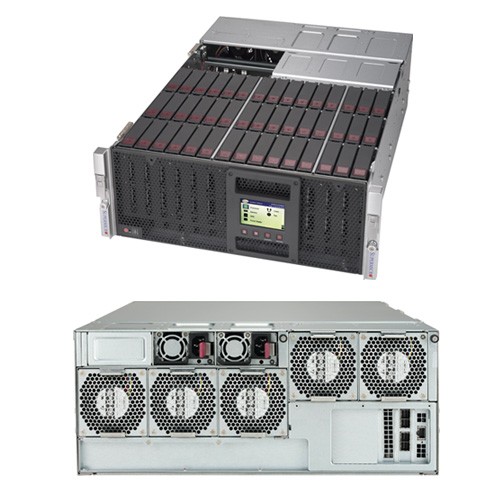

| CSE-946LE1C-R1K66JBOD | • SuperChassis 946LE1C-R1K66JBOD |
|
Form Factor
| |
|---|---|
| • 4U JBOD storage chassis | |
|
Dimensions
| |
|---|---|
| Height | • 7" (178 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 26" (660 mm) |
| Gross Weight | • 120 lbs (54.43 kg) |
| Available Color | • Black |
|
Qualified SAS Controllers
| • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller |
|---|
|
Drive Bays
| • 45 x 3.5" hot-swap SAS/SATA drive bay with SES3 |
|---|
|
Backplane
| • 45-port 4U SC946L Top-load SAS3 12Gbps expander backplane, support up to 45x 3.5-inch SAS3/SATA3 HDD/SSD |
|---|
|
Front Panel
| Buttons | • Power On/Off button • Unit Identification (UID) button |
LEDs |
• 1 Network Activity LEDs • Power Status LED • Power Fail LED • System Information LED |
|---|
|
System Cooling
| |
|---|---|
| Fans | • 5 x 80mm rear hot-swap exhaust PWM fan(s) |
|
System Monitoring
| |
|---|---|
• IPMI |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 60°C (-40°F - 140°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1600W redundant power supply, Platinum level with PMBus & I2C |
|
| Power Efficiency | • 94% |
| Total Output Power and Input |
• 1000W with Input 100 - 127Vac |
| AC Input Frequency |
• 50-60Hz |
| Dimensions (L x W x H) |
• 265 x 73.5 x 40 mm |
| Output Type | • Backplanes (gold finger) |
| +12V | • Max: 132A / Min: 0.1A (200Vac - 240Vac) |
| +12Vsb | • Max: 2A / Min: 0.2A |
| Power Distributor | • PDB-PT946S-L824 |
| Certification | • Platinum Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
