Details
|
Product SKU
| |
|---|---|

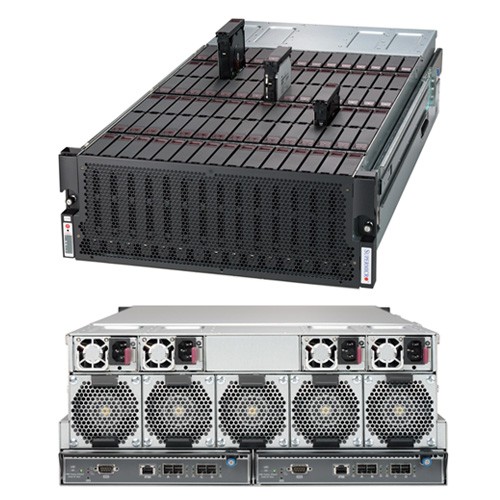

| CSE-946ED-R2KJBOD | • SuperChassis 946ED-R2KJBOD |
|
Form Factor
| |
|---|---|
| • 4U JBOD storage chassis | |
|
Dimensions
| |
|---|---|
| Height | • 7" (178 mm) |
| Width | • 17.6" (447 mm) |
| Depth | • 35.66" (906 mm) |
| Gross Weight | • 225 lbs (102.06 kg) |
| Available Color | • Black |
|
Qualified SAS Controllers
| • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller |
|---|
|
Drive Bays
| • 90 x 3.5"/2.5" hot-swap SAS drive bay with SES3 |
|---|
|
Front Panel
| Buttons | • Power On/Off button • Unit Identification (UID) button |
LEDs |
• 2 Network Activity LEDs • Power Fail LED • System Information LED • Unit Identification (UID) LED |
|---|
|
System Cooling
| |
|---|---|
| Fans | • 5 x 80mm heavy duty fan(s) with PWM fan(s) speed control |
|
System Monitoring
| |
|---|---|
• IPMI |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 1000W Redundant Single Output Power Supply Titanium Level |
|
| Power Efficiency | • 96% |
| Total Output Power and Input |
• 800W with Input 100 - 127Vac |
| AC Input Frequency |
• 50-60Hz |
| Dimensions (L x W x H) |
• 185 x 73.5 x 40 mm |
| Output Type | • Backplanes (gold finger) |
| +12V | • Max: 66.7A (100Vac - 127Vac) |
| +5Vsb | • Max: 2.1A |
| Power Distributor | • PDB-PT946-S616 |
| Certification | • Titanium Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
