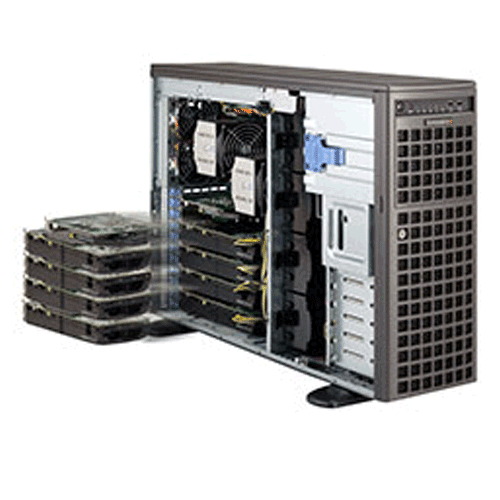

Supermicro 4U GPU Rackmountable SuperWorkstation SYS-7047GR-TRF

More Views

Supermicro 4U GPU Rackmountable SuperWorkstation SYS-7047GR-TRF

Description

Details

Supermicro 4U GPU Rackmountable SuperWorkstation SYS-7047GR-TRF

Product SKU
SYS-7047GR-TRF	• SuperServer 7047GR-TRF (Black)

Motherboard
	• Super X9DRG-QF

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 150W TDP) • Dual Socket R (LGA 2011)
Cache	• Up to 20MB
System Bus	• QPI up to 8 GT/s
GPU	• Supports C2075, up to 150W CPU at 35°C • K20C (Kepler), up to 150W CPU at 35°C
Note	† BIOS version 3.0 or above is required

System Memory
Memory Capacity	• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 192GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 Chipset
SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Renesas SH7757 BMC
Network Controllers	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Video	• G200 (Renesas SH7757 BMC with graphic controller)
Super I/O	• Nuvoton W83527

Input/Output
SATA	• 2x SATA 3.0 ports (6Gbps) • 8x SATA 2.0 ports (3Gbps)
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A)
Video	• 1x VGA port
Serial Port/Header	• 1x Fast UART 16550 port / 1 Header

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Chassis
Form Factor	• 4U Rackmountable / Tower • Optional Rackmount Kit
Model	• CSE-747TQ-R1620B

Dimension and Weight
Height	• 18.2" (462mm)
Width	• 7" (178mm)
Depth	• 26.5" (673mm)
Gross Weight	• 62 lbs (28.1kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat & Power Fail LED
Port	• 2x Front USB 2.0 Ports

Drive Bays
Hot-swap	• 8x 3.5" Hot-swap SAS/SATA Drive Trays
Peripheral Bay(s)	• 3x 5.25" drive bays in storage module - rotates 90° for Rackmount • 1x 3.5" fixed drive bay

Expansion Slots
PCI-Express	• 4 PCI-E 3.0 x16 (double-width) • 2 PCI-E 3.0 x8 (1 in x16 slot) • 1 PCI-E 2.0 x4 (in x8)

SAS / SATA Backplane
	• SAS / SATA Hard Drive Backplane with SES2

System Cooling
Fans	• 4x 92x38mm 4-pin PWM Middle Cooling Fans • 2x 80x38mm 4-pin PWM Rear Exhaust Fans

Power Supply
	1620W high-efficiency redundant power supply w/ PMBus
AC Input	• 1000W Output @ 100-120V, 12-10A, 50-60Hz • 1200W Output @ 120-140V, 12-10A, 50-60Hz • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output	• 1000W: +12V/84A; +5Vsb/4A • 1000W: +12V/84A; +5Vsb/4A ##1200W: +12V/100A; +5Vsb/4A • 1620W: +12V/150A; +5Vsb/4A
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator
FAN	• Total of eight fan headers supporting up to 8 fans • 8x fans with tachometer status monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • Thermal Monitor 2 (TM2) support • PECI
LED	• CPU / System Overheat LED • Suspend static indicator LED • UID/Remote LED
Other Features	• Chassis intrusion detection • Chassis intrusion header

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
