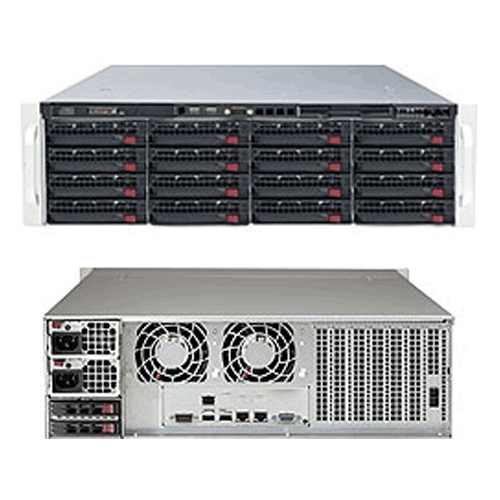

Supermicro SuperStorage SSG-6039P-E1CR16L
Product SKU |
|
|---|---|
| SSG-6039P-E1CR16L | • ##SuperServer 6039P-E1CR16L (Black) |
Motherboard |
|
|---|---|
| Super X11DPH-T | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors,3 UPI up to 10.4GT/s • Support CPU TDP 70-205W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity | • 16 DIMM slots • Up to 2TB ECC 3DS LRDIMM, 512GB |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C624 chipset |
| SATA | • SAS3 (12Gbps) via Broadcom 3008 AOC • Broadcom 3008 controller |
| Network Controllers |
• Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | • ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| LAN | • 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 4 USB 3.0 ports (rear) • 1 Type A |
| VGA | • 1 VGA port |
| Serial Port / Header | • 1 Fast UART 16550 port / 1 Header |
System Bios |
|
|---|---|
| Bios Type | • 256Mb AMI UEFI |
Management |
|
|---|---|
| Software | • Intel® Node Manager • IPMI 2.0 • NMI • SPM, SUM • SuperDoctor® 5 • Watchdog |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
| FAN | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | • 3U Rackmount |
| Model | • CSE-836BE1C-R1K23B |
Dimension & Weight |
|
|---|---|
| Width | • 17.2" (437mm) |
| Height | • 5.2" (132mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • Gross Weight: 79 lbs (35.8 kg) |
| Available Colors | • Black |
Front Panel |
|
|---|---|
| Button | • Power On/Off button • System Reset button |
| LEDs | • Power status LED • Hard drive activity LED • Network activity LEDs • System Overheat LED • Power fail LED |
Drive Bays |
|
|---|---|
| Hot-Swap | • 16 Hot-swap 3.5" SAS3/SATA3 drive bays |
| Optional | • 2 Optional Onboard NVMe M.2 |
Backplane |
|
|---|---|
| • SAS3 12Gbps single expander backplane, w/ 16x SAS3 3.5" drive slots and 2x mini-SAS HD connectors for JBOD expansion | |
System Cooling |
|
|---|---|
| Fans | • 3 Hot-swap 8cm redundant PWM cooling fans • 2 Hot-swap 8cm rear exhaust PWM fans • Redundant cooling |
Power Supply (76mm Width) |
|
|---|---|
| • 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1000W/1200W |
| Dimension
(W x H x L) |
• 76 x 40 x 336 mm |
| Input | • 100-127Vac / 15-12A / 50-60Hz • 200-240Vac / 8.5-7A / 50-60Hz • 200-240Vdc / 8.5-7A (for CCC only) |
| +12V | • Max: 83A / Min: 0A (100-127Vac) • Max: 100A / Min: 0A (200-240Vac) • Max: 100A / Min: 0A (200-240Vdc) |
| +5Vsb | • Max: 4A / Min: 0A |
| Certification | • Titanium Level |
Operating Environment |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
