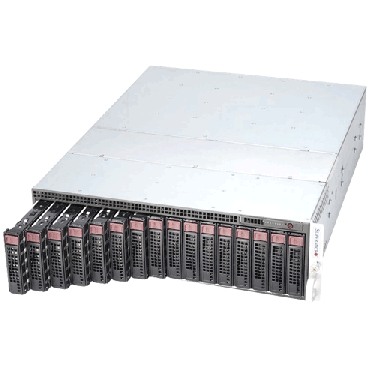

Supermicro SuperServer SYS-5039MS-H8TRF
Product SKU |
|
|---|---|
| SuperServer | • SYS-5039MS-H8TRF (Black) |
Motherboard |
|
|---|---|
| Super X11SSD-F | |
Processor/Cache |
|
|---|---|
| CPU | • Single Socket H4 (LGA 1151) supports: • Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors • CPU TDP up to 80W |
| Note | BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors |
System Memory (per node) |
|
|---|---|
| Memory Capacity | • 4x 288-pin DDR4 DIMM slots • Supports up to 64 GB DDR4 ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 2400MHz/2133MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated UDIMMs |
| DIMM Sizes | • 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
Expansion Slots (per node) |
|
|---|---|
| PCI-Express | • 1 PCI-E 3.0 x8 Low-profile slot • 1 Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional |
Network Devices (per node) |
|
|---|---|
| Micro-LP NIC | • Intel® i350 GbE controller • Dual RJ-45 connectors • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/O Acceleration Technology (I/O AT) • MicroLP Adapter Matrix (Networking options) |
On-Board Devices (per node) |
|
|---|---|
| Chipset | • Intel® C236 chipset |
| SATA | • SATA3 (6Gbps) via C236 controller |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • ASPEED AST2400 BMC |
| Headers | • 1x Type A USB 3.0 |
| Graphics | • ASPEED AST2400 Graphics (BMC with Graphic controller) |
Input/Output (per node) |
|
|---|---|
| SATA | • 2 SATA3 (6Gbps) ports |
| LAN | • 2 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port |
| DOM | • SATA DOM (Disk on Module) power connector support |
| KVM | • 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle) |
System BIOS |
|
|---|---|
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | • DMI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 |
Rear Windows (each node) |
|
|---|---|
| Switch | • Power / UID |
Chassis |
|
|---|---|
| Form Factor | • 3U |
| Model | • CSE-938BH-R1K68B |
Dimension & Weight |
|
|---|---|
| Height | • 5.21" (132.5 mm) |
| Width | • 17.26" (438.4 mm) |
| Depth | • 23.2" (589 mm) |
| Gross Weight | • 88 lbs (39.92 kg) |
| Available Colors | • Black |
Front Panel |
|
|---|---|
| Button | • Power On/Off button |
| LEDs | • Power LED • Node status LED |
Drive Bays (per node) |
|
|---|---|
| Internal | • 2 Hot-swap 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total • Enterprise SATA HDD only recommended |
System Cooling |
|
|---|---|
| Fans | • 4 Heavy duty 8cm fans with optimal cooling zone |
Power Supply (76mm Width) |
|
|---|---|
| • 1600W 1U Redundant Power Supplies with PMBus | |
| CPU | • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
| FAN | • Cooling zone |
| Temperature | • Monitoring for CPU and chassis environment |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
