Details

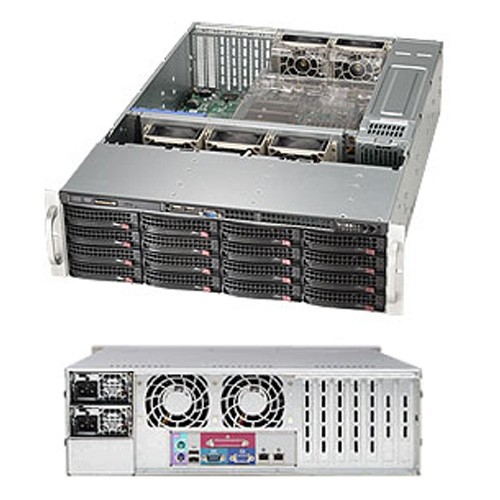

Supermicro 3U SuperChassis CSE-836TQ-R710B
|
Product SKU
| |
|---|---|
| CSE-836TQ-R710B | • SuperChassis 836TQ-R710B |
|
Form Factor
| |
|---|---|
| • 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX | |
| Processor Support
|
|
|---|---|
| • Dual and Single Intel® and AMD processors | |
|
Dimensions
| |
|---|---|
| Height | • 5.2" (132 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 25.5" (647 mm) |
| Gross Weight | • 75 lbs (34.02 kg) |
| Available Color | • Black |
|
Expansion Slots
| • 7 full-height & full-length expansion slot(s) |
|---|
|
Drive Bays
| • 16 x 3.5" hot-swap SAS/SATA drive bay with SES2 |
|---|
|
Backplane
| • 16-port 3U TQ (W/ AMI 9072 SGPIO support) backplane, support up to 16x 3.5-inch SAS/SATA HDD/SSD |
|---|
|
Front Panel
| Buttons | • Power On/Off button • System Reset Button |
Ports | • 1x USB 2.0 Port(s) • 1x Com Port(s) |
LEDs |
• 2 Network Activity LEDs • Fan Fail/System Over Heat LED • HDD activity LED • Power Status LED • Unit Identification (UID) LED |
|---|
|
System Cooling
| |
|---|---|
| Fans | • 3 x 8cm hot-swap redundant PWM cooling fan(s) |
|
System Monitoring
| |
|---|---|
• Chassis intrusion switch |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 710W DC-DC power supply |
|
| Power Efficiency | • 89% |
| Total Output Power and Input |
• 710W with Input -36Vdc to -76Vdc |
| Dimensions (L x W x H) |
• 336 x 76 x 40 mm |
| Output Type | • Backplanes (connector) |
| +12V | • Max: 59A / Min: 0.5A (-36Vdc - -76Vdc) |
| +5Vsb | • Max: 4A / Min: 0A |
| Power Distributor | • PDB-PT825-8824 |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• CCC |
