SuperServer SYS-6034H-X8R / SYS-6034H-X8RB 3U Rackmount

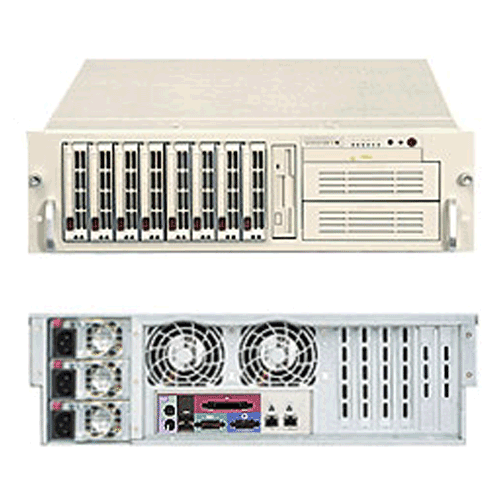

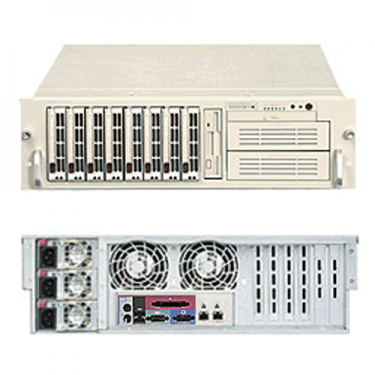

Supermicro SYS-6034H-X8R / SYS-6034H-X8RB 3U Rackmount SuperServer with Triple-Redundant 760W power supply,Intel® E7520 chipset, 8x 3.5"SCA Ultra320/160 Hot-swap
Drives using Supermicro Super X6DH8-XG2 Server Motherboard and SC833S-R760 Server chassis.
Drives using Supermicro Super X6DH8-XG2 Server Motherboard and SC833S-R760 Server chassis.
Product SKU |
|
|---|---|
| SYS-6034H-X8R | • SuperServer 6034H-X8R (Beige) |
| SYS-6034H-X8RB | • SuperServer 6034H-X8RB (Black) |
Motherboard |
|
|---|---|
| Super X6DH8-XG2 | |
Processor/Cache |
|
|---|---|
| CPU | • Dual 604-pin FC-mPGA4 Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz • Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz • Xeon LV (Low Voltage) CPU, up to 2.8 GHz |
| System Bus | • 800 MHz system bus |
| OS Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems • OS Compatibility Chart |
System Memory |
|
|---|---|
| Memory Capacity | • Eight 240-pin DIMM sockets • Supports up to 16 GB DDR2-400 memory • Dual channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
| Memory Type | • DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Size | • 256 MB, 512 MB, 1GB, 2GB |
| Memory Voltage | • 1.8V only |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® E7520 chipset • MCH + ICH5R + PXH +82546GB |
| SCSI | • Adaptec AIC-7902 Controller |
| RAID | • Support for Zero-Channel RAID |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 (Optional: AOC-IPMI20-E) |
| Network Controllers | • Intel® 82546GB Dual Port Gigabit Controller |
| Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
| Super I/O | • National 87427 chip |
Input/Output |
|
|---|---|
| Serial ATA | • Two Serial ATA ports • Two SATA hard drives supported |
| IDE | • Dual EIDE channels support up to four UDMA IDE devices |
| Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB |
| LAN | • 2x RJ45 LAN port |
| USB | • 2x USB rear ports • 3x USB internal headers • Total 5 USB 2.0 Compliant / 1.1 Compliant |
| VGA | • 1x VGA Port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Port | • 2 Fast UART 16550 serial ports |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP) |
Chassis |
|
|---|---|
| Form Factor | • 3U Rackmount |
| Model | • SC833S-R760 |
Dimension and Weight |
|
|---|---|
| Height | • 5.2" (132mm) |
| Width | • 17.7" (450mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 74.5 lbs (33.8kg) |
| Available Color | • Beige,Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button • Mute button |
| LED |
• Power LED • Hard drive activity LED • 2x Network activity LED • System Overheat LED • Power Fail LED |
| Ports | • 2x USB Ports (optional) |
Expansion Slot |
|
|---|---|
| PCI-Express | • 1 (x8) on a (x16) slot |
| PCI-X |
• 3x 64-bit 133MHz PCI-X (3.3V) slot • 3x 64-bit 133MHz PCI-X (3.3V) slot 2x 64-bit 100MHz PCI-X (3.3V) slots |
Drive Bays |
|
|---|---|
| Hot-swap | • 8x 3.5"SCA Ultra320/160 Hot-swap Drives |
| Peripheral Bay(s) | • 3x 5.25" Peripheral Drive Bay • 1x 5.25" Bay For Floppy Drive |
Peripheral Drives |
|
|---|---|
| Floppy | • TEAC 3.5" 1.44MB Floppy Drive (beige / black) |
SCSI Backplane |
|
|---|---|
| • Single Channel SCSI Backplane w/ SAF-TE | |
System Cooling |
|
|---|---|
| Fans |
• 4x 5000 RPM Hot-swappable Cooling Fans • 2x 5000 RPM Rear Exhaust Fan |
Power Suplly |
|
|---|---|
| 760W Triple-redundant AC power supply w/ PFC [ 24-pin, (4-pin, 8-pin) = 12V ] | |
| AC Voltage | • 100 - 240V, 50/60Hz, 14 Amp |
| DC Output | • 5V + 3.3V ≤ 200W |
| +5V | • 36.0 Amp |
| +5V standby | • 3.5 Amp |
| +12V1 | • 18.0 Amp |
| +12V2 | • 18.0 Amp |
| +12V3 | • 19.0 Amp |
| +12V4 | • 19.0 Amp |
| -12V | • 1.0 AAmp |
| +3.3V | • 36.0 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +3.3V, +5V, ±12V, +1.2V • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.83V-0.63V • Adjustable CPU clock frequency ratio settings (via BIOS) |
| FAN | • Total of four 4-pin and four 3-pin fan headers |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor 2 support |
| LED | • CPU / System Overheat LED • System Overheat LED • Suspend-state indicator LED |
| Other Features | • Chassis intrusion detection
|
