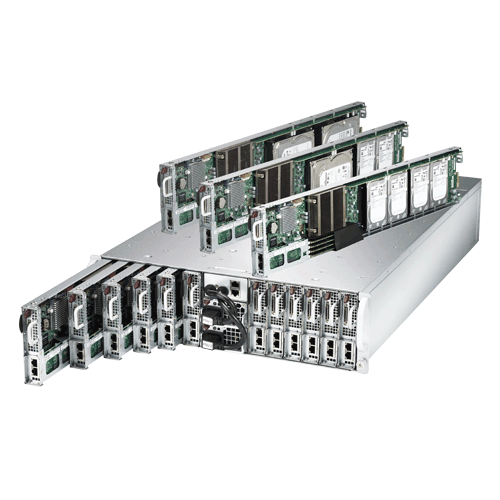

Supermicro SYS-5039MS-H12TRF 3U SuperServer
Supermicro SYS-5039MS-H12TRF 3U SuperServer with 2x 3.5" SATA3 or 4x 2.5" SATA3 or 2x 2.5" NVMe + 2x 2.5" SATA3 or 2x 2.5" NVMe + 1x 3.5" SATA3, and 2000W
Redundant power supplies.
Redundant power supplies.
Product SKU |
|
|---|---|
| SuperServer | • SYS-5039MS-H12TRF (Black) |
Motherboard |
|
|---|---|
| MBD-X11SSE-F | |
Processor / Cache |
|
|---|---|
| CPU |
• Single Socket H4 (LGA 1151) supports: • Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors • CPU TDP up to 80W |
System Memory (per node) |
|
|---|---|
| Memory Capacity | • 4x 288-pin DDR4 DIMM slots • Supports up to 64 GB DDR4 VLP ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 2133MHz ECC DDR4 (VLP) SDRAM 72-bit, 288-pin gold-plated UDIMMs |
| DIMM Size | • 16GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On Board Devices (per node) |
|
|---|---|
| Chipset | • Intel® C236 chipset |
| SATA | • SATA3 (6Gbps) via C236 controller |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • ASPEED AST2400 BMC |
| Headers | • 1x Type A USB 3.0 |
| Graphics | • ASPEED AST2400 Graphics (BMC with Graphic controller) |
Network Devices (per node) |
|
|---|---|
| Micro-LP NIC | • Intel® i350 GbE controller • Dual RJ-45 connectors • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/O Acceleration Technology (I/O AT) • MicroLP Adapter Matrix (Networking options) |
Input / Output (per node) |
|
|---|---|
| SATA | • 2x SATA3 (6Gbps) ports |
| LAN | • 2x RJ45 Gigabit Ethernet LAN ports |
| DOM | • SATA DOM (Disk on Module) power connector support |
| KVM | • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle) |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • DMI 2.3 |

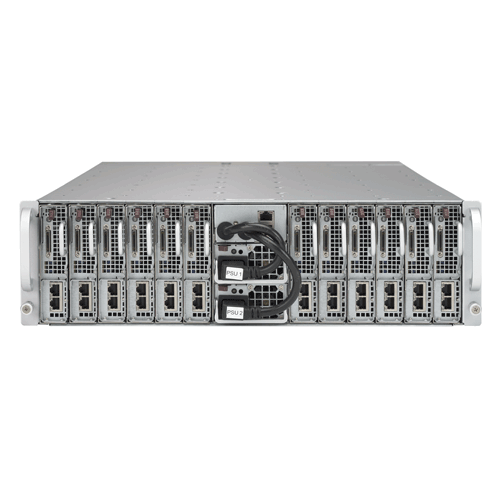

Front Window (each node) |
|
|---|---|
| Switch | • Power / UID |
Chassis |
|
|---|---|
| Form Factor | • 3U |
| Model | • CSE-939HS-R2K04B |
Dimension and Weight |
|
|---|---|
| Height | • 5.21" (132.5 mm) |
| Width | • 17.5" (444.5 mm) |
| Depth | • 29.5" (749.3 mm) |
| Gross Weight | • 125lbs (56.70kg) |
| Available Color | • Black |
Drive Bays (per node) |
|
|---|---|
| Internal |

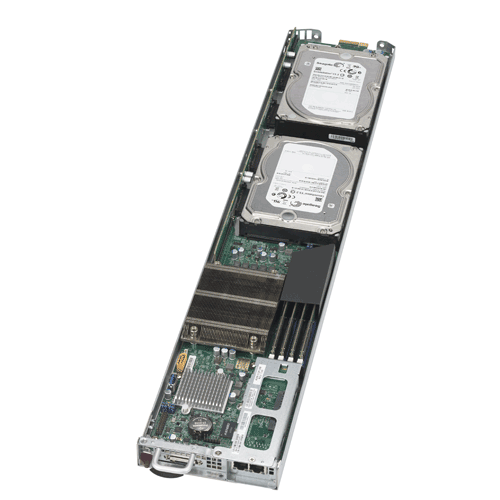

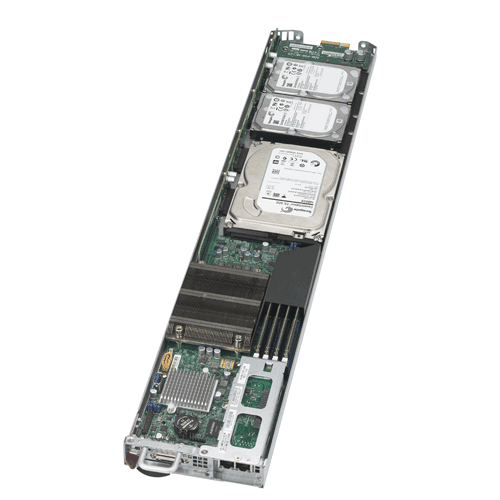

• 2x 3.5" SATA3 OR 4x 2.5" SATA3 HDDs OR 2x 2.5" NVMe + 1x 3.5" SATA3 OR 2x 2.5" NVMe + 2x 2.5" SATA3; up to 48x 2.5" drives total • Enterprise SATA HDD only recommended |
System Cooling |
|
|---|---|

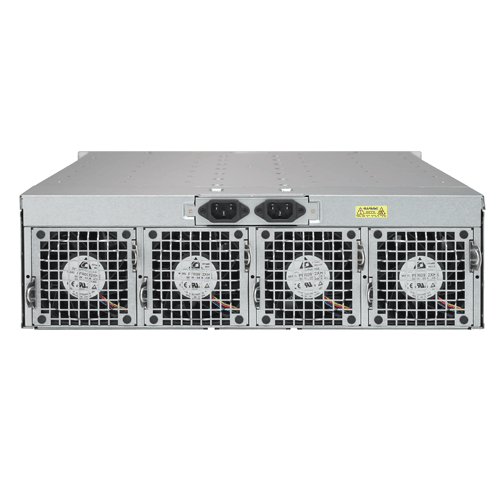

| Fan | • 4x 9cm Heavy duty fans with optimal cooling zone |
Power Supply w/Digital Switching Control |
|
|---|---|
| • 2000W Titanium Level (96%) High-efficiency Redundant Power Supplies | |
| Total Output Power | • 1000W/1800W/1980W/2000W |
| AC Input | • 100-127 V, 50-60 Hz • 200-220 V, 50-60 Hz • 220-230 V, 50-60 Hz • 230-240 V, 50-60 Hz |
| +12V | • Max: 83.3A & Min: 0A (100Vac-127Vac) • Max: 150A & Min: 0A (200Vac-220Vac) • Max: 165A & Min: 0A (220Vac-230Vac) • Max: 166.7A & Min: 0A (230Vac-240Vac) |
| 5V SB | • Max: 1A / Min: 0A |
| Certification | • Titanium Level |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
| Fans | • Cooling zone |
| Temperature | • Monitoring for CPU and chassis environment |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) |
