Details

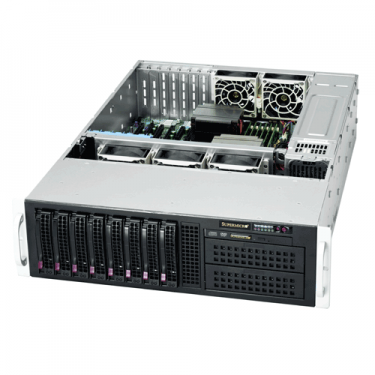

Super X8DT6-F motherboard and CSE-835TQ-R920B Chassis.
Product SKU |
|
|---|---|
| SYS-6036T-6RF | • SuperServer 6036T-6RF (Black) |
Motherboard |
|
|---|---|
| Super X8DT6-F | |
Processor/Cache |
|
|---|---|
| CPU | • Dual 1366-pin LGA Sockets |
| QPI | • up to 6.4 GT/s |
System Memory |
|
|---|---|
| Memory Capacity |
• 12x 240-pin DIMM slots • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory • Memory Mirroring supported |
| Memory Type | • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 1GB, 2GB, 4GB , 8GB , 16GB |
| Memory Voltage | • 1.5 V / 1.35V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® 5520 (Tylersburg) chipset • ICH10R + IOH-36D |
| SAS | • LSI 6Gbps SAS 2008 |
| SATA | • Intel ICH10R SATA 3.0Gbps Controller |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • 2x Intel® 82574L Gigabit Ethernet Controllers |
| Graphics | • Matrox G200eW 16 MB DDR2 |
| Super I/O | • Winbond 83827HF chip |
Expansion Slot |
|
|---|---|
| PCI-Express |
• 3 (x8) PCI-E 2.0 slots • 1 (x4) PCI-E 2.0 slot • 1 (x4) PCI-E slot |
Input/Output |
|
|---|---|
| SAS | • 8x 6Gbps SAS / SATA ports |
| Serial ATA | • Six Serial ATA ports • Six SATA hard drives supported |
| Floppy | • 1 Floppy controller; 1.44 MB |
| LAN | • 2x RJ45 LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 4x USB rear ports • 2x USB on-board (TypeA) • 4x USB internal headers • Total 8 USB 2.0 Compliant |
| VGA | • 1x VGA port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 1 Fast UART 16550 serial port • 1 Fast UART 16550 serial header (Option) |
System Bios |
|
|---|---|
| Bios Type | • 32Mb SPI Flash EEPROM with AMI® BIOS |
| Bios Features | • Plug and Play (PnP) |
Chassis |
|
|---|---|
| Form Factor | • 3U Rackmount |
| Model | • CSE-835TQ-R920B |
Dimension and Weight |
|
|---|---|
| Height | • 5.2" (132mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Weight | • 77 lbs (34.1kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED |
Drive Bays |
|
|---|---|
| Hot-swap | • 8x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended |
SAS / SATA Backplane |
|
|---|---|
| • 1x 2U SAS / SATA Backplane with Enclosure Management | |
System Cooling |
|
|---|---|
| Fans | • 3x 80mm Hot-swap PWM Fans • 2x 80mm Rear-exhaust PWM Fans |
Power Supply with Power Distributor |
|
|---|---|
| 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output | • 4 Amp @ +5V standby • 75 Amp @ +12V |
| With Power Distributor |
• +5V: 30 Amp • +3.3V: 24 Amp • -12V: 0.6 Amp |
| Cerification | • Platinum Certified |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
| FAN | • Total of eight fan headers supporting up to 8 fans • Eight 4-pin fan headers • 8x fans with tachometer status monitoring • Support 3-pin fans (w/o speed control) • Low noise fan speed control |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI |
| Other Feature | • Chassis intrusion detection |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature: 10°to 35°C (50°to 95°F)
|
