Details

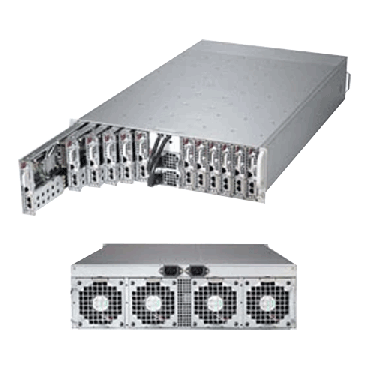

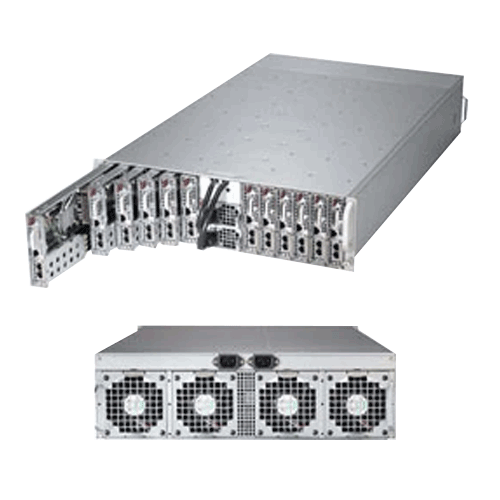

Supermicro 3U Rackmount A+ AMD Opteron AS-3012MA-H12TRF
|
Product SKU
| |
|---|---|
| AS-3012MA-H12TRF | • A+ Server 3012MA-H12TRF |
|
Motherboard (per node)
| |
|---|---|
| • Super H8SME-F | |
| Processor/Chipset (per node)
|
|
|---|---|
| CPU | • Single 942-pin Socket AM3+ • Supports up to Single 8/4-Core ready AMD Opteron™ 3000 Series processor • HT3.0 Link support |
| Chipset | • AMD chipset SR5650/SP5100 |
|
System Memory (per node)
| |
|---|---|
| Memory Capacity | • Supports up to 32GB Unbuffered ECC/non-ECC VLP DDR3 1600/1333/1066 SDRAM in 4 DIMMs • Single or Dual (recommended) channel memory |
| Memory Type | • VLP DDR3 1600/1333/1066MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5V, 1.35V |
|
On-Board Devices (per node)
| SATA | • AMD SP5100 RAID 0, 1, 10 (optional for 2.5"drive kit required) | IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • Winbond® WPCM450 BMC |
|---|---|
| VGA | • Matrox G200eW 16MB DDR2 graphics |
| Super I/O |
• Winbond® W83527HG chip |
|
Network Devices (per node)
| Micro-LP NIC | • Intel® i350 GbE controller • Dual RJ-45 connectors • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/O Acceleration Technology (I/O AT) • MicroLP Adapter Matrix (Networking options) |
|---|
|
Input/Output (per node)
| SATA | • 4x SATA2.0 (3Gb/s) Ports | LAN | • 2 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port |
|---|---|
| USB | • 2x USB 2.0 via KVM connector |
| VGA | • VGA port via KVM connector |
| Serial Ports | • 1 Fast UART 16550 serial port via KVM connector |
|
System BIOS (per node)
| |
|---|---|
| BIOS Type | • 16Mb SPI Flash ROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 3U Rackmount |
| Model | • CSE-939H-R1K63B |
|
Dimension and Weight
| |
|---|---|
| Height | • 5.21" (132.5 mm) |
| Width | • 17.5" (444.5 mm) |
| Depth | • 29.5" (749.3 mm) |
| Gross Weight | • 125 lbs (56.70 kg) |
| Available Colors | • Black |
|
Drive Bays (per node)
| |
|---|---|
| Hot-swap | • 2x 3.5" SATA2 HDDs OR 4x 2.5" SATA2 ( optional kit required) |
|
System Cooling
| |
|---|---|
| Fans | • 4x 9 cm heavy duty fans with optimal fan speed control |
|
Power Supply
| |
|---|---|
| 1620W high-efficiency redundant power supply w/ PMBus | |
| AC Input | • 1000W Output @ 100-120V, 12-10A, 50-60Hz • 1200W Output @ 120-140V, 12-10A, 50-60Hz • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz |
| DC Output |
• 1000W: +12V/84A; +5Vsb/4A • 1200W: +12V/100A; +5Vsb/4A • 1620W: +12V/135A; +5Vsb/4A |
| Certification | • 80Plus Platinum Level |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ?2V, +3.3V Standby, -12V Standby, VBAT, HT, memory, chipset |
| FAN | • Cooling zone |
| Temperature | • Monitoring for CPU and chassis environment |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 30°C (50°F to 86°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
