Details

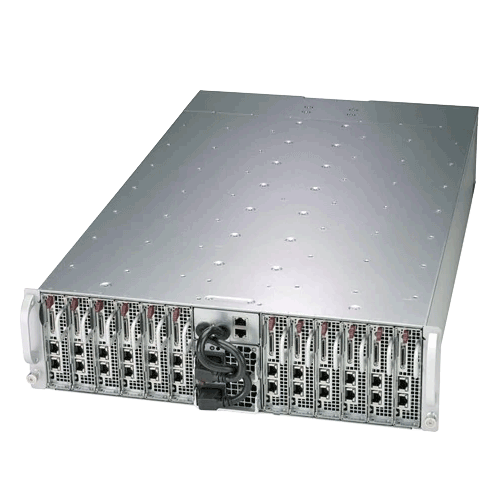

Supermicro 3U MicroCloud SuperServer SYS-5039MA8-H12RFT
|
Product SKU
| |
|---|---|
| SuperServer | • SYS-5039MA8-H12RFT (Black) |
|
Motherboard
| |
|---|---|
| • Super A2SD1-3750F | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Atom® Processor C3750 • Single Socket FCBGA1310 supported, CPU TDP support 21W |
| Cores/Cache | • 8 cores, 8 threads / 16MB cache |
| System Memory (per node)
|
|
|---|---|
| Memory Capacity | • 4x 288-pin DDR4 DIMM slots • Up to 128GB DDR4 VLP Registered ECC memory (RDIMM) in 4 DIMM slots • Up to 64GB DDR4 VLP ECC Un-Buffered memory (UDIMM) in 4 DIMM slots |
| Memory Type | • 2400MHz/2133MHz ECC DDR4 (VLP) SDRAM 72-bit, 288-pin gold-plated UDIMMs |
| DIMM Sizes | • 8GB, 16GB, 32GB |
| Memory Voltage | • 1.2V, 1.35V |
| On-Board Devices (per node)
|
Chipset | • Intel® C3000 chipset |
|---|---|
| SATA | • SATA3 (6Gbps) via SoC |
| Graphics | • ASPEED AST2400 BMC |
| Input/Output (per node)
|
SATA | • 4 SATA3 (6Gbps) ports | LAN | • 2 RJ45 10GBase-T ports |
|---|---|
| Video | • 1 VGA port |
|
System BIOS
| |
|---|---|
| BIOS Type |
• 128Mb SPI Flash EEPROM with AMI BIOS |
|
Front Window (each node)
| |
|---|---|
| Switch |
• Power / UID |
|
Chassis
| |
|---|---|
| Form Factor | • 3U |
| Model | • CSE-939HE-R2K04BP |
|
Dimension and Weight
| |
|---|---|
| Height | • 5.21" (132.5 mm) |
| Width | • 17.5" (444.5 mm) |
| Depth | • 29.5" (749.3 mm) |
| Gross Weight | • 125lbs (56.70kg) |
| Available Colors | • Black |
|

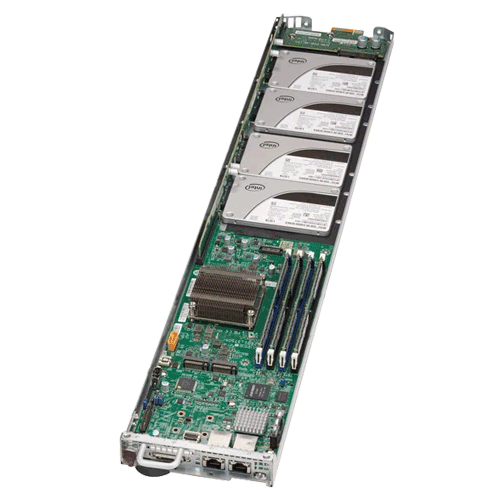

Drive Bays (per node)
| |
|---|---|
| Internal | • 2x 3.5" SATA3 OR 4x 2.5" SATA3 HDDs OR 2x 2.5" NVMe + 2x 3.5" SATA3 OR 2x 2.5" NVMe + 1x 3.5" SATA3; up to 48x 2.5" drives total |
|

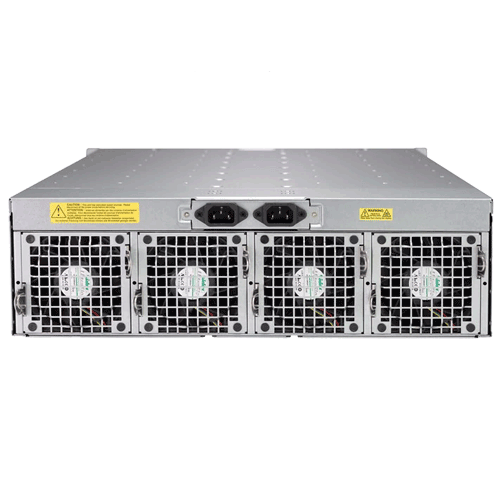

System Cooling
| |
|---|---|
| Fans | • 4 Heavy duty 9cm fans with optimal cooling zone |
|
Power Supply (76mm Width)
| |
|---|---|
| 2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow | |
| Total Output Power | • 1000W/1800W/1980W/2000W |
| Dimension
(W x H x L) |
• 76 x 40 x 336 mm |
| Input | • 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only) |
| +12V | • Max: 83.3A / Min: 0A (100Vac-127Vac) • Max: 150A / Min: 0A (200Vac-220Vac) • Max: 165A / Min: 0A (220Vac-230Vac) • Max: 166.7A / Min: 0A (230Vac-240Vac) • Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only) |
| +5Vsb | • Max: 1A / Min: 0A |
| Output Type | • 27 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
|
PC Health Monitoring
| |
|---|---|
| Voltage | • +1.8V, +12V, +3.3V, +5V, +5V standby, HT, Memory, VBAT |
| Temperature | • CPU thermal trip support |
| Other Features | • RoHS, UID |
|
Operating Environment/Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
