Details

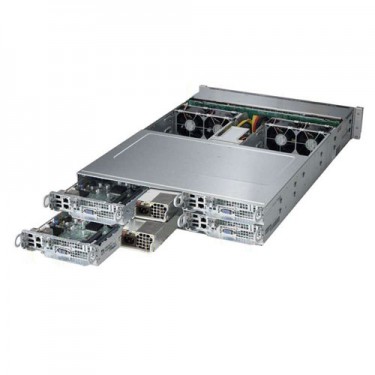

Supermicro Super X10DRT-P Server motherboard and CSE-827HQ+-R2K04B 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-6028TP-HTR | • SuperServer 6028TP-HTR (Black) |
Motherboard |
|
|---|---|
| Super X10DRT-P | |
Processor/Cache (per node) |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required |
* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
System Memory (per node) |
|
|---|---|
| Memory Capacity |
• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type |
• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | • Intel® i350-AM2 Dual Port Gigabit Ethernet |
| Graphics | • ASPEED AST2400 BMC |
Input/Output (per node) |
|
|---|---|
| SATA | • 3x SATA3 (6Gbps) ports |
| LAN | • 2x RJ45 Gigabit Ethernet LAN ports |
| USB | • 2x USB 3.0 ports (rear) |
| Video | • 1x VGA port |
| Serial/Header Port | • 1x Fast UART 16550 port / 1 Header (internal) |
| Others | • 1x SATADOM support on the motherboard
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-827HQ+-R2K04B |
Dimension and Weight |
|
|---|---|
| Height | • 3.47" (88mm) |
| Width | • 17.25" (438mm) |
| Depth | • 30.5" (774mm) |
| Gross Weight | • 90 lbs (40.9kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button |
| LEDs | • Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots (per ode) |
|
|---|---|
| PCI-E |
• 1x PCI-E 3.0 x16 Low-profile slot (Both CPUs need to be installed for full access to PCI-E slots and 0 slot.) |
Drive Bays (per node) |
|
|---|---|
| Hot-swap |
• 3x 3.5" Hot-swap SATA HDD trays |
System Cooling |
|
|---|---|
| Fans |
• 4x 8cm heavy duty PWM fans with optimal fan speed control |
Power Supply (76mm Width) |
|
|---|---|
| 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1000W/2000W |
| Dimension
(W x H x L) |
• 76 x 40.4 x 336 mm |
| Input | • 100-127 Vac / 12-9.5 A / 50-60 Hz • 200-220 Vac / 10-9.5 A / 50-60 Hz • 220-230 Vac / 10-9.8 A / 50-60 Hz • 230-240 Vac / 10-9.8 A / 50-60 Hz • 200-240 Vac / 11.8-10 A / 50-60 Hz (UL/cUL only) |
| +12V | • Max: 83.3A & Min: 0A (100-127 Vac) • Max: 150A & Min: 0A (200-220 Vac) • Max: 165A & Min: 0A (220-230 Vac) • Max: 166.7A & Min: 0A (230-240 Vac) • Max: 166.7A & Min: 0A (200-240 Vac)(UL/cUL only) |
| +5Vsb | • Max: 1A / Min: 0A |
| Output Type | • 27 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
System Bios |
|
|---|---|
| Bios Type |
• 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) |
